shaperlighting.com

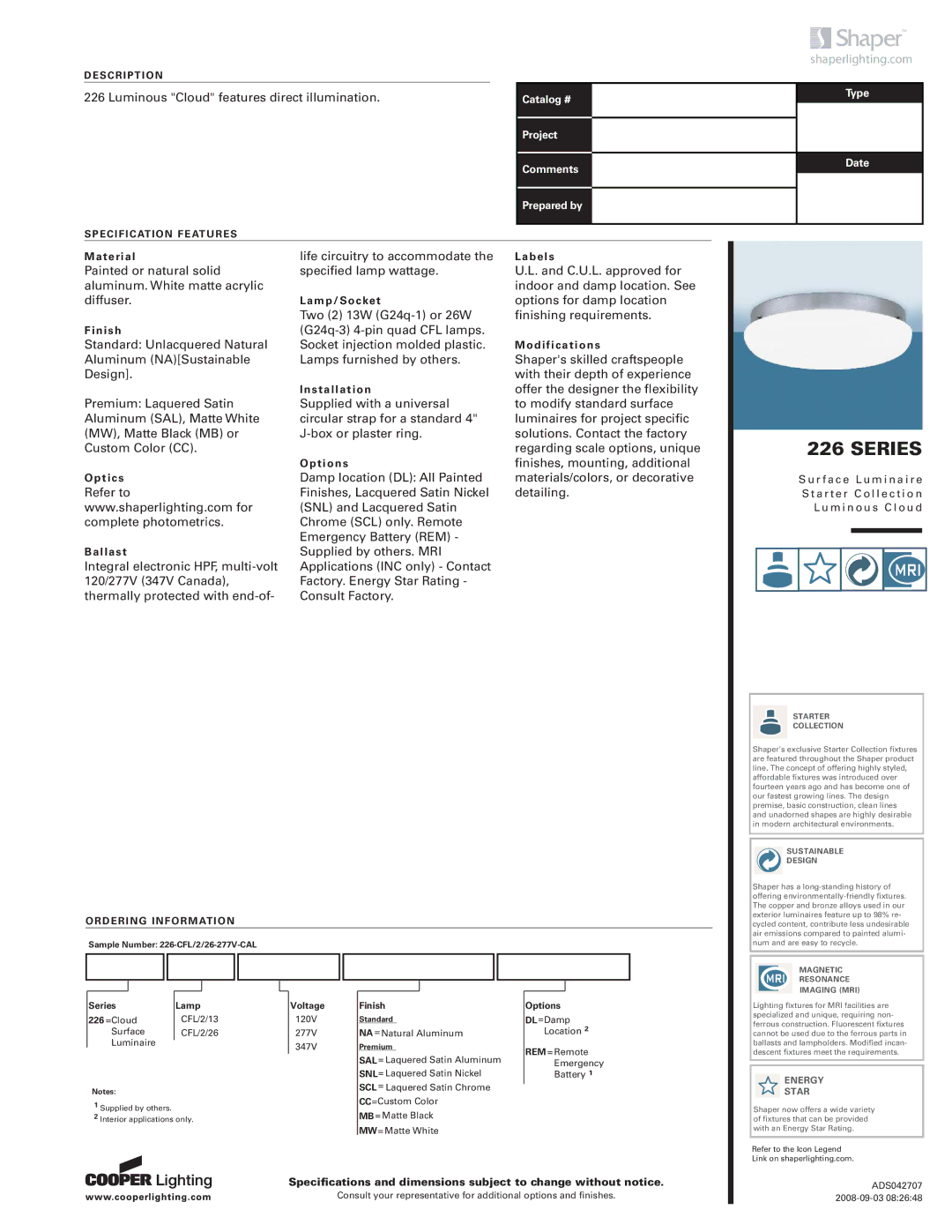

DESCRIPTION

226 Luminous "Cloud" features direct illumination.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or natural solid aluminum. White matte acrylic diffuser.

Finish

Standard: Unlacquered Natural

Aluminum (NA)[Sustainable

Design].

Premium: Laquered Satin Aluminum (SAL), Matte White (MW), Matte Black (MB) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-

life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

Two (2) 13W (G24q-1) or 26W (G24q-3) 4-pin quad CFL lamps. Socket injection molded plastic. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Damp location (DL): All Painted Finishes, Lacquered Satin Nickel (SNL) and Lacquered Satin Chrome (SCL) only. Remote Emergency Battery (REM) - Supplied by others. MRI Applications (INC only) - Contact Factory. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

226 SERIES

S u r f a c e L u m i n a i r e

S t a r t e r C o l l e c t i o n

L u m i n o u s C l o u d

STARTER

COLLECTION

Shaper’s exclusive Starter Collection fixtures are featured throughout the Shaper product line. The concept of offering highly styled, affordable fixtures was introduced over fourteen years ago and has become one of our fastest growing lines. The design premise, basic construction, clean lines and unadorned shapes are highly desirable in modern architectural environments.

SUSTAINABLE

DESIGN

ORDERING INFORMATION

Sample Number: 226-CFL/2/26-277V-CAL

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Series

Lamp

226 =Cloud

CFL/2/13

Surface

CFL/2/26

Luminaire



Notes:

1Supplied by others.

2Interior applications only.

Voltage

120V

277V

347V

Finish

Standard

NA = Natural Aluminum

Premium

SAL= Laquered Satin Aluminum

SNL= Laquered Satin Nickel

SCL = Laquered Satin Chrome

CC=Custom Color

MB= Matte Black

MW= Matte White

Options

DL=Damp Location 2

REM= Remote

Emergency

Battery 1

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042707 2008-09-03 08:26:48
