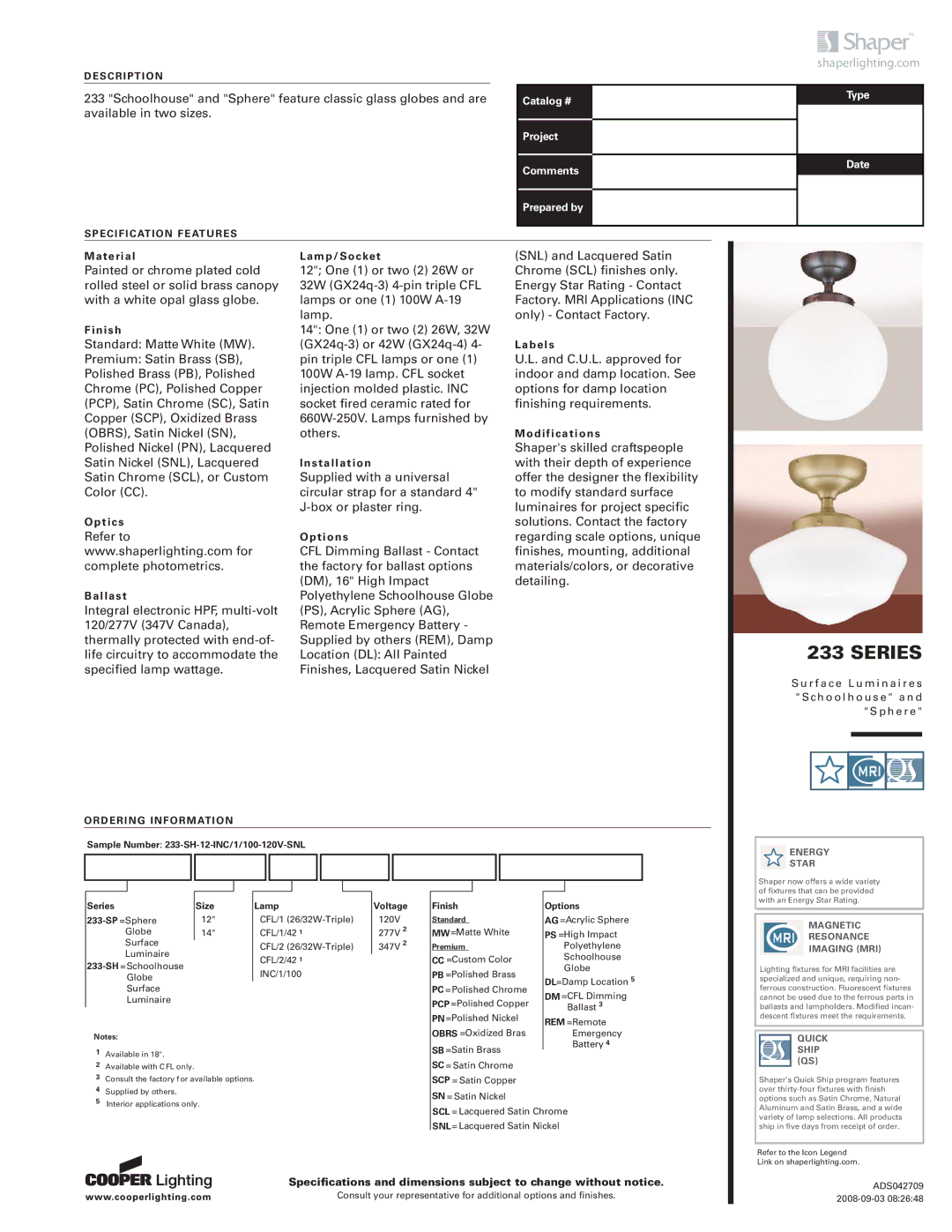

Cooper Lighting 233 SERIES specifications Series

DESCRIPTION

233 "Schoolhouse" and "Sphere" feature classic glass globes and are available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or chrome plated cold rolled steel or solid brass canopy with a white opal glass globe.

Finish

Standard: Matte White (MW).

Premium: Satin Brass (SB), Polished Brass (PB), Polished Chrome (PC), Polished Copper (PCP), Satin Chrome (SC), Satin Copper (SCP), Oxidized Brass (OBRS), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Nickel (SNL), Lacquered Satin Chrome (SCL), or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

12"; One (1) or two (2) 26W or 32W (GX24q-3) 4-pin triple CFL lamps or one (1) 100W A-19 lamp.

14": One (1) or two (2) 26W, 32W (GX24q-3) or 42W (GX24q-4) 4- pin triple CFL lamps or one (1) 100W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

CFL Dimming Ballast - Contact the factory for ballast options (DM), 16" High Impact Polyethylene Schoolhouse Globe (PS), Acrylic Sphere (AG), Remote Emergency Battery - Supplied by others (REM), Damp Location (DL): All Painted Finishes, Lacquered Satin Nickel

(SNL) and Lacquered Satin Chrome (SCL) finishes only. Energy Star Rating - Contact Factory. MRI Applications (INC only) - Contact Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

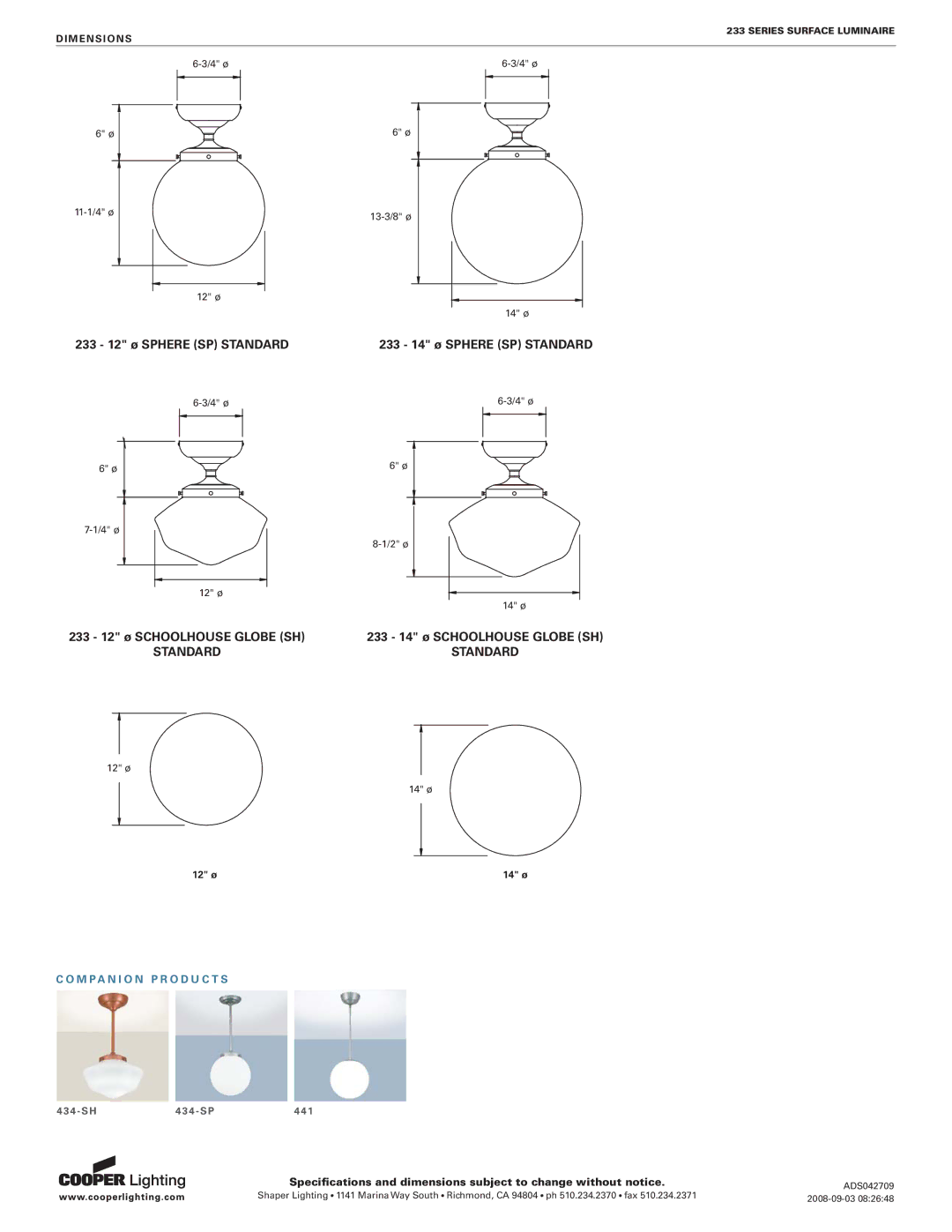

233 SERIES

S u r f a c e L u m i n a i r e s

"S ch o o l h o u s e " a n d

"S p h e r e "

ORDERING INFORMATION

Sample Number: 233-SH-12-INC/1/100-120V-SNL

ENERGY STAR

Series	Size	Lamp	Voltage
233-SP =Sphere	12"	CFL/1 (26/32W-Triple)	120V
Globe	14"	CFL/1/42 1	277V 2
Surface		CFL/2 (26/32W-Triple)	347V 2
Luminaire		CFL/2/42 1
233-SH=Schoolhouse
		INC/1/100
Globe
Surface
Luminaire

Notes:

1Available in 18".

2Available with CFL only.

3Consult the factory for available options.

4Supplied by others.

5Interior applications only.

Finish
	Options
Standard	AG =Acrylic Sphere
MW=Matte White
	PS =High Impact
Premium	Polyethylene
CC =Custom Color	Schoolhouse
PB =Polished Brass	Globe
	DL=Damp Location 5
PC = Polished Chrome
	DM =CFL Dimming
PCP =Polished Copper
		Ballast 3
PN=Polished Nickel	REM =Remote
OBRS =Oxidized Bras		Emergency
SB =Satin Brass		Battery 4
SC = Satin Chrome
SCP = Satin Copper

SN = Satin Nickel

SCL = Lacquered Satin Chrome

SNL= Lacquered Satin Nickel

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass, and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
