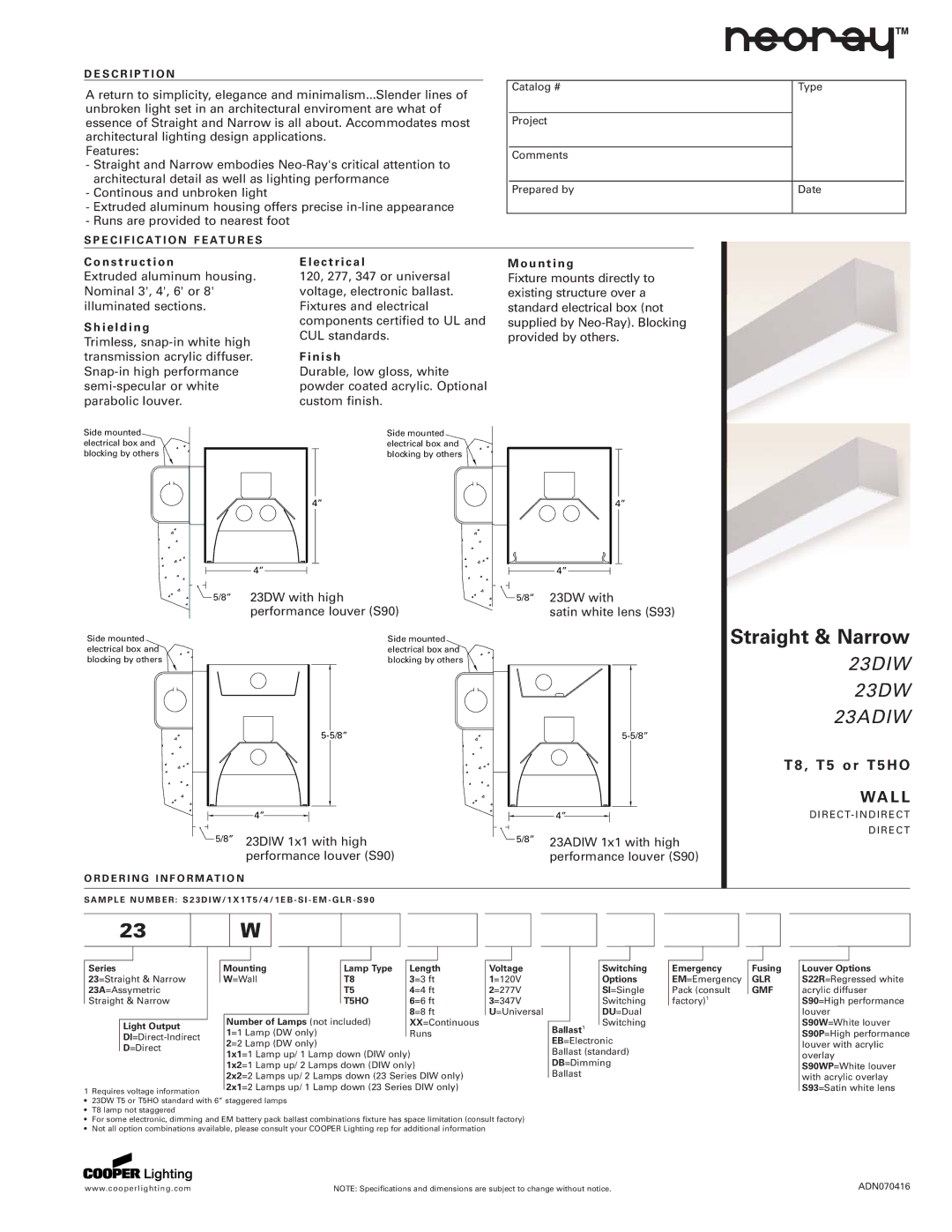

D E S C R I P T I O N
A return to simplicity, elegance and minimalism...Slender lines of unbroken light set in an architectural enviroment are what of essence of Straight and Narrow is all about. Accommodates most architectural lighting design applications.
Features:
-Straight and Narrow embodies
-Continous and unbroken light
-Extruded aluminum housing offers precise
-Runs are provided to nearest foot
Catalog #
Project
Comments
Prepared by
Type
Date
S P E C I F I C AT I O N F E AT U R E S
C o n s t r u c t i o n
Extruded aluminum housing. Nominal 3', 4', 6' or 8' illuminated sections.
S h i e l d i n g
Trimless,
E l e c t r i c a l
120, 277, 347 or universal voltage, electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
F i n i s h
Durable, low gloss, white powder coated acrylic. Optional custom finish.
M o u n t i n g
Fixture mounts directly to existing structure over a standard electrical box (not supplied by
Side mounted electrical box and blocking by others
Side mounted electrical box and blocking by others
Side mounted electrical box and blocking by others
4”
4”
5/8” 23DW with high performance louver (S90)
Side mounted electrical box and blocking by others
4”
5/8” 23DIW 1x1 with high performance louver (S90)
4”
4”
5/8” 23DW with
satin white lens (S93)
4”
5/8” 23ADIW 1x1 with high performance louver (S90)

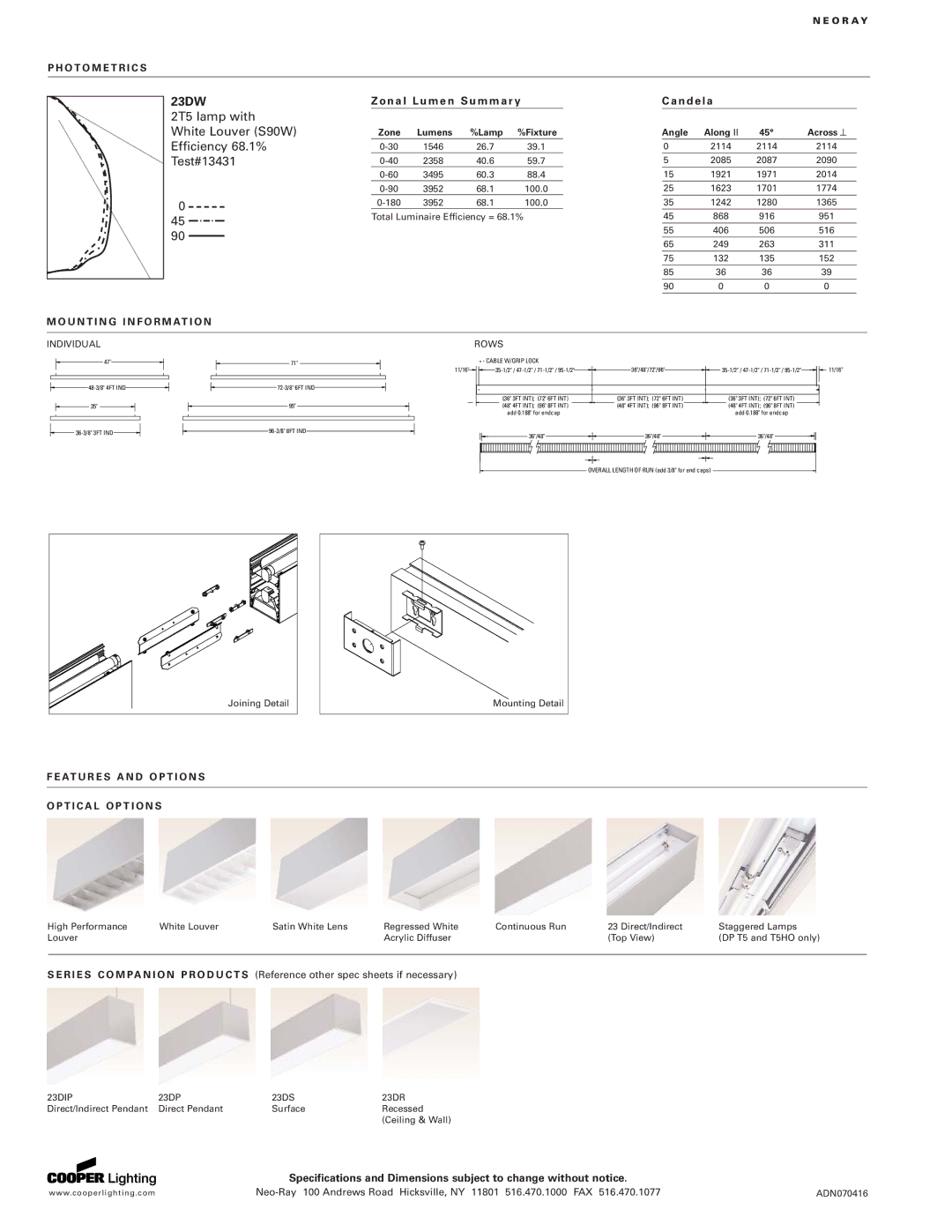

Straight & Narrow
23DIW
23DW
23ADIW
T8, T5 or T5HO
WA L L
D I R E C T- I N D I R E C T
D I R E C T
O R D E R I N G I N F O R M AT I O N
SAMPLE NUMBER: S23DIW/1X1T5/4/1EB - SI - EM - GLR - S90
23
W
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Series |
| Mounting |
| Lamp Type | Length | Voltage | |||||||
23=Straight & Narrow |
| W=Wall |
| T8 | 3=3 ft | 1=120V | |||||||
23A=Assymetric |
|
|
|
|
|
|
| T5 | 4=4 ft | 2=277V | |||
Straight & Narrow |
|
|
|
|
|
|
| T5HO | 6=6 ft | 3=347V | |||
|
|
|
|
|
|
|
|
|
|
| 8=8 ft | U=Universal | |
|
|
|
|
| Number of Lamps (not included) | XX=Continuous |
|
| |||||
| Light Output |
|
| ||||||||||
|
|
| 1=1 Lamp (DW only) |
| Runs |
|
| ||||||
|
|
|
|
|
| ||||||||
|
|
| 2=2 Lamp (DW only) |
|
|
|
| ||||||
| D=Direct |
|
|
|
|
|
| ||||||
|
|
|
|
| 1x1=1 Lamp up/ 1 Lamp down (DIW only) |
|
| ||||||
|
|
|
|
| 1x2=1 Lamp up/ 2 Lamps down (DIW only) |
|
| ||||||
|
|
|
|
| 2x2=2 Lamps up/ 2 Lamps down (23 Series DIW only) |
|
| ||||||
1 Requires voltage information |
|
| 2x1=2 Lamps up/ 1 Lamp down (23 Series DIW only) |
|
| ||||||||
|
|
|
| ||||||||||
|
|
|
|
|
|
|
|
|
|
| |||
•23DW T5 or T5HO standard with 6” staggered lamps
•T8 lamp not staggered
•For some electronic, dimming and EM battery pack ballast combinations fixture has space limitation (consult factory)
•Not all option combinations available, please consult your COOPER Lighting rep for additional information
| Switching | Emergency | Fusing | Louver Options |
| Options | EM=Emergency | GLR | S22R=Regressed white |
| SI=Single | Pack (consult | GMF | acrylic diffuser |
| Switching | factory)1 |
| S90=High performance |
| DU=Dual |
|
| louver |
Ballast1 | Switching |
|
| S90W=White louver |
|
|
| S90P=High performance |
EB=Electronic | louver with acrylic | |
Ballast (standard) | ||
overlay | ||
DB=Dimming | ||
S90WP=White louver | ||
Ballast | ||
with acrylic overlay | ||
| ||
| S93=Satin white lens |
www.cooperlighting.com | NOTE: Specifications and dimensions are subject to change without notice. | ADN070416 |
