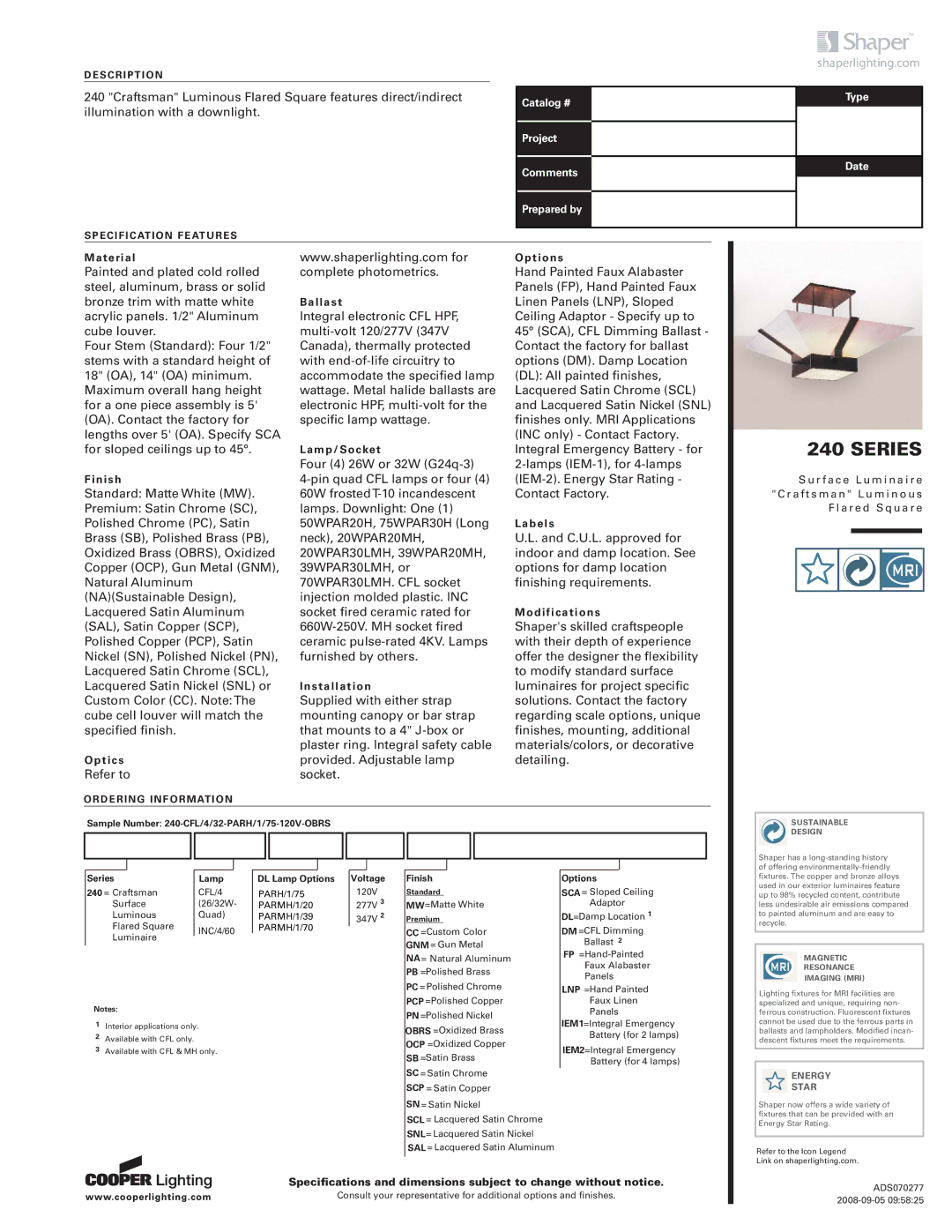

DESCRIPTION

240 "Craftsman" Luminous Flared Square features direct/indirect illumination with a downlight.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted and plated cold rolled steel, aluminum, brass or solid bronze trim with matte white acrylic panels. 1/2" Aluminum cube louver.

Four Stem (Standard): Four 1/2" stems with a standard height of 18" (OA), 14" (OA) minimum.

Maximum overall hang height for a one piece assembly is 5' (OA). Contact the factory for lengths over 5' (OA). Specify SCA for sloped ceilings up to 45°.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS), Oxidized Copper (OCP), Gun Metal (GNM), Natural Aluminum (NA)(Sustainable Design), Lacquered Satin Aluminum (SAL), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC). Note:The cube cell louver will match the specified finish.

Optics

Refer to

ORDERING INFORMATION

www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic CFL HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage. Metal halide ballasts are electronic HPF, multi-volt for the specific lamp wattage.

Lamp/Socket

Four (4) 26W or 32W (G24q-3)

4-pin quad CFL lamps or four (4)

60W frostedT-10 incandescent lamps. Downlight: One (1) 50WPAR20H, 75WPAR30H (Long neck), 20WPAR20MH, 20WPAR30LMH, 39WPAR20MH, 39WPAR30LMH, or 70WPAR30LMH. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. MH socket fired ceramic pulse-rated 4KV. Lamps furnished by others.

Installation

Supplied with either strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided. Adjustable lamp socket.

Options

Hand Painted Faux Alabaster Panels (FP), Hand Painted Faux Linen Panels (LNP), Sloped Ceiling Adaptor - Specify up to 45° (SCA), CFL Dimming Ballast - Contact the factory for ballast options (DM). Damp Location (DL): All painted finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. MRI Applications (INC only) - Contact Factory. Integral Emergency Battery - for 2-lamps (IEM-1), for 4-lamps (IEM-2). Energy Star Rating - Contact Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

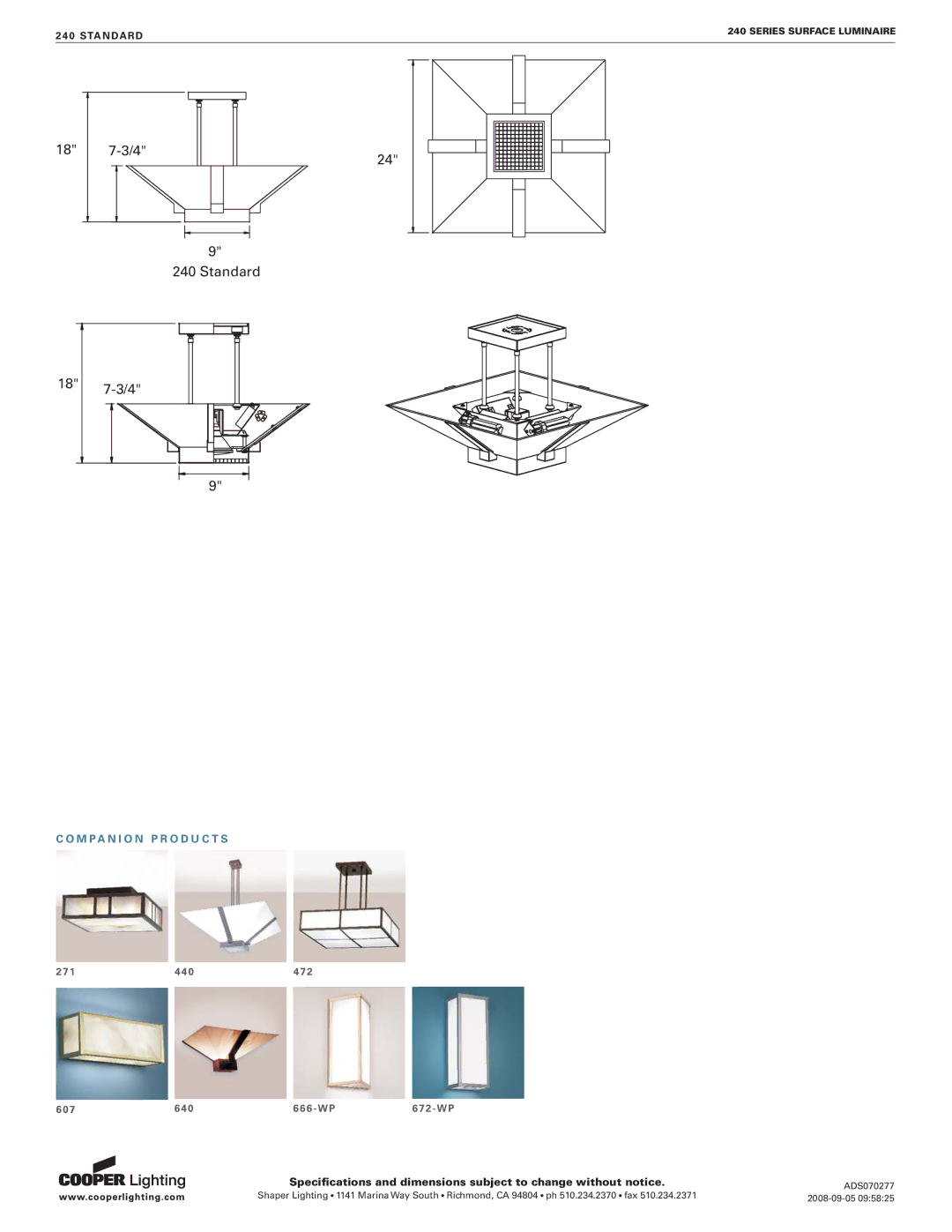

240 SERIES

S u r f a c e L u m i n a i r e " C r a f t s m a n " L u m i n o u s F l a r e d S q u a r e

Sample Number: 240-CFL/4/32-PARH/1/75-120V-OBRS

SUSTAINABLE DESIGN









Series

Lamp

240 = Craftsman

CFL/4

Surface

(26/32W-

Luminous

Quad)

Flared Square

INC/4/60

Luminaire













Notes:

1Interior applications only.

2Available with CFL only.

3Available with CFL & MH only.

DL Lamp Options

PARH/1/75

PARMH/1/20

PARMH/1/39

PARMH/1/70

Voltage

120V

277V 3

347V 2

Finish

Standard

MW=Matte White

Premium

CC=Custom Color GNM = Gun Metal

NA= Natural Aluminum PB =Polished Brass

PC = Polished Chrome

PCP =Polished Copper

PN=Polished Nickel

OBRS =Oxidized Brass

OCP =Oxidized Copper

SB =Satin Brass

SC = Satin Chrome

SCP = Satin Copper

SN = Satin Nickel

SCL = Lacquered Satin Chrome

SNL= Lacquered Satin Nickel

SAL = Lacquered Satin Aluminum

Options

SCA= Sloped Ceiling

Adaptor

DL=Damp Location 1

DM =CFL Dimming

Ballast 2

FP =Hand-Painted

Faux Alabaster

Panels

LNP =Hand Painted

Faux Linen

Panels

IEM1=Integral Emergency

Battery (for 2 lamps)

IEM2=Integral Emergency Battery (for 4 lamps)

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS070277 2008-09-05 09:58:25
