shaperlighting.com

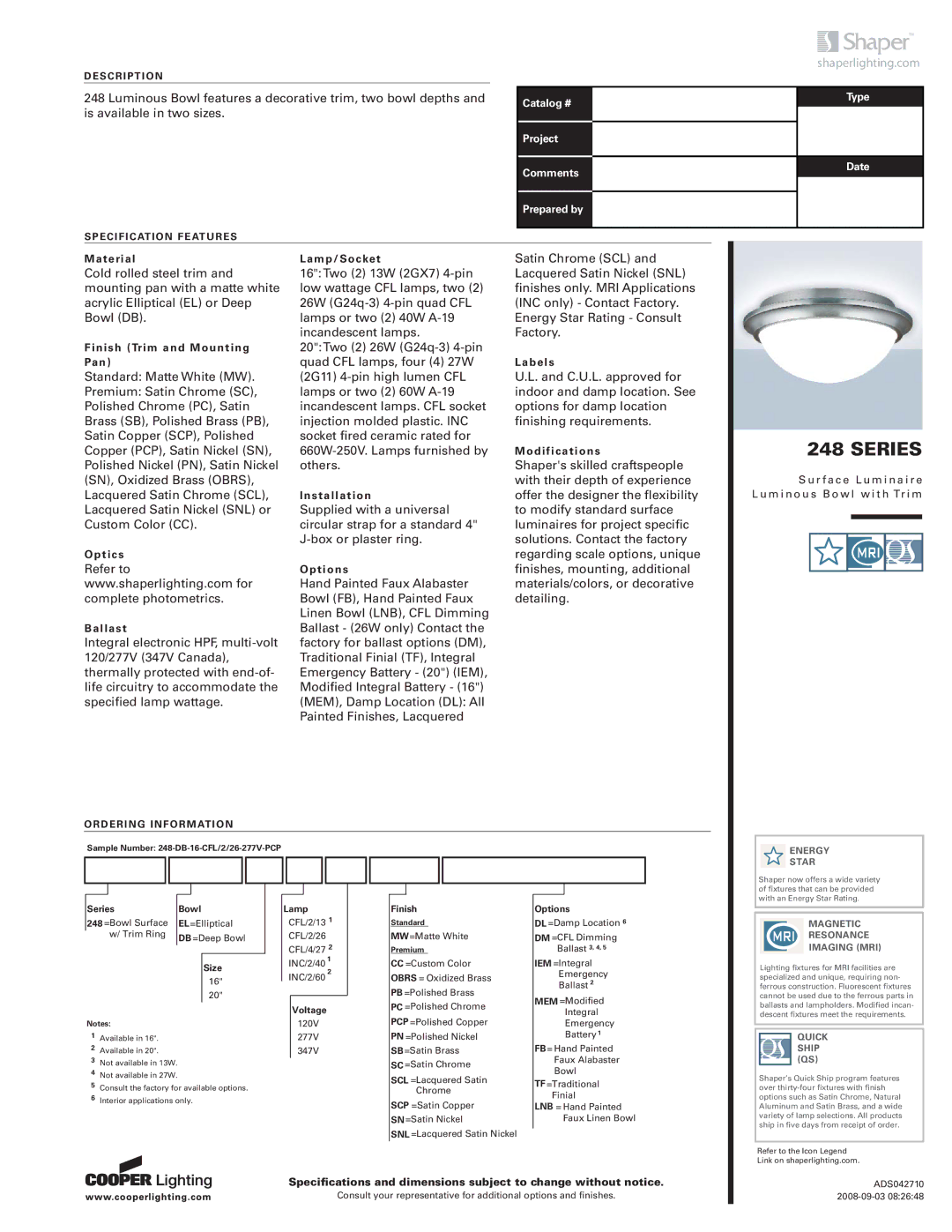

DESCRIPTION

248 Luminous Bowl features a decorative trim, two bowl depths and is available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Cold rolled steel trim and mounting pan with a matte white acrylic Elliptical (EL) or Deep Bowl (DB).

Finish (Trim and Mounting Pan)

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Satin Nickel (SN), Oxidized Brass (OBRS), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

16":Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or two (2) 40W A-19 incandescent lamps.

20":Two (2) 26W (G24q-3) 4-pin quad CFL lamps, four (4) 27W (2G11) 4-pin high lumen CFL lamps or two (2) 60W A-19 incandescent lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Bowl (FB), Hand Painted Faux Linen Bowl (LNB), CFL Dimming Ballast - (26W only) Contact the factory for ballast options (DM), Traditional Finial (TF), Integral Emergency Battery - (20") (IEM), Modified Integral Battery - (16") (MEM), Damp Location (DL): All Painted Finishes, Lacquered

Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. MRI Applications (INC only) - Contact Factory. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

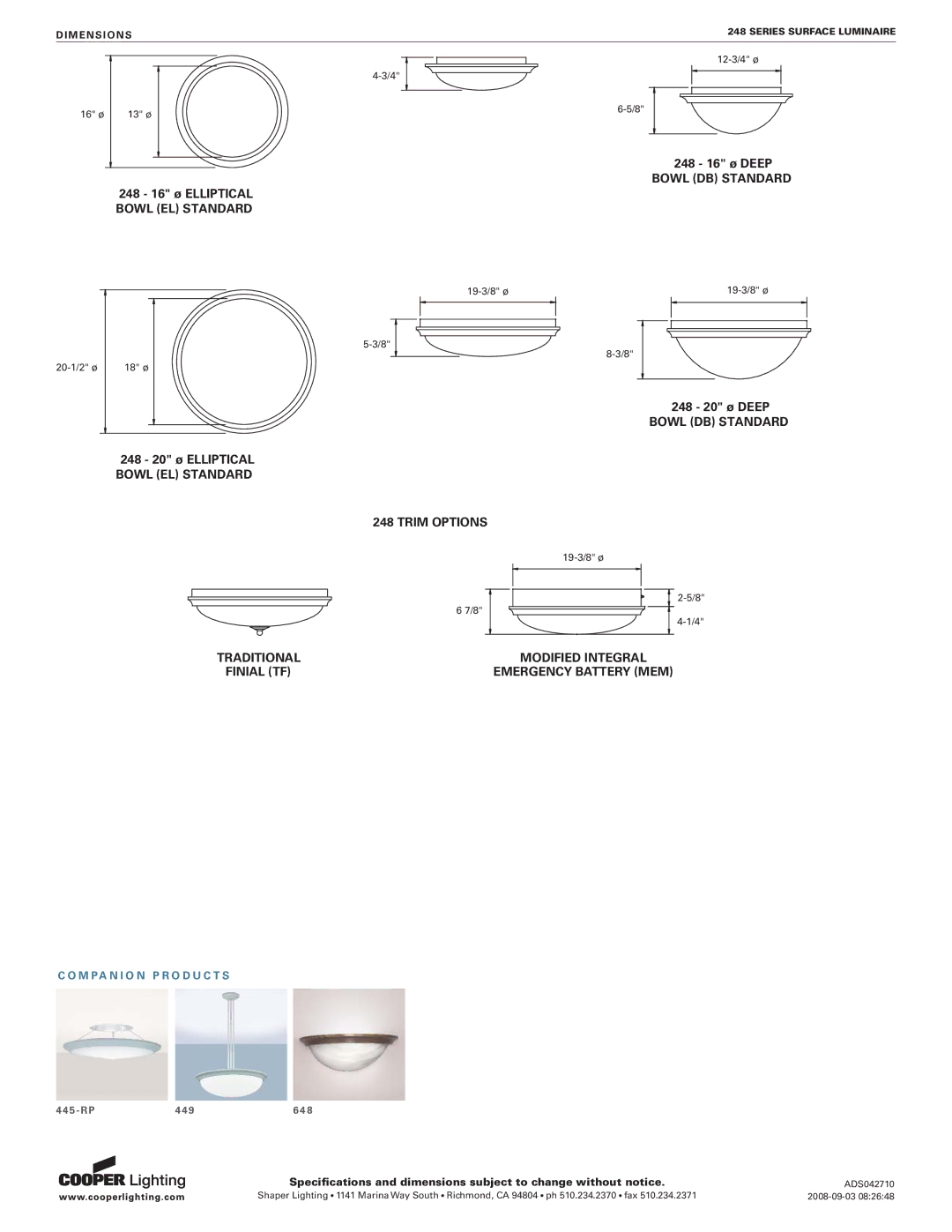

248 SERIES

S u r f a c e L u m i n a i r e L u m i n o u s B o w l w i t h Tr i m

ORDERING INFORMATION

Sample Number: 248-DB-16-CFL/2/26-277V-PCP

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Series

Bowl

248 =Bowl Surface

EL=Elliptical

w/ Trim Ring

DB =Deep Bowl













Size





16"





20"







Notes:

1Available in 16".

2Available in 20".

3Not available in 13W.

4Not available in 27W.

5Consult the factory for available options.

6Interior applications only.

Lamp

CFL/2/13 1 CFL/2/26 CFL/4/27 2 INC/2/40 1 INC/2/60 2

Voltage

120V

277V

347V

Finish

Standard

MW=Matte White

Premium

CC=Custom Color

OBRS = Oxidized Brass

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

DL =Damp Location 6

DM =CFL Dimming

Ballast 3, 4, 5

IEM =Integral

Emergency

Ballast 2

MEM =Modified

Integral

Emergency

Battery 1

FB= Hand Painted

Faux Alabaster

Bowl

TF=Traditional

Finial

LNB = Hand Painted

Faux Linen Bowl

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass, and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
