DESCRIPTION

The EIM Series is an energy efficient family of industrials that feature premium performance and durability. The industrial series incorporates heavy duty, embossed, reflectors that precisely direct and effectively control light. The EIM reflector is a unique design that was developed to prevent debris accumulation in special applications. The versatile EIM Series can be installed using various mounting methods and numerous options and accessories are available.

The EIM Series can be utilized in simple task and area lighting to the most demanding specialized industrial applications with environmental requirements.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

Type

Date

A ... Construction

Channel is code gauge prime cold rolled steel. Die formed with deep V-grooves for tong hanger. Die formed channel connector assures straight rows and continuity of ground through set screws. Lampholder mounting brackets are easily inserted with snap-in action.

B ... Electrical*

Ballast are CBM/ETL Class "P" and positively secured by mounting bolts. Metal clad lampholders are spring loaded for turret safety. UL/CUL listed. Suitable for damp locations.

C ... Finish

Multistage iron phosphate pretreatment ensures maximum bonding and rust inhibitor. Lighting grade, baked white enamel finish.

D ... Reflectors

Painted after fabrication. Die formed code gauge steel. Deep draw full width ribs formed with one press stroke. Side flanges lend strength with downward turn. Reflector design prevents lint, dust and debris buildup. Easily cleaned. Baked white enamel 13" width. Four foot sections. Reflectors secured by positive retaining screw. Reflector aligners provided. Standard with 20% uplight (EIM). Closed top reflector (ECIM). Optional Industrial fixtures are available incorporating silver technology enhancements. (SilverLining)

EIM

396

396T8

496

A B CD

6-3/8" [162mm]

13"

[330mm]

LAMP CONFIGURATIONS



X



X

6-3/8"



6-3/8"



[162mm]



[162mm]



X=4-1/4"

Y Y

X=4-1/4"

Y Y Y

[108mm]

[108mm]





Y=3"

13" [330mm]

Y=2"

13" [330mm]

[76mm]

[51mm]





MOUNTING DATA



11/16" [17mm] x 1 K.O. (2)



7/8" [22mm] K.O. (5)

5/16"

7/32" [6mm] x 3/8" [10mm] K.O. (4)

[8mm]

Ground Screw Bump



4-1/4"

1-1/16"

[108mm]



[27mm]

76" [1930mm]

85-1/4" [2165mm]

89-1/2" [2273mm]

96" [2438mm]

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.

496T8

8' INDUSTRIAL

3 OR 4 LAMP SLIMLINE Environmental Heavy Duty Industrial

E N E R G Y DATA

Input Watts:

EB Ballast & STD Lamps

396(221)

396T8 (180)

496(272)

496T8 (220)

ES Ballast & STD Lamps

496 (316)

STD Ballast & STD Lamps

396(270)

496(360)

Luminaire Efficacy Rating

LER = FI-87

Catalog Number: EIM-396T8

Yearly Cost of 1000 lumens, 3000 hrs at .08 KWH = $2.76

*Reference the lamp/ballast data in the Technical Section for specific lamp/ballast requirements.

LAMPS CONTAIN MERCURY. DISPOSE ACCORDING

TO LOCAL, STATE OR FEDERAL LAWS

Safe and convenient means of

disconnecting power

ADF020742 09/17/2008 4:23:56 PM

Page 1

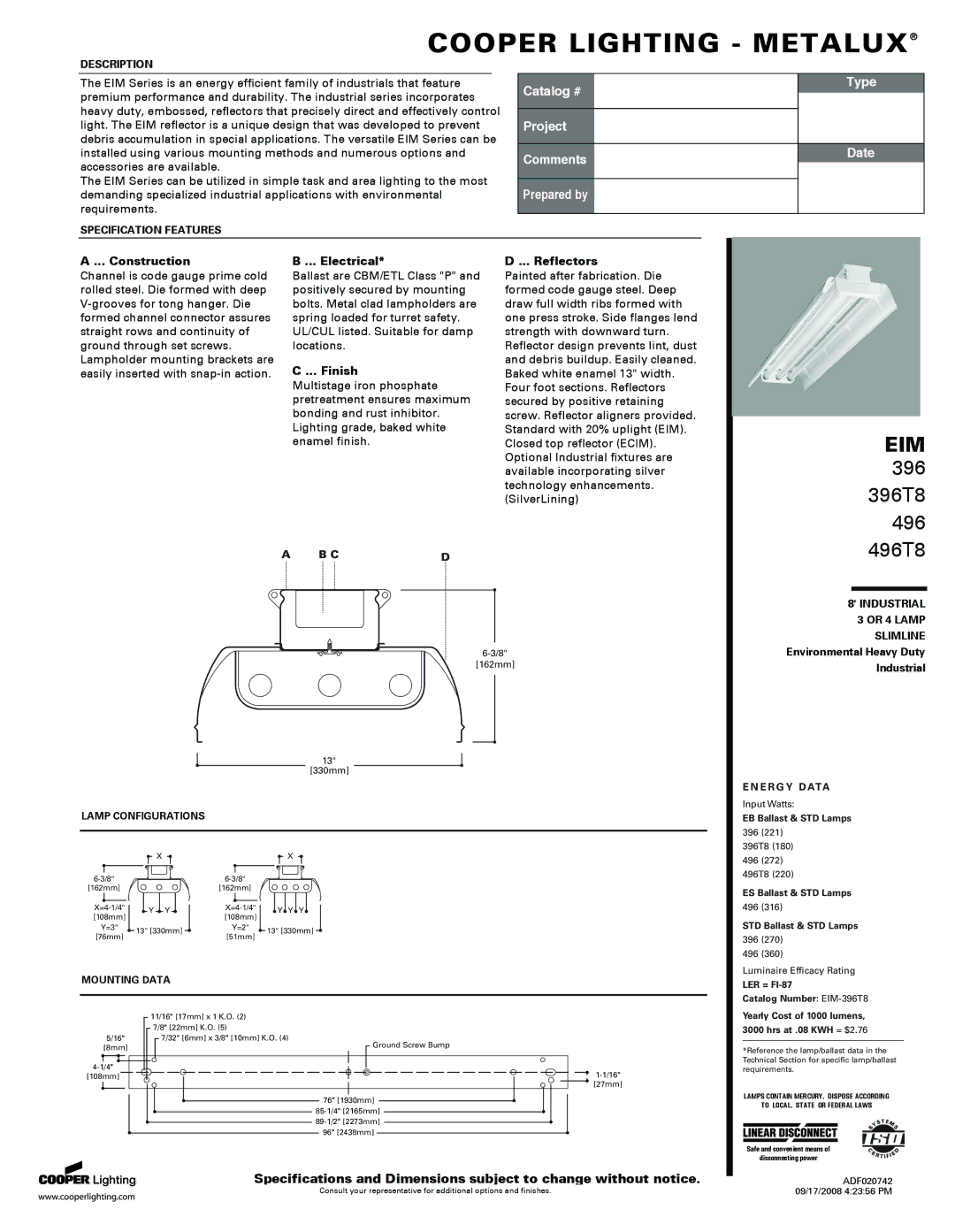

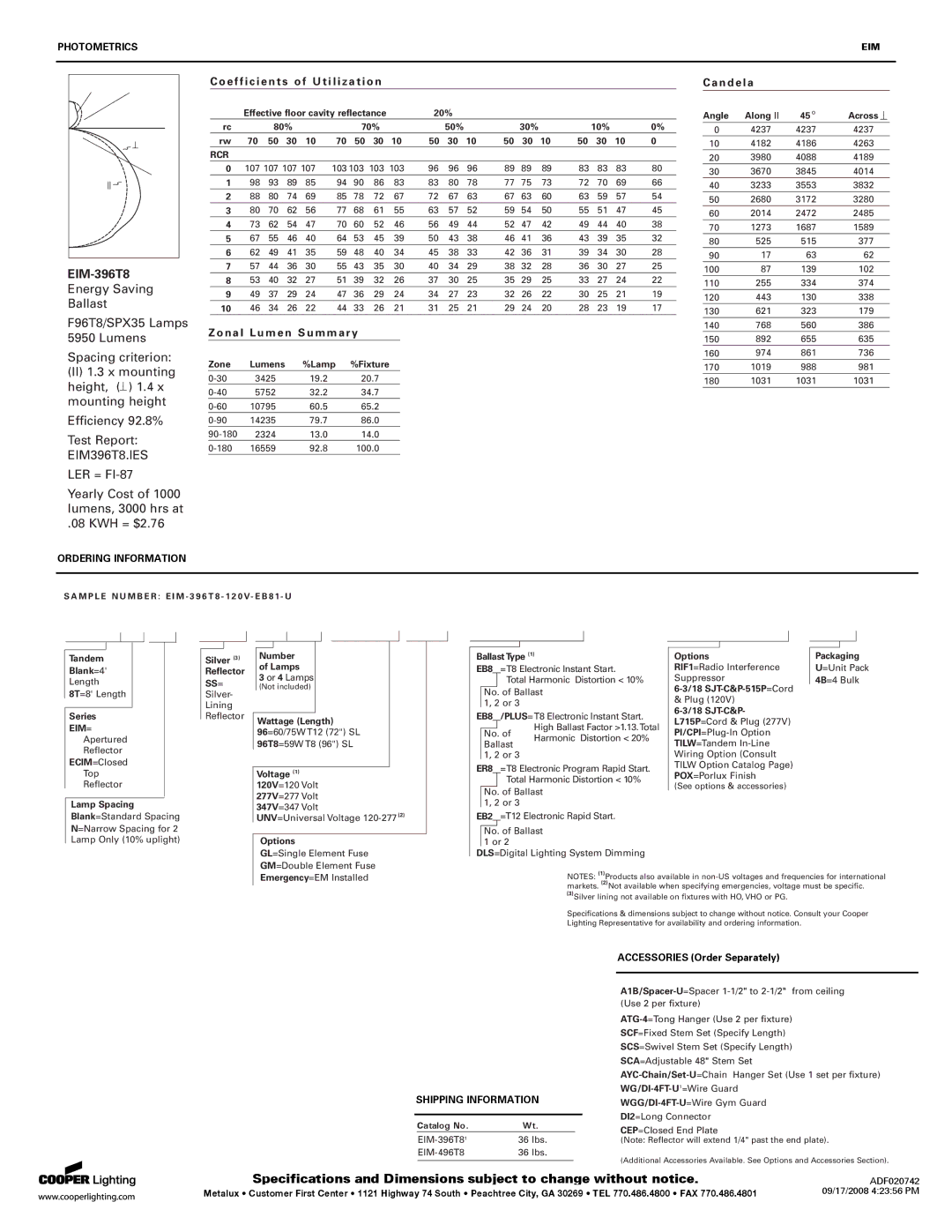

Image 1
