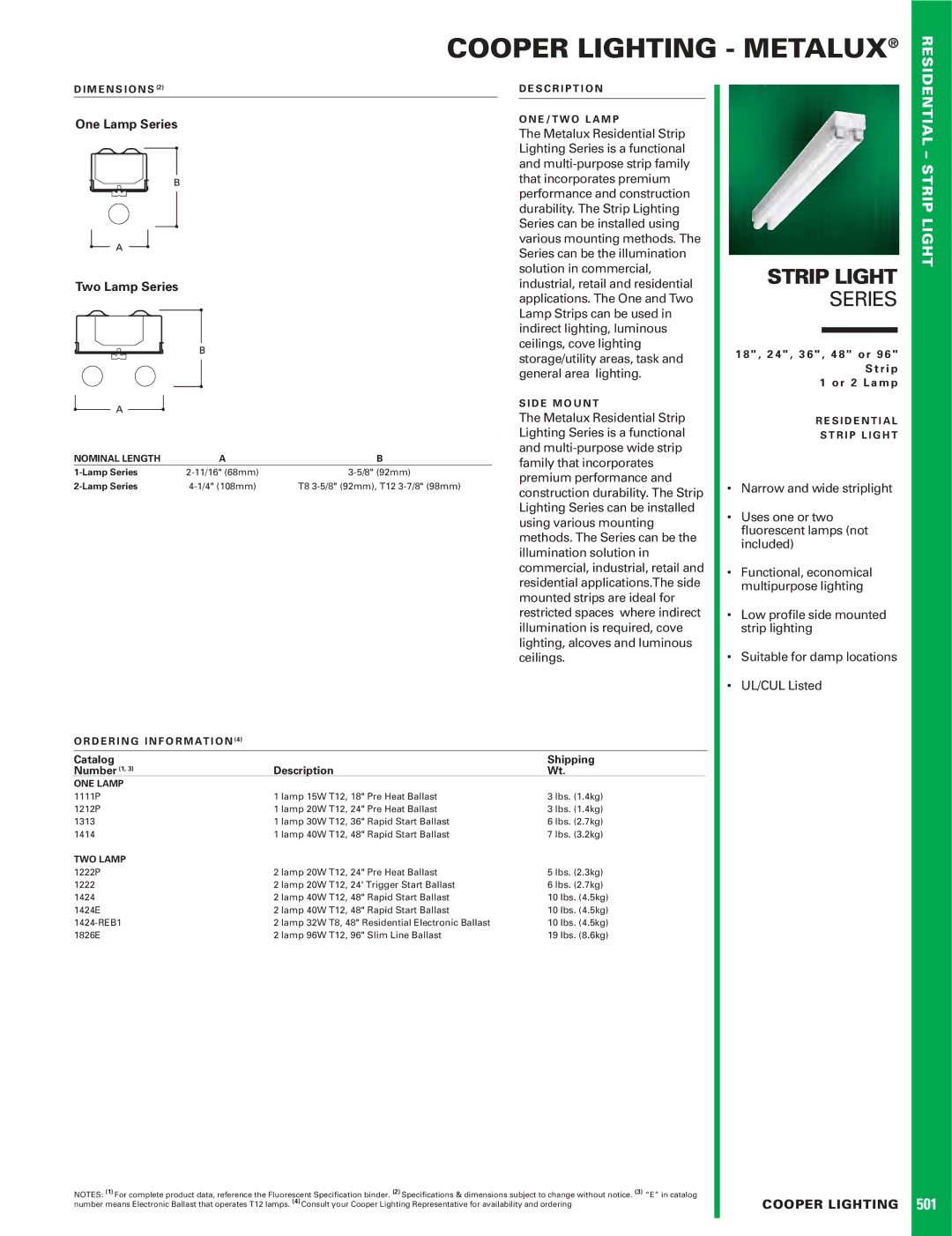

COOPER LIGHTING - METALUX®

D I M E N S I O N S (2)

One Lamp Series

Two Lamp Series

NOMINAL LENGTH	A	B
1-Lamp Series	2-11/16" (68mm)	3-5/8" (92mm)
2-Lamp Series	4-1/4" (108mm)	T8 3-5/8" (92mm), T12 3-7/8" (98mm)

O R D E R I N G I N F O R M AT I O N (4)

D E S C R I P T I O N

O N E / T W O L A M P

The Metalux Residential Strip Lighting Series is a functional and multi-purpose strip family that incorporates premium performance and construction durability. The Strip Lighting Series can be installed using various mounting methods. The Series can be the illumination solution in commercial, industrial, retail and residential applications. The One and Two Lamp Strips can be used in indirect lighting, luminous ceilings, cove lighting storage/utility areas, task and general area lighting.

S I D E M O U N T

The Metalux Residential Strip Lighting Series is a functional and multi-purpose wide strip family that incorporates premium performance and construction durability. The Strip Lighting Series can be installed using various mounting methods. The Series can be the illumination solution in commercial, industrial, retail and residential applications.The side mounted strips are ideal for restricted spaces where indirect illumination is required, cove lighting, alcoves and luminous ceilings.

STRIP LIGHT

SERIES

1 8 " , 2 4 " , 3 6 " , 4 8 " o r 9 6 " S t r i p 1 o r 2 L a m p

R E S I D E N T I A L

S T R I P L I G H T

•Narrow and wide striplight

•Uses one or two fluorescent lamps (not included)

•Functional, economical multipurpose lighting

•Low profile side mounted strip lighting

•Suitable for damp locations

•UL/CUL Listed

RESIDENTIAL – STRIP LIGHT

Catalog			Shipping
Number (1, 3)	Description		Wt.
ONE LAMP
1111P	1 lamp 15W T12, 18" Pre Heat Ballast		3 lbs. (1.4kg)
1212P	1 lamp 20W T12, 24" Pre Heat Ballast		3 lbs. (1.4kg)
1313	1 lamp 30W T12, 36" Rapid Start Ballast		6 lbs. (2.7kg)
1414	1 lamp 40W T12, 48" Rapid Start Ballast		7 lbs. (3.2kg)
TWO LAMP
1222P	2 lamp 20W T12, 24" Pre Heat Ballast		5 lbs. (2.3kg)
1222	2 lamp 20W T12, 24' Trigger Start Ballast		6 lbs. (2.7kg)
1424	2 lamp 40W	T12, 48" Rapid Start Ballast	10 lbs. (4.5kg)
1424E	2 lamp 40W	T12, 48" Rapid Start Ballast	10 lbs. (4.5kg)
1424-REB1	2 lamp 32W	T8, 48" Residential Electronic Ballast	10 lbs. (4.5kg)
1826E	2 lamp 96W	T12, 96" Slim Line Ballast	19 lbs. (8.6kg)

NOTES: (1) For complete product data, reference the Fluorescent Specification binder. (2) Specifications & dimensions subject to change without notice. (3) “E” in catalog	COOPER LIGHTING
number means Electronic Ballast that operates T12 lamps. (4) Consult your Cooper Lighting Representative for availability and ordering

501
