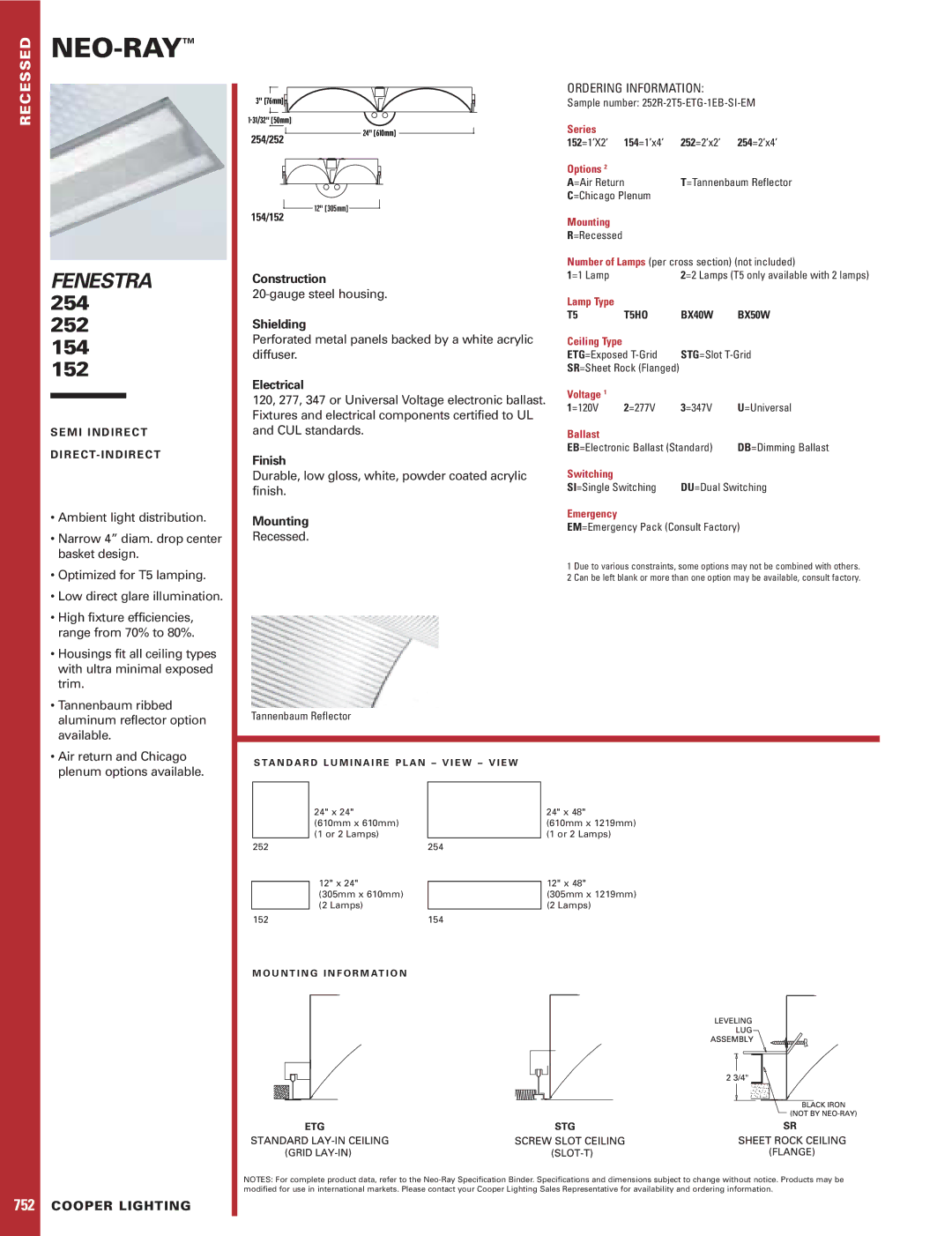

RECESSED

NEO-RAY



3" [76mm]

1-31/32" [50mm]

ORDERING INFORMATION:

Sample number: 252R-2T5-ETG-1EB-SI-EM

254/252

24" [610mm]

Series

152=1’X2’ 154=1’x4’ 252=2’x2’ 254=2’x4’

Options 2

A=Air ReturnT=Tannenbaum Reflector C=Chicago Plenum

FENESTRA 254 252 154 152

S E M I I N D I R E C T

D I R E C T- I N D I R E C T

• Ambient light distribution.

• Narrow 4” diam. drop center

basket design.

12" [305mm]

154/152

Construction

20-gauge steel housing.

Shielding

Perforated metal panels backed by a white acrylic diffuser.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

Mounting

R=Recessed

Number of Lamps (per cross section) (not included)

1=1 Lamp



2=2 Lamps (T5 only available with 2 lamps)

Lamp Type







T5

T5HO

BX40W

BX50W

Ceiling Type

ETG=Exposed T-Grid STG=Slot T-Grid

SR=Sheet Rock (Flanged)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

• Optimized for T5 lamping.

• Low direct glare illumination.

• High fixture efficiencies,

range from 70% to 80%.

• Housings fit all ceiling types

with ultra minimal exposed

trim.

• Tannenbaum ribbed

aluminum reflector option

available.

• Air return and Chicago

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

Tannenbaum Reflector

plenum options available.

S T A N D A R D L U M I N A I R E P L A N – V I E W – V I E W



24" x 24"





(610mm x 610mm)





(1 or 2 Lamps)



252

254



12" x 24"









(305mm x 610mm)





(2 Lamps)



152

154

24" x 48"

(610mm x 1219mm) (1 or 2 Lamps)

12" x 48"

(305mm x 1219mm) (2 Lamps)

752 COOPER LIGHTING

M O U N T I N G I N F O R M AT I O N

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

Page 1
