4-5/8"

[118mm]

24" [610mm]

Construction

20-gauge steel housing with 24 ga. steel reflector.

Shielding

Acrylic linear prism lens backed by precise frost acrylic overlay.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

Tannenbaum Reflector

ORDERING INFORMATION:

Sample number: 274R-1BX40W-ETG-1EB-SI-EM

Series









174=1’x4’



272=2’x2’



274=2’x4’

Options 2









A=Air Return

T=Tannenbaum Reflector



C=Chicago Plenum







Mounting









R=Recessed









Number of Lamps (in cross section) (not included)



1=1 Lamp



2=2 Lamps





Lamp Type









T5

T5HO

BX40W

BX50W



Ceiling Type









ETG=Exposed T-Grid

STG=Slot T-Grid

SR=Sheet Rock

Voltage 1









1=120V

2=277V

3=347V

U=Universal



Ballast









EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching









SI=Single Switching

DU=Dual Switching



Emergency

EM=Emergency Pack (Consult Factory)

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

NEO-RAY

RECESSED



FENESTRA 264 262

D I R E C T- I N D I R E C T

• Opal white diffuser fully

encloses lamp compatment

for easy whipe down.

• Perfect for healthcare,

educational and other

institutional facilities that

require simple easy cleaning

and minimized contagion

accumulation.

• T5 or T8 Lamping

• Highly efficient linear

prismatic diffuser offers low

glare, broad distribution.

• Combine the three lamp

profile with dual switching for

three levels of lighting

through basic switches for

complete, trustworthy

control.

S T A N D A R D L U M I N A I R E P L A N – V I E W – V I E W



24" x 48"



24" x 24"



(610mm x 1219mm)



(610mm x 610mm)



(2, 3, 4 or 6 Lamps)



(2 or 3 Lamps)









264



262



M O U N T I N G I N F O R M AT I O N

ETG

STG

SR

EXPOSED TEE GRID

SLOT TEE GRID

SHEET ROCK

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

• Consult factory for dimming

and emergency options.

• Recessed Mounting for T-grid,

sheet rock ceiling and

• 9/16" slot T-grid.

• Can be mounted end-to-end

and side-to-side.

COOPER LIGHTING 751

Page 1

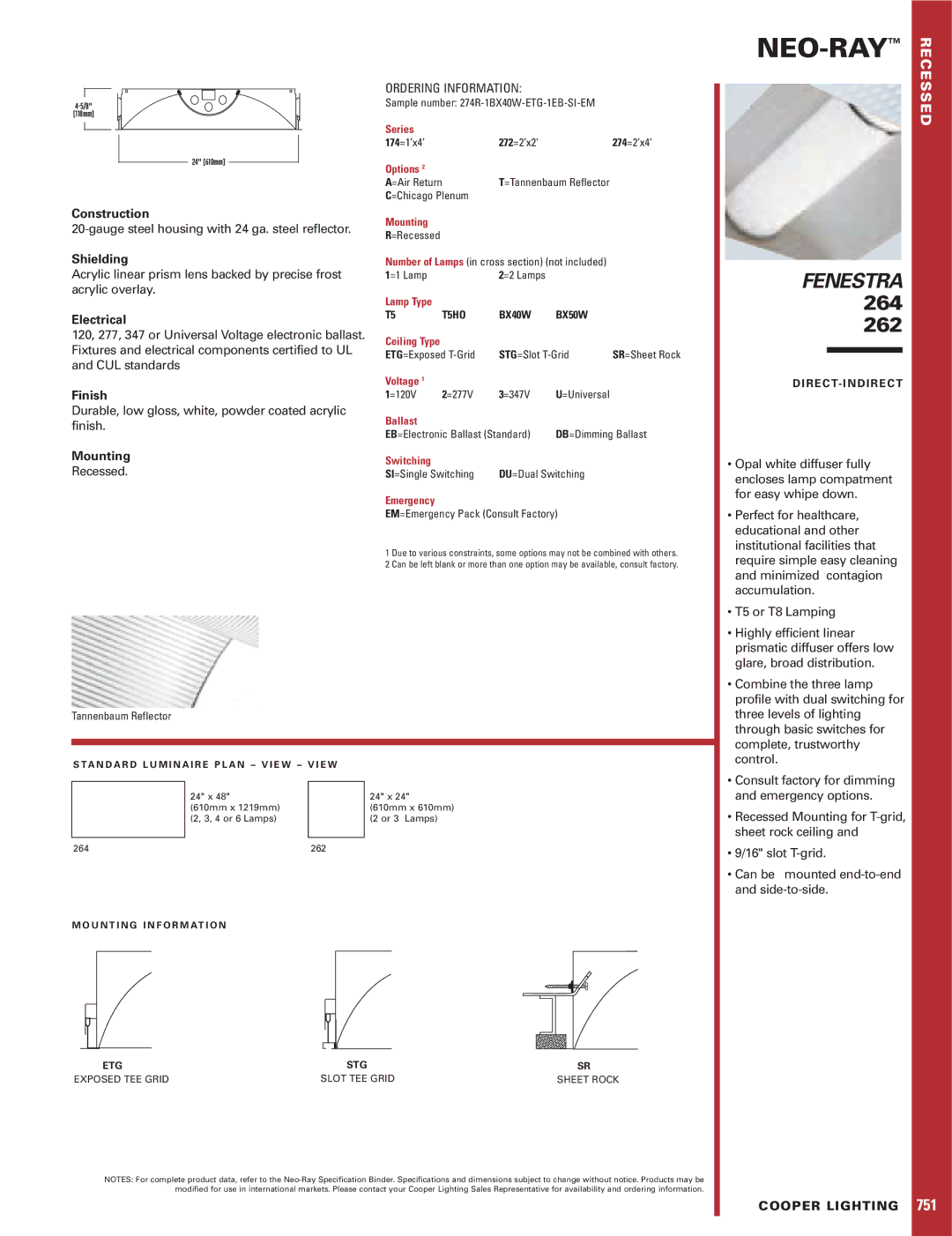

Image 1
