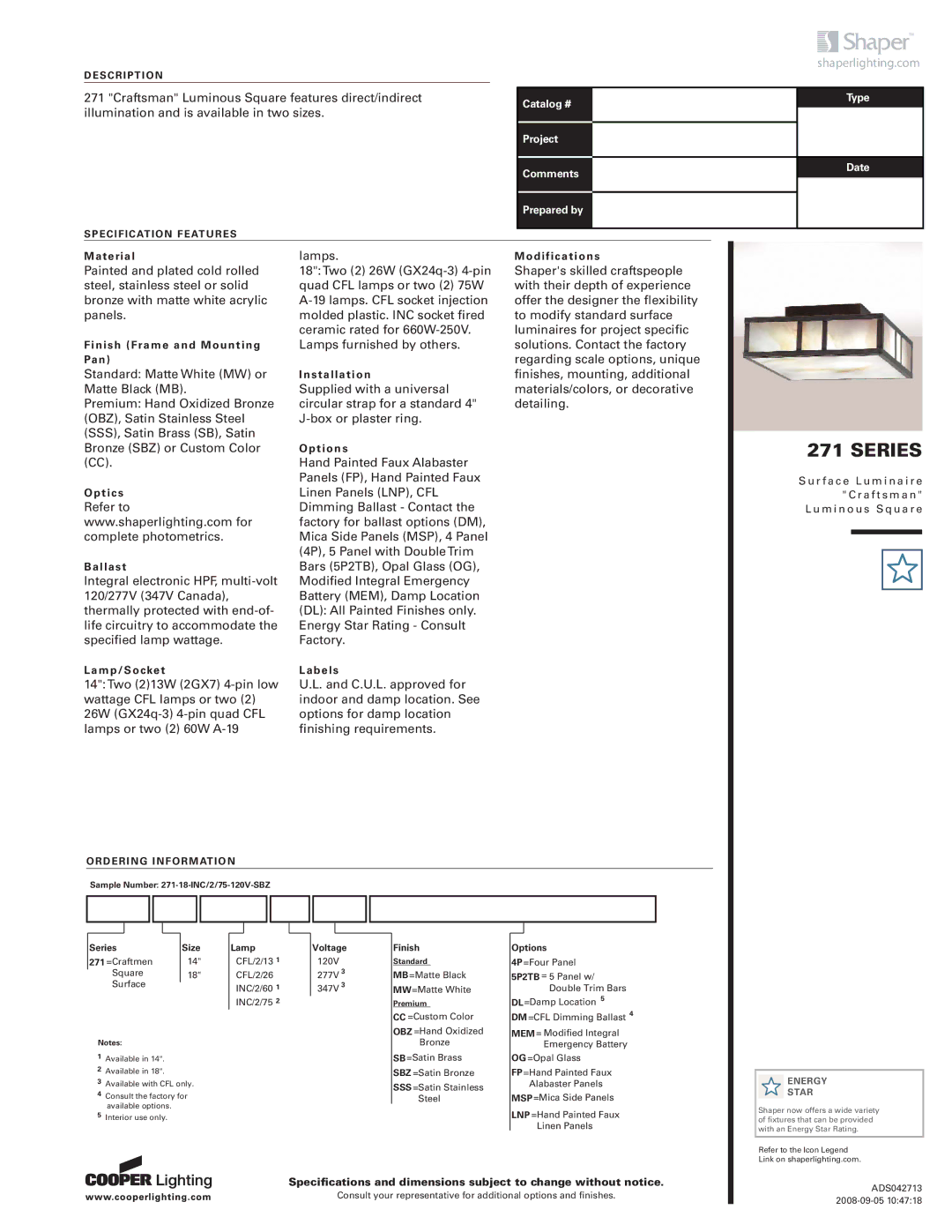

DESCRIPTION

271 "Craftsman" Luminous Square features direct/indirect illumination and is available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted and plated cold rolled steel, stainless steel or solid bronze with matte white acrylic panels.

Finish (Frame and Mounting Pan)

Standard: Matte White (MW) or Matte Black (MB).

Premium: Hand Oxidized Bronze (OBZ), Satin Stainless Steel (SSS), Satin Brass (SB), Satin Bronze (SBZ) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

14":Two (2)13W (2GX7) 4-pin low wattage CFL lamps or two (2) 26W (GX24q-3) 4-pin quad CFL lamps or two (2) 60W A-19

lamps.

18":Two (2) 26W (GX24q-3) 4-pin quad CFL lamps or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Panels (FP), Hand Painted Faux Linen Panels (LNP), CFL Dimming Ballast - Contact the factory for ballast options (DM), Mica Side Panels (MSP), 4 Panel (4P), 5 Panel with DoubleTrim Bars (5P2TB), Opal Glass (OG), Modified Integral Emergency Battery (MEM), Damp Location (DL): All Painted Finishes only. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

271 SERIES

S u r f a c e L u m i n a i r e " C r a f t s m a n "

L u m i n o u s S q u a r e

ORDERING INFORMATION

Sample Number: 271-18-INC/2/75-120V-SBZ





























Series



Size

271 =Craftmen



14"

Square



18"

Surface







Notes:

1Available in 14".

2Available in 18".

3Available with CFL only.

4Consult the factory for available options.

5Interior use only.

Lamp

CFL/2/13 1 CFL/2/26 INC/2/60 1 INC/2/75 2

Voltage

120V

277V 3

347V 3

Finish

Standard

MB=Matte Black

MW=Matte White

Premium

CC=Custom Color

OBZ =Hand Oxidized

Bronze

SB=Satin Brass

SBZ =Satin Bronze

SSS=Satin Stainless Steel

Options

4P=Four Panel

5P2TB = 5 Panel w/ Double Trim Bars

DL=Damp Location 5

DM=CFL Dimming Ballast 4

MEM= Modified Integral

Emergency Battery

OG =Opal Glass

FP=Hand Painted Faux

Alabaster Panels

MSP=Mica Side Panels

LNP =Hand Painted Faux

Linen Panels

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042713 2008-09-05 10:47:18

Page 1
