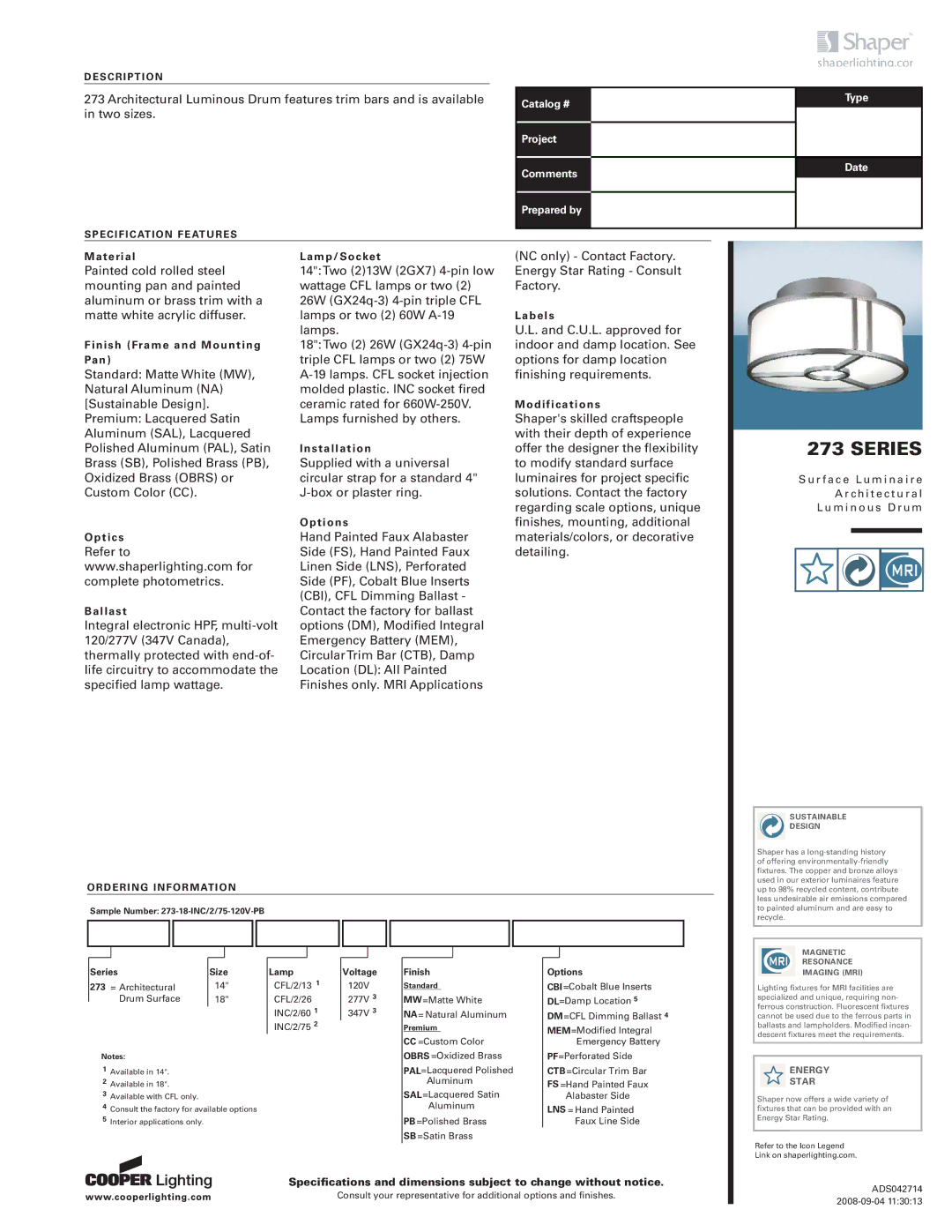

Cooper Lighting 273 specifications Series

DESCRIPTION

273 Architectural Luminous Drum features trim bars and is available in two sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted cold rolled steel mounting pan and painted aluminum or brass trim with a matte white acrylic diffuser.

Finish (Frame and Mounting Pan)

Standard: Matte White (MW), Natural Aluminum (NA) [Sustainable Design]. Premium: Lacquered Satin Aluminum (SAL), Lacquered Polished Aluminum (PAL), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

14":Two (2)13W (2GX7) 4-pin low wattage CFL lamps or two (2) 26W (GX24q-3) 4-pin triple CFL lamps or two (2) 60W A-19 lamps.

18":Two (2) 26W (GX24q-3) 4-pin triple CFL lamps or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Side (FS), Hand Painted Faux Linen Side (LNS), Perforated Side (PF), Cobalt Blue Inserts (CBI), CFL Dimming Ballast - Contact the factory for ballast options (DM), Modified Integral Emergency Battery (MEM), CircularTrim Bar (CTB), Damp Location (DL): All Painted Finishes only. MRI Applications

(NC only) - Contact Factory. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

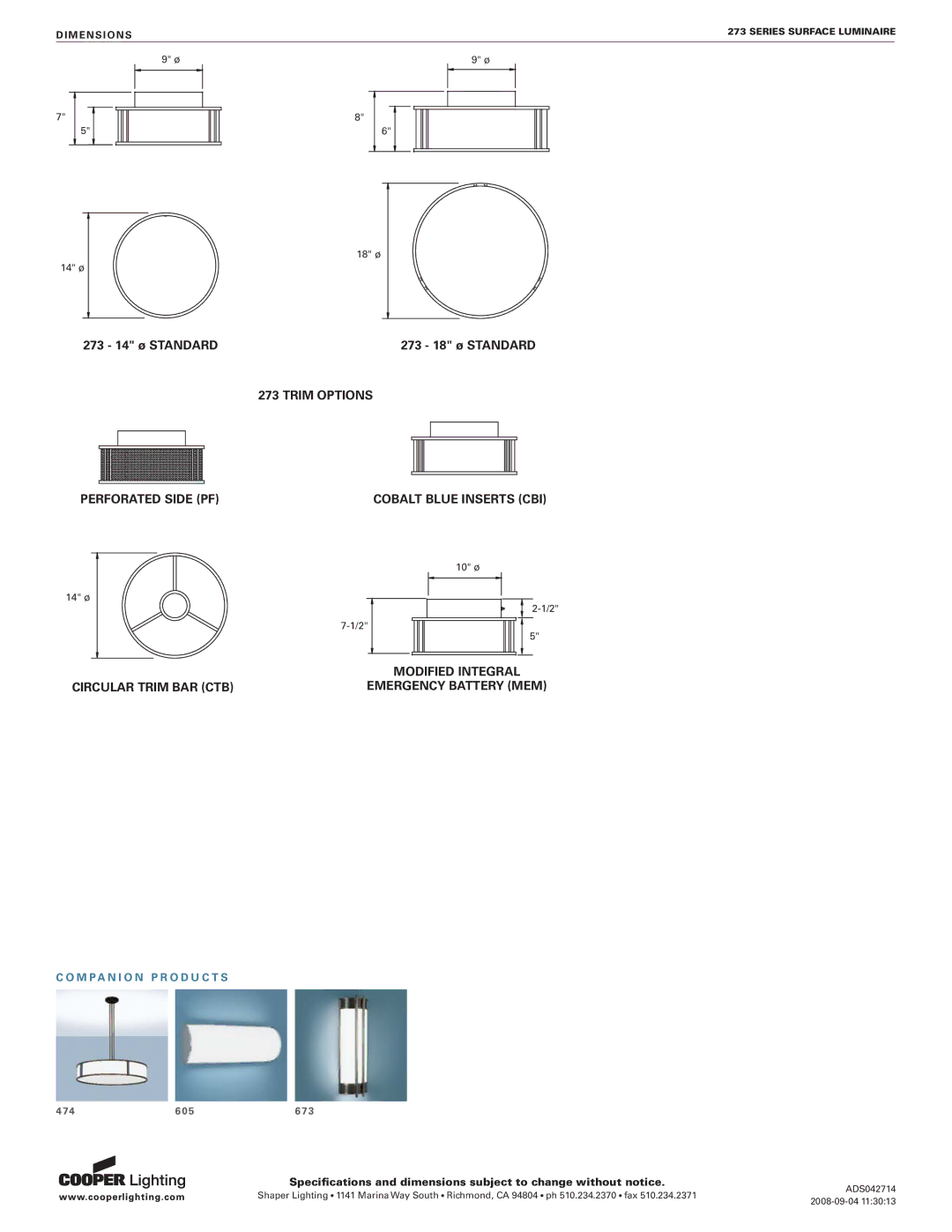

273 SERIES

S u r f a c e L u m i n a i r e A r ch i t e c t u r a l L u m i n o u s D r u m

SUSTAINABLE

DESIGN

ORDERING INFORMATION

Sample Number: 273-18-INC/2/75-120V-PB

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

Series	Size
273 = Architectural	14"
Drum Surface	18"

Notes:

1Available in 14".

2Available in 18".

3Available with CFL only.

4Consult the factory for available options

5Interior applications only.

Lamp

CFL/2/13 1 CFL/2/26 INC/2/60 1 INC/2/75 2

Voltage

120V

277V 3

347V 3

Finish

Standard

MW=Matte White

NA= Natural Aluminum

Premium

CC=Custom Color OBRS =Oxidized Brass

PAL=Lacquered Polished

Aluminum

SAL=Lacquered Satin

Aluminum

PB=Polished Brass

SB =Satin Brass

Options

CBI=Cobalt Blue Inserts

DL=Damp Location 5

DM=CFL Dimming Ballast 4

MEM=Modified Integral

Emergency Battery

PF=Perforated Side

CTB=Circular Trim Bar

FS =Hand Painted Faux

Alabaster Side

LNS = Hand Painted

Faux Line Side

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
