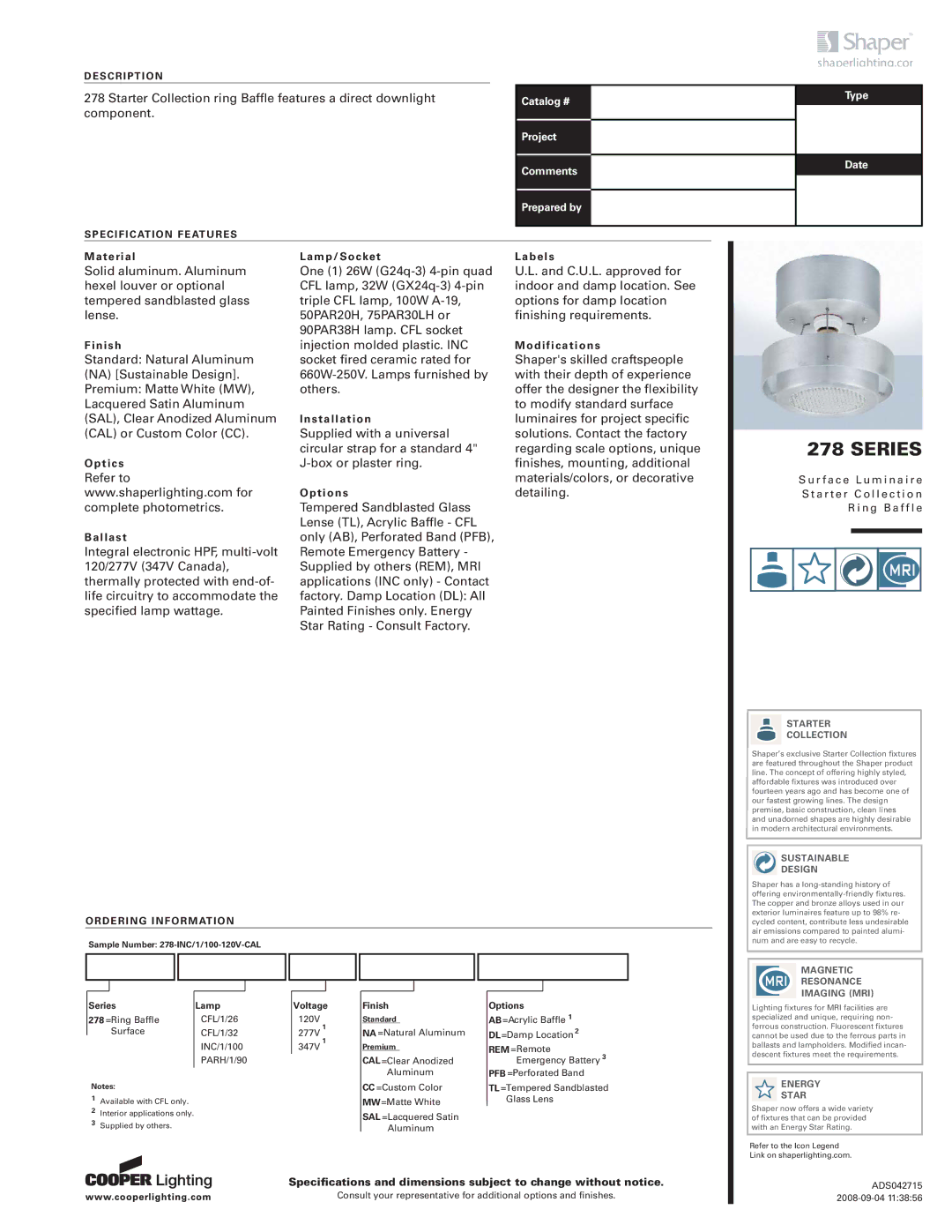

DESCRIPTION

278 Starter Collection ring Baffle features a direct downlight component.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Solid aluminum. Aluminum hexel louver or optional tempered sandblasted glass lense.

Finish

Standard: Natural Aluminum (NA) [Sustainable Design]. Premium: Matte White (MW), Lacquered Satin Aluminum (SAL), Clear Anodized Aluminum (CAL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

One (1) 26W (G24q-3) 4-pin quad CFL lamp, 32W (GX24q-3) 4-pin triple CFL lamp, 100W A-19, 50PAR20H, 75PAR30LH or 90PAR38H lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Tempered Sandblasted Glass Lense (TL), Acrylic Baffle - CFL only (AB), Perforated Band (PFB), Remote Emergency Battery - Supplied by others (REM), MRI applications (INC only) - Contact factory. Damp Location (DL): All Painted Finishes only. Energy Star Rating - Consult Factory.

Labels

U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

278 SERIES

S u r f a c e L u m i n a i r e

S t a r t e r C o l l e c t i o n

R i n g B a f f l e

STARTER

COLLECTION

Shaper’s exclusive Starter Collection fixtures are featured throughout the Shaper product line. The concept of offering highly styled, affordable fixtures was introduced over fourteen years ago and has become one of our fastest growing lines. The design premise, basic construction, clean lines and unadorned shapes are highly desirable in modern architectural environments.

SUSTAINABLE

DESIGN

ORDERING INFORMATION

Sample Number: 278-INC/1/100-120V-CAL

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Series

Lamp

278 =Ring Baffle

CFL/1/26

Surface

CFL/1/32



INC/1/100



PARH/1/90

Notes:

1Available with CFL only.

2Interior applications only.

3Supplied by others.

Voltage

120V

277V 1

347V 1

Finish

Standard

NA =Natural Aluminum

Premium

CAL=Clear Anodized

Aluminum

CC=Custom Color

MW=Matte White

SAL =Lacquered Satin

Aluminum

Options

AB=Acrylic Baffle 1

DL=Damp Location 2

REM =Remote

Emergency Battery 3

PFB =Perforated Band

TL=Tempered Sandblasted

Glass Lens

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042715 2008-09-04 11:38:56

Page 1
