DESCRIPTION
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared by
shaperlighting.com
Type
Date
Material
Cold rolled steel mounting pan and rings with a matte white acrylic diffuser.
Finish
Standard: Matte White (MW).
Premium: Polished Chrome (PC), Satin Chrome (SC), Natural Aluminum (NA) [Sustainable Design], Satin Brass (SB), Polished Brass (PB), Lacquered Satin Aluminum (SAL), Polished Copper (PCP), Satin Copper (SCP), Oxidized Brass (OBRS), Satin Nickel (SN), Polished Nickel (PN), Lacqurered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC). Note: For PC, PCP, PN and PB the upper ring faces are satined to reduce reflections of inner hardware.The edges are polished.
Custom Decorative Metals: (Specify a Color & Pattern) Colors - Clear (CLR), Cabernet (CBT), Sapphire (SPE), Sage (SGE), Brass (BRS), Copper (CRP), Black Pearl (BPL), Slate Green (SGN), Champagne (CMP), Chocolate (CLE), Indigo (IDO),
Royal Blue (RBE), or Pewter (PWR). Patterns - Coral (COL), Seashell (SHL) or Smooth (SMT). Minimum quantity is 10 of one color/pattern. Contact the factory for
Optics Refer to www.shaperlighting.com for complete photometrics.
Ballast
Integral electronic HPF,
Lamp/Socket
One (1) 22W or 40WT5 circular fluorescent lamp. Socket injection molded plastic. Lamps furnished by others.
Installation
Supplied with a universal circular strap for a standard 4"
Options
Hand Painted Faux Alabaster
Bowl (FB), Hand Painted Faux Linen Bowl (LNB), Frosted Acrylic Center Ring (ACR), Remote Emergency Battery - Supplied by others (REM), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. MRI Applications (INC only) - Contact Factory. Energy Star Rating- Contact Factory. Dimming available with 55WT5 - Contact factory.
Labels
U.L. and C.U.L. approved for indoor and damp location. See options for damp location finishing requirements.
Modifications
Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard surface luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

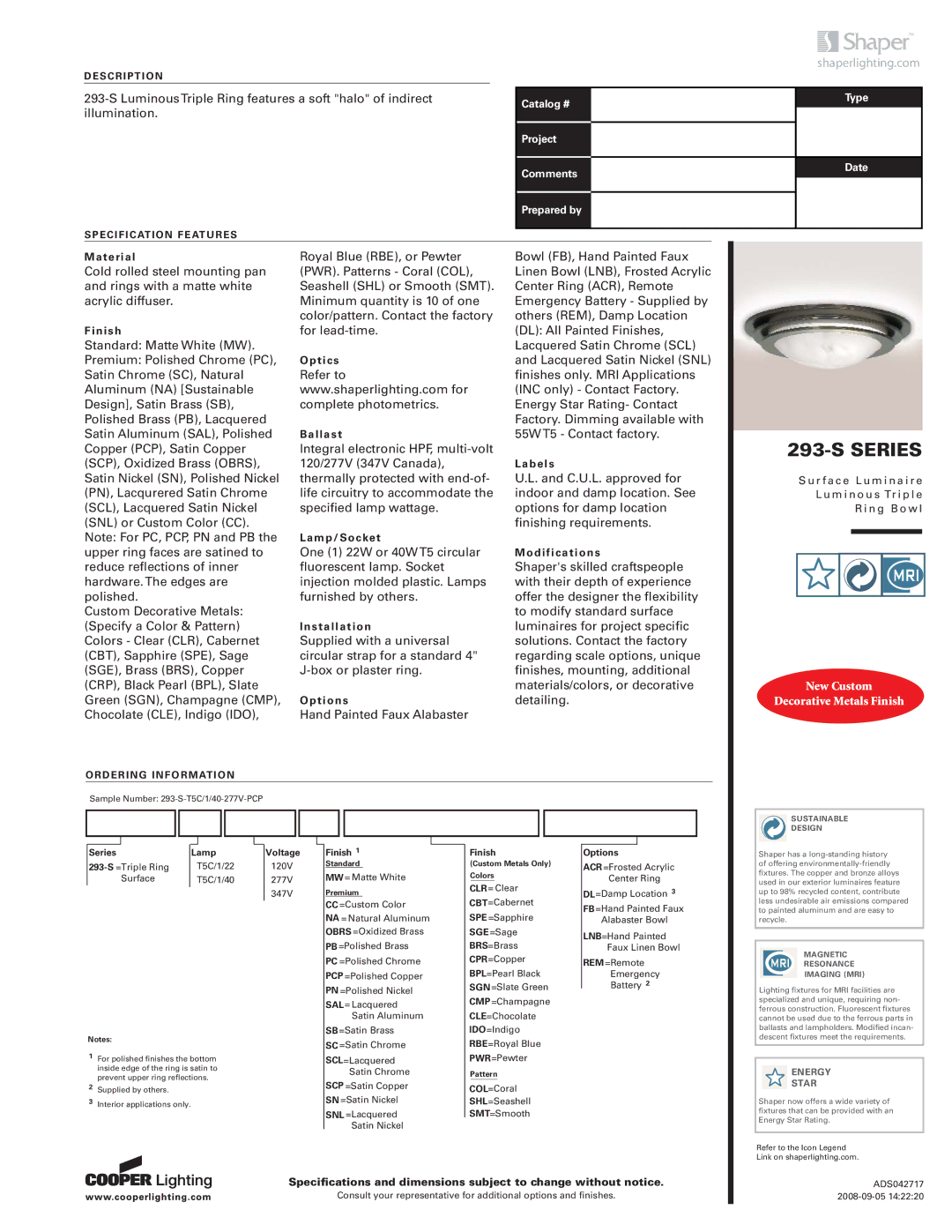

293-S SERIES
S u r f a c e L u m i n a i r e L u m i n o u s Tr i p l e R i n g B o w l
New Custom
Decorative Metals Finish
ORDERING INFORMATION
Sample Number:
SUSTAINABLE
DESIGN
Series | Lamp |
T5C/1/22 | |
Surface | T5C/1/40 |
Notes:
1For polished finishes the bottom inside edge of the ring is satin to prevent upper ring reflections.
2Supplied by others.
3Interior applications only.
Voltage
120V
277V
347V
Finish 1
Standard
MW= Matte White
Premium
CC=Custom Color
NA = Natural Aluminum
OBRS =Oxidized Brass
PB=Polished Brass
PC =Polished Chrome
PCP =Polished Copper
PN =Polished Nickel
SAL= Lacquered
Satin Aluminum
SB=Satin Brass
SC =Satin Chrome
SCL=Lacquered
Satin Chrome
SCP =Satin Copper
SN =Satin Nickel
SNL =Lacquered
Satin Nickel
Finish
(Custom Metals Only)
Colors
CLR= Clear CBT=Cabernet
SPE=Sapphire
SGE=Sage
BRS=Brass
CPR=Copper
BPL=Pearl Black
SGN=Slate Green
CMP=Champagne
CLE=Chocolate
IDO=Indigo
RBE=Royal Blue
PWR=Pewter
Pattern
COL=Coral
SHL=Seashell
SMT=Smooth
Options
ACR=Frosted Acrylic
Center Ring
DL=Damp Location 3
FB=Hand Painted Faux
Alabaster Bowl
LNB=Hand Painted Faux Linen Bowl
REM=Remote
Emergency
Battery 2
Shaper has a
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.
ENERGY
STAR
Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.
Refer to the Icon Legend
Link on shaperlighting.com.
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADS042717
