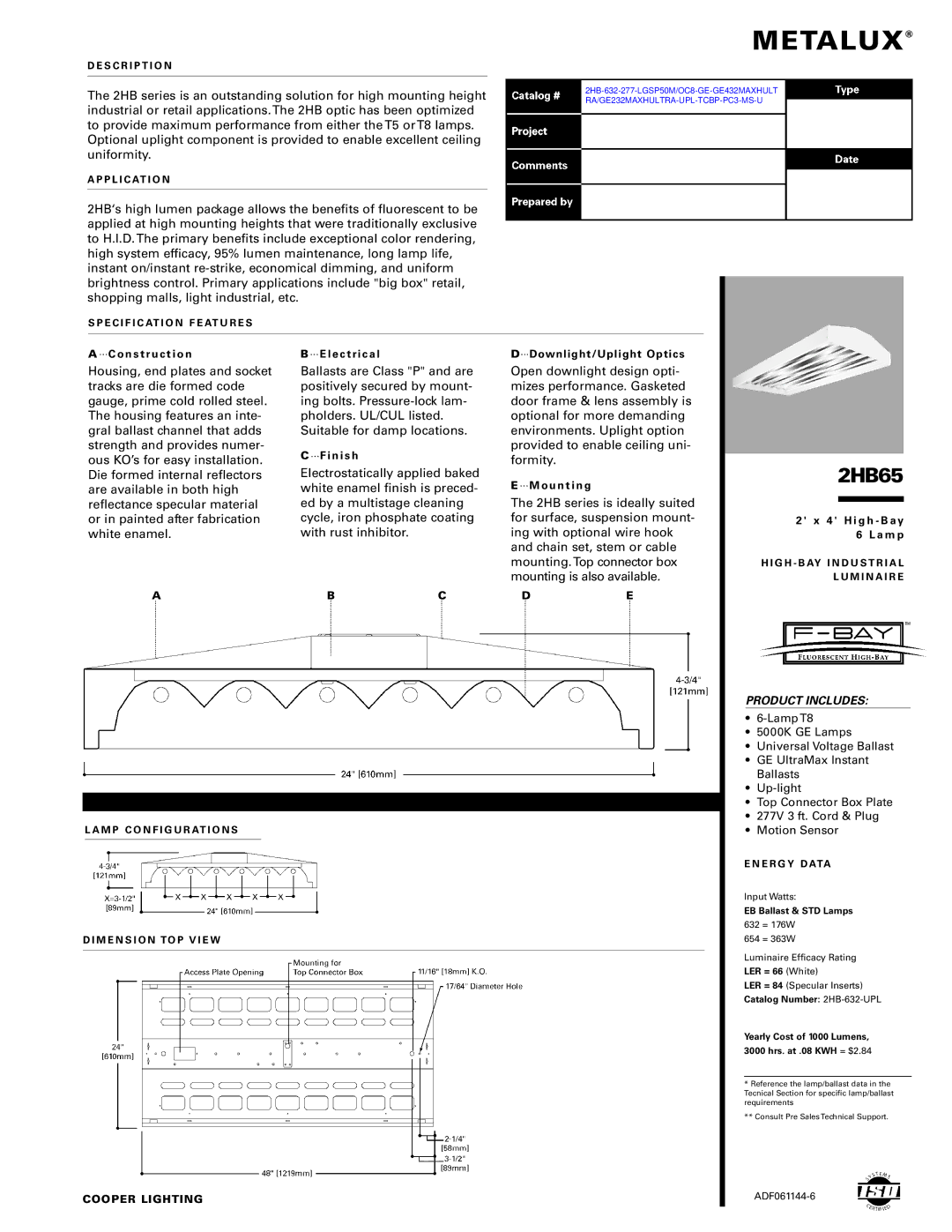

ME TAL U X®

D E S C R I P T I O N

The 2HB series is an outstanding solution for high mounting height industrial or retail applications. The 2HB optic has been optimized to provide maximum performance from either the T5 or T8 lamps. Optional uplight component is provided to enable excellent ceiling uniformity.

A P P L I C AT I O N

2HB-632-277-LGSP50M/OC8-GE-GE432MAXHULT RA/GE232MAXHULTRA-UPL-TCBP-PC3-MS-U

2HB‘s high lumen package allows the benefits of fluorescent to be applied at high mounting heights that were traditionally exclusive to H.I.D. The primary benefits include exceptional color rendering, high system efficacy, 95% lumen maintenance, long lamp life, instant on/instant re-strike, economical dimming, and uniform brightness control. Primary applications include "big box" retail, shopping malls, light industrial, etc.

S P E C I F I C AT I O N F E AT U R E S

A . . . C o n s t r u c t i o n

B . . . E l e c t r i c a l

D . . . D ow n l ig h t / U p l i g h t O p ti c s

Housing, end plates and socket tracks are die formed code gauge, prime cold rolled steel. The housing features an inte- gral ballast channel that adds strength and provides numer- ous KO’s for easy installation. Die formed internal reflectors are available in both high reflectance specular material or in painted after fabrication white enamel.

Ballasts are Class "P" and are positively secured by mount- ing bolts. Pressure-lock lam- pholders. UL/CUL listed. Suitable for damp locations.

C. . . F i n i s h

Electrostatically applied baked white enamel finish is preced- ed by a multistage cleaning cycle, iron phosphate coating with rust inhibitor.

Open downlight design opti- mizes performance. Gasketed door frame & lens assembly is optional for more demanding environments. Uplight option provided to enable ceiling uni- formity.

E. . . M o u n t i n g

The 2HB series is ideally suited for surface, suspension mount- ing with optional wire hook and chain set, stem or cable mounting. Top connector box mounting is also available.

2HB65

2 ' x 4 ' H i g h - B a y

6 L a m p

H I G H - B AY I N D U S T R I A L

L U M I N A I R E

ABCDE

L A M P C O N F I G U R AT I O N S

D I M E N S I O N T O P V I E W

PRODUCT INCLUDES:

6-Lamp T8

5000K GE Lamps

Universal Voltage Ballast

GE UltraMax Instant Ballasts

Up-light

Top Connector Box Plate

277V 3 ft. Cord & Plug

Motion Sensor

E N E R G Y D ATA

Input Watts:

EB Ballast & STD Lamps

632 = 176W

654 = 363W

Luminaire Efficacy Rating LER = 66 (White)

LER = 84 (Specular Inserts)

Catalog Number: 2HB-632-UPL

Yearly Cost of 1000 Lumens, 3000 hrs. at .08 KWH = $2.84

*Reference the lamp/ballast data in the Tecnical Section for specific lamp/ballast requirements

** Consult Pre Sales Technical Support.

COO PER LIGHTING

ADF061144-6

Page 1
