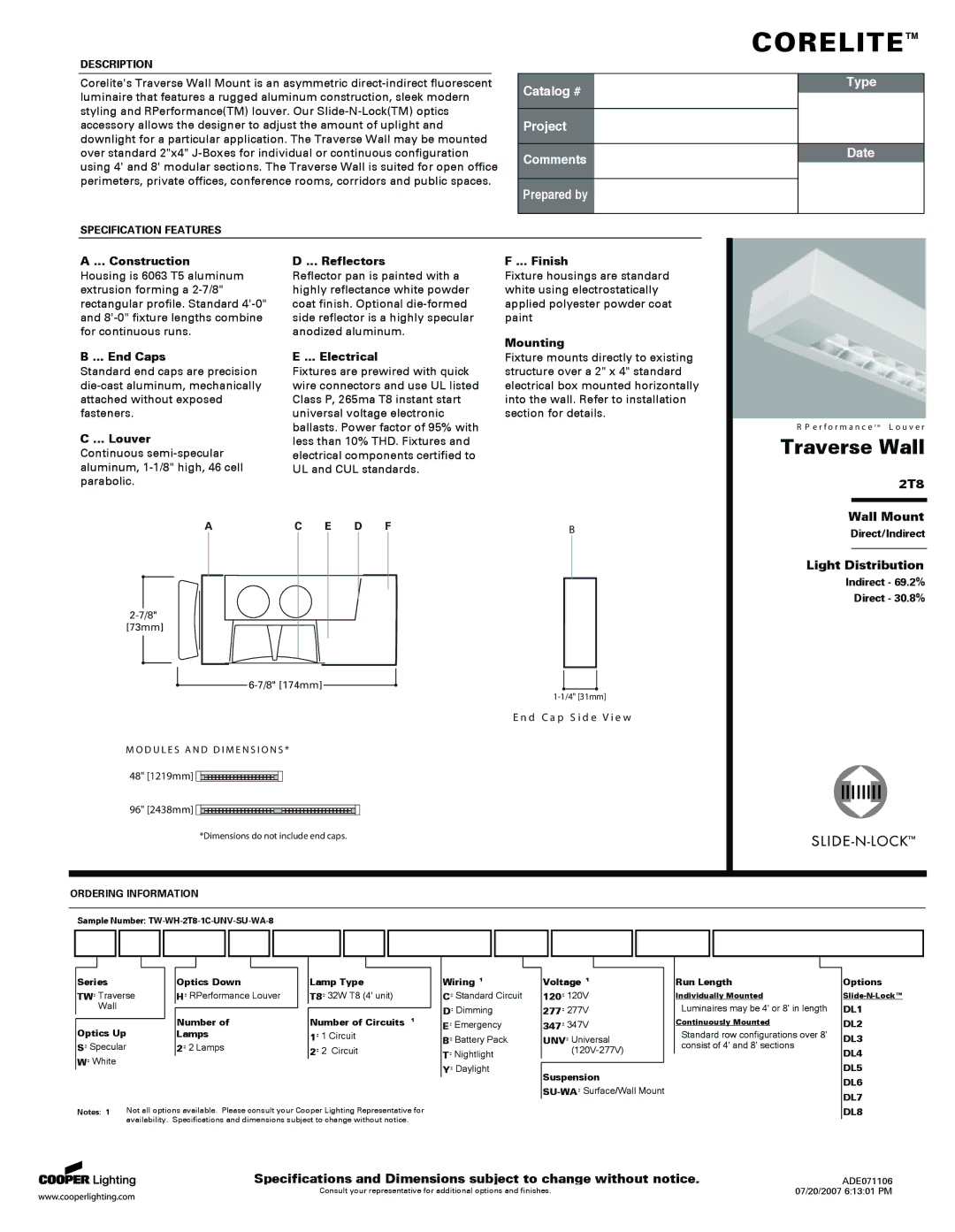

DESCRIPTION

Corelite's Traverse Wall Mount is an asymmetric direct-indirect fluorescent luminaire that features a rugged aluminum construction, sleek modern styling and RPerformance(TM) louver. Our Slide-N-Lock(TM) optics accessory allows the designer to adjust the amount of uplight and downlight for a particular application. The Traverse Wall may be mounted over standard 2"x4" J-Boxes for individual or continuous configuration using 4' and 8' modular sections. The Traverse Wall is suited for open office perimeters, private offices, conference rooms, corridors and public spaces.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

CORELITE

Type

Date

A ... Construction

Housing is 6063 T5 aluminum extrusion forming a 2-7/8" rectangular profile. Standard 4'-0" and 8'-0" fixture lengths combine for continuous runs.

B ... End Caps

Standard end caps are precision die-cast aluminum, mechanically attached without exposed fasteners.

C ... Louver

Continuous semi-specular aluminum, 1-1/8" high, 46 cell parabolic.

A

2-7/8" [73mm]

D ... Reflectors

Reflector pan is painted with a highly reflectance white powder coat finish. Optional die-formed side reflector is a highly specular anodized aluminum.

E ... Electrical

Fixtures are prewired with quick wire connectors and use UL listed Class P, 265ma T8 instant start universal voltage electronic ballasts. Power factor of 95% with less than 10% THD. Fixtures and electrical components certified to UL and CUL standards.

C E D F

F ... Finish

Fixture housings are standard white using electrostatically applied polyester powder coat paint

Mounting

Fixture mounts directly to existing structure over a 2" x 4" standard electrical box mounted horizontally into the wall. Refer to installation section for details.

B

R P e r f o r m a n c e T M L o u v e r

Traverse Wall

2T8

Wall Mount

Direct/Indirect

Light Distribution

Indirect - 69.2%

Direct - 30.8%

6-7/8" [174mm]

M O D U L E S A N D D I M E N S I O N S *

48" [1219mm]

1-1/4" [31mm]

E n d C a p S i d e V i e w

96" [2438mm]

*Dimensions do not include end caps.

ORDERING INFORMATION

Sample Number: TW-WH-2T8-1C-UNV-SU-WA-8

















































































Series







Optics Down



Lamp Type

TW= Traverse







H= RPerformance Louver



T8= 32W T8 (4' unit)



Wall















































Number of



Number of Circuits 1

Optics Up











Lamps



1= 1 Circuit

S= Specular







2= 2 Lamps



2= 2 Circuit

W= White

Notes: 1

Not all options available. Please consult your Cooper Lighting Representative for



availability. Specifications and dimensions subject to change without notice.

Wiring 1

C= Standard Circuit

D= Dimming

E= Emergency

B= Battery Pack

T= Nightlight

Y= Daylight

Voltage 1

120= 120V

277= 277V

347= 347V

UNV= Universal (120V-277V)

Suspension

SU-WA= Surface/Wall Mount

Run Length

Individually Mounted

Luminaires may be 4' or 8' in length

Continuously Mounted

Standard row configurations over 8' consist of 4' and 8' sections

Options

Slide-N-Lock™

DL1

DL2

DL3

DL4

DL5

DL6

DL7

DL8

Specifications and Dimensions subject to change without notice.

ADE071106

Consult your representative for additional options and finishes.

07/20/2007 6:13:01 PM

Page 1
