3-1/2" [89mm]

8-1/2" [216mm]

Construction

Inner Housing: 20-gauge cold rolled steel. Outer

housing: 20-guage perforated cold rolled steel with staggered round hole perforated pattern, backed by white acrylic diffuser. Fixtures are nominal 4’ illuminated sections.

End Caps

Set back, die formed aluminum.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Fixture mounts directly to existing structure over a 2”x4” standard electrical box mounted horizontally in the wall.

ORDERING INFORMATION:

Sample number: 301IW-1BX40W-48-2EB-SI-RP

Series

301=Nuage

Light Output

I=Indirect

Mounting

W=Wall

Number of Lamps (per cross section) (lamps not included) 1=1 Lamp

Lamp Type



BX40 (4’)

BX50 (5’)

Run Length

Overall Nominal Run Length__ft.

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching





Perforation







RP=Round

BP=None





Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

1 Due to various constraints, some options may not be combined with others.

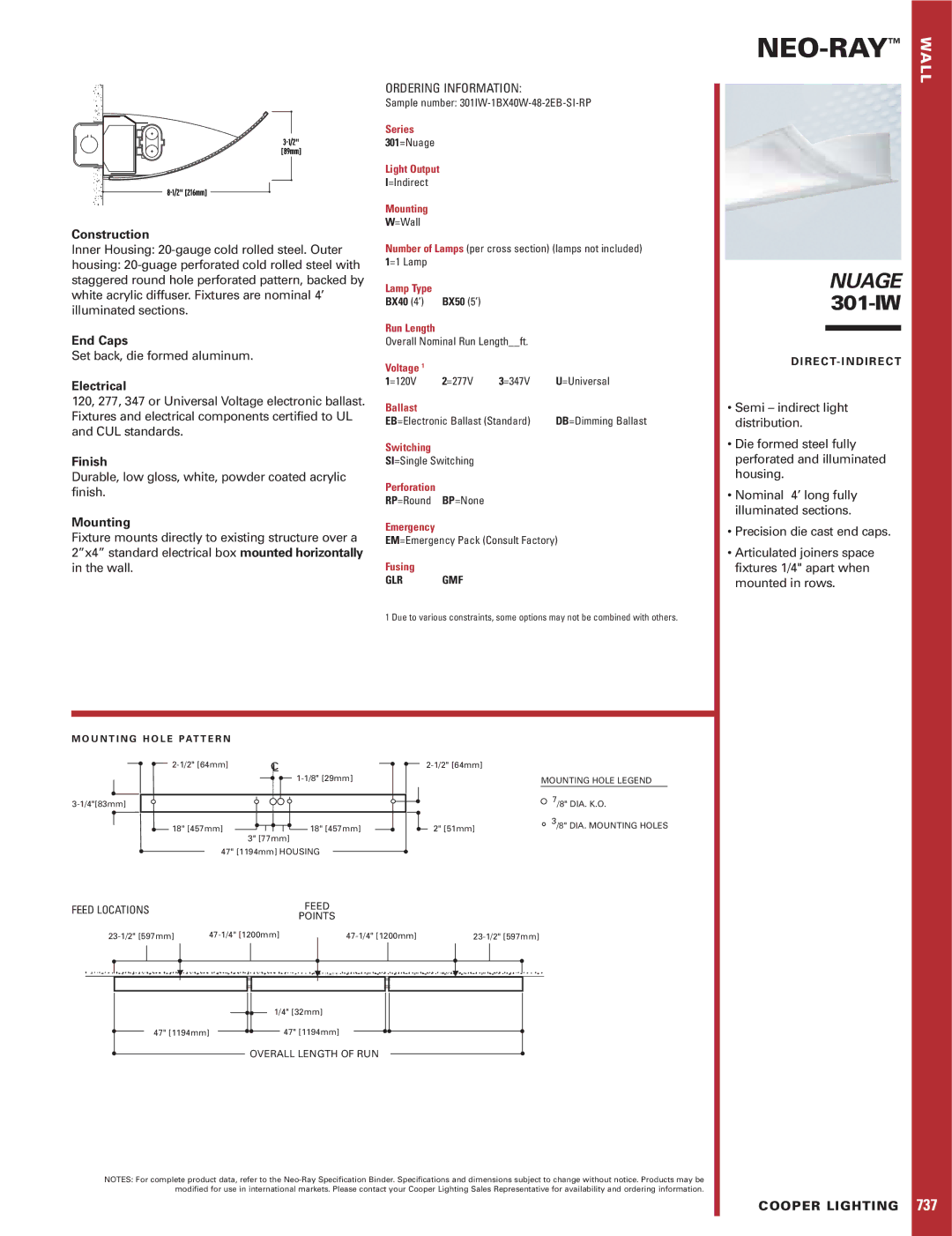

NEO-RAY

WALL



NUAGE 301-IW

D I R E C T- I N D I R E C T

Semi – indirect light distribution.

Die formed steel fully perforated and illuminated housing.

Nominal 4’ long fully illuminated sections.

Precision die cast end caps.

Articulated joiners space fixtures 1/4" apart when mounted in rows.

M O U N T I N G H O L E PAT T E R N

2-1/2" [64mm]

CL



1-1/8" [29mm]

3-1/4"[83mm]



18" [457mm]

18" [457mm]



3" [77mm]

47" [1194mm] HOUSING

2-1/2" [64mm]

MOUNTING HOLE LEGEND

7/8" DIA. K.O.

2" [51mm] 3/8" DIA. MOUNTING HOLES



FEED

FEED LOCATIONS

FEED LOCATIONS

POINTS





23-1/2" [597mm]

47-1/4" [1200mm]

47-1/4" [1200mm]

23-1/2" [597mm]

1/4" [32mm]

47" [1194mm] 47" [1194mm]

OVERALL LENGTH OF RUN

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

COOPER LIGHTING 737

Page 1
Image 1
Cooper Lighting specifications Neo-Ray, Nuage 301-IW

301-IW specifications
