Catalog #
Suspension Height
24"
or specify.

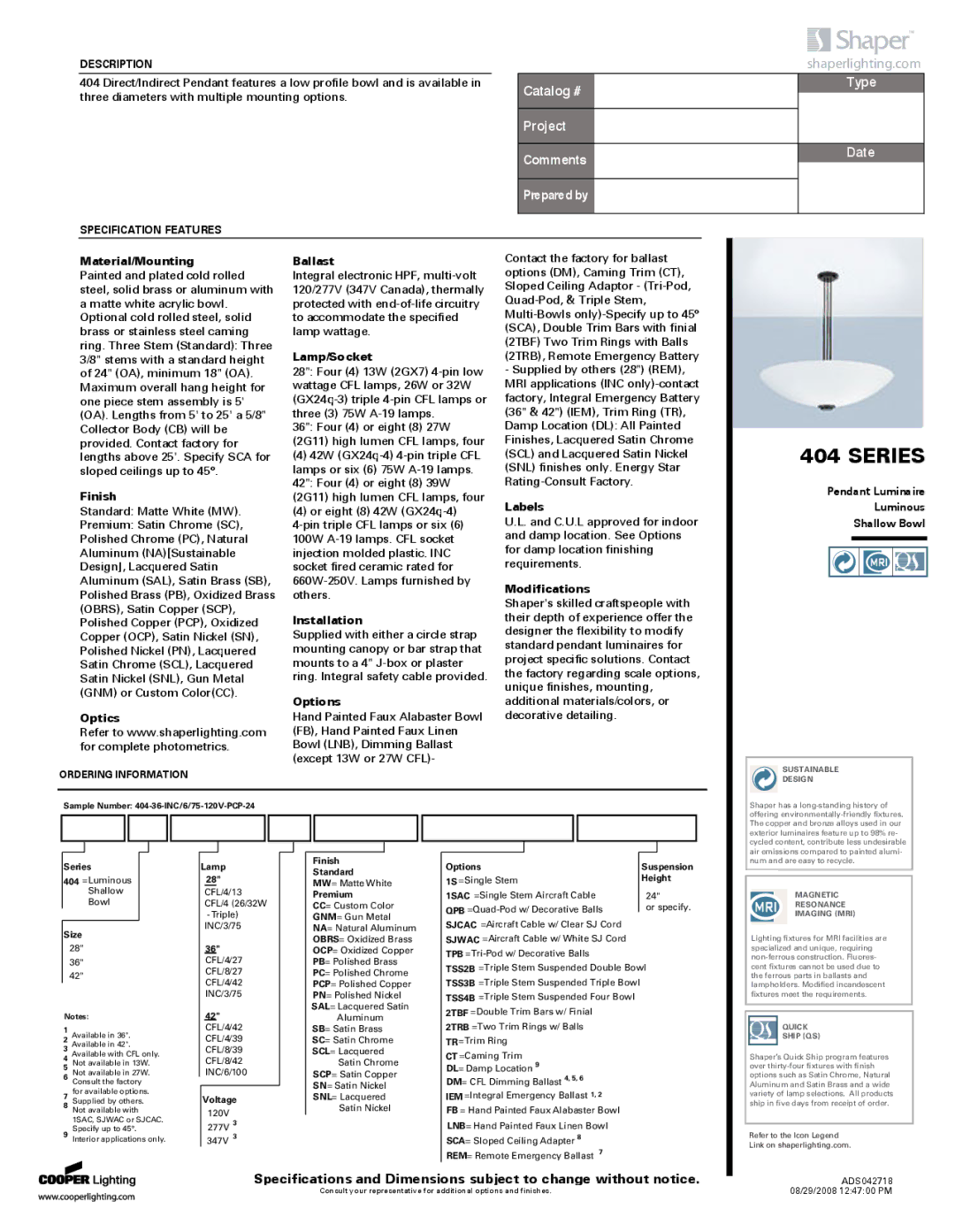

DESCRIPTION

404 Direct/Indirect Pendant features a low profile bowl and is available in three diameters with multiple mounting options.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

TypeDate

Material/Mounting

Painted and plated cold rolled steel, solid brass or aluminum with a matte white acrylic bowl. Optional cold rolled steel, solid brass or stainless steel caming ring. Three Stem (Standard): Three 3/8" stems with a standard height of 24" (OA), minimum 18" (OA). Maximum overall hang height for one piece stem assembly is 5' (OA). Lengths from 5' to 25' a 5/8" Collector Body (CB) will be provided. Contact factory for lengths above 25'. Specify SCA for sloped ceilings up to 45°.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Natural Aluminum (NA)[Sustainable Design], Lacquered Satin Aluminum (SAL), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL), Gun Metal (GNM) or Custom Color(CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

ORDERING INFORMATION

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

28": Four (4) 13W (2GX7) 4-pin low wattage CFL lamps, 26W or 32W (GX24q-3) triple 4-pin CFL lamps or three (3) 75W A-19 lamps.

36": Four (4) or eight (8) 27W (2G11) high lumen CFL lamps, four

(4)42W (GX24q-4) 4-pin triple CFL lamps or six (6) 75W A-19 lamps. 42": Four (4) or eight (8) 39W (2G11) high lumen CFL lamps, four

(4)or eight (8) 42W (GX24q-4) 4-pin triple CFL lamps or six (6) 100W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

Options

Hand Painted Faux Alabaster Bowl (FB), Hand Painted Faux Linen Bowl (LNB), Dimming Ballast (except 13W or 27W CFL)-

Contact the factory for ballast options (DM), Caming Trim (CT), Sloped Ceiling Adaptor - (Tri-Pod, Quad-Pod, & Triple Stem, Multi-Bowls only)-Specify up to 45° (SCA), Double Trim Bars with finial (2TBF) Two Trim Rings with Balls (2TRB), Remote Emergency Battery

-Supplied by others (28") (REM), MRI applications (INC only)-contact factory, Integral Emergency Battery (36" & 42") (IEM), Trim Ring (TR), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. Energy Star Rating-Consult Factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See Options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard pendant luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

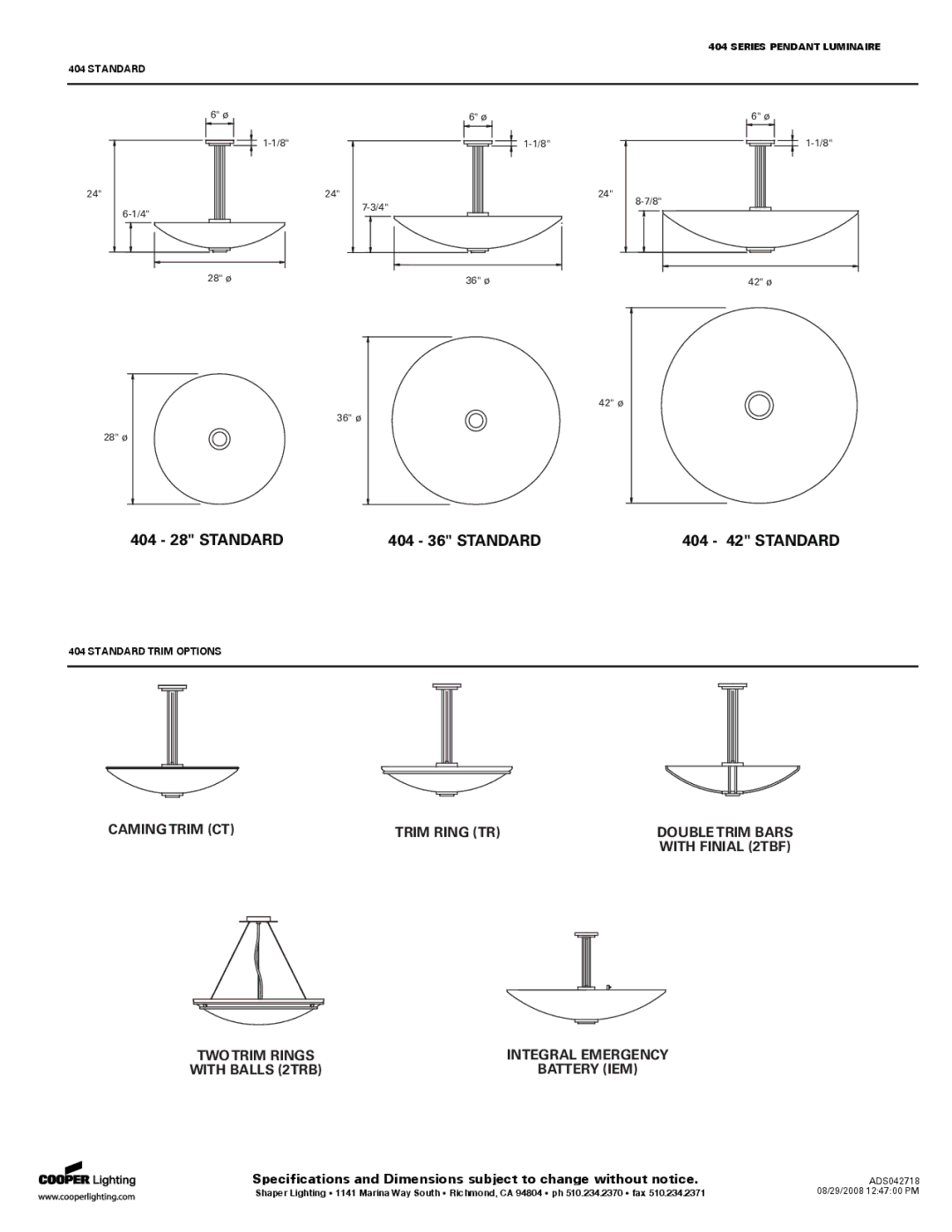

404 SERIES

Pendant Luminaire

Luminous

Shallow Bowl

SUSTAINABLE

DESIGN

Sample Number: 404-36-INC/6/75-120V-PCP-24

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi-

Series

404=Luminous Shallow Bowl

Size

28"

36"

42"

Notes:

1Available in 36".

2Available in 42".

3Available with CFL only.

4Not available in 13W.

5Not available in 27W.

6Consult the factory for available options.

7Supplied by others.

8Not available with 1SAC, SJWAC or SJCAC. Specify up to 45°.

9Interior applications only.

Lamp

28"

CFL/4/13 CFL/4 (26/32W

-Triple)

INC/3/75

36" CFL/4/27 CFL/8/27 CFL/4/42 INC/3/75

42" CFL/4/42 CFL/4/39 CFL/8/39 CFL/8/42 INC/6/100

Voltage

120V

277V 3

347V 3

Finish

Standard

MW= Matte White

Premium

CC= Custom Color

GNM= Gun Metal

NA= Natural Aluminum

OBRS= Oxidized Brass

OCP= Oxidized Copper

PB= Polished Brass

PC= Polished Chrome

PCP= Polished Copper

PN= Polished Nickel

SAL= Lacquered Satin

Aluminum

SB= Satin Brass

SC= Satin Chrome

SCL= Lacquered

Satin Chrome

SCP= Satin Copper

SN= Satin Nickel

SNL= Lacquered

Satin Nickel

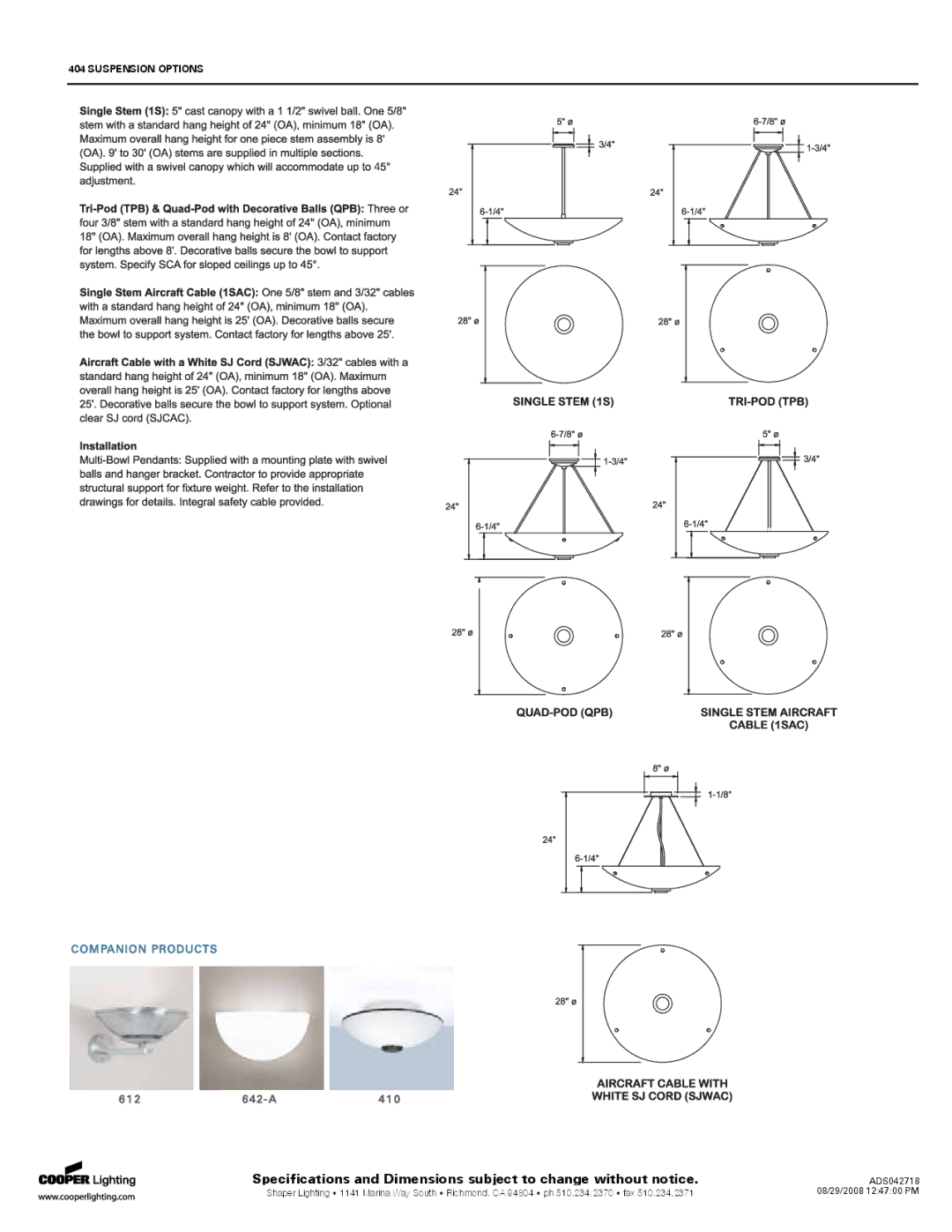

Options

1S =Single Stem

1SAC =Single Stem Aircraft Cable QPB =Quad-Pod w/ Decorative Balls SJCAC =Aircraft Cable w/ Clear SJ Cord SJWAC =Aircraft Cable w/ White SJ Cord TPB =Tri-Pod w/ Decorative Balls

TSS2B =Triple Stem Suspended Double Bowl TSS3B =Triple Stem Suspended Triple Bowl TSS4B =Triple Stem Suspended Four Bowl 2TBF =Double Trim Bars w/ Finial

2TRB =Two Trim Rings w/ Balls TR=Trim Ring

CT =Caming Trim DL= Damp Location 9

DM= CFL Dimming Ballast 4, 5, 6 IEM =Integral Emergency Ballast 1, 2

FB = Hand Painted Faux Alabaster Bowl LNB= Hand Painted Faux Linen Bowl SCA= Sloped Ceiling Adapter 8 REM= Remote Emergency Ballast 7

num and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non-ferrous construction. Fluores- cent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incandescent fixtures meet the requirements.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and Dimensions subject to change without notice.

Consult your representative for additional options and finishes.
