SHAPER

PENDANTS

416 SERIES

416 Luminous Shade Pendant.

6-1/4" ø

4-1/2" ø



2-1/8"

1/2"

24"

24"

12-1/2"

12-1/2"



9" ø

9" ø

9" ø

CFL

INC

Sample Number: 416-CFL/1/26-347V-SAL-__











Suspension

Series

Lamp

Voltage

Finish

Options

Height

416 =Luminous

CFL/1/26

120V

NA (standard),

1S

24"

Shade

CFL/1/32

277V1

CC, MW, PCP,

CSJ

Or Specify



CFL/1/42

347V1

SAL, SCP

PSS2SD





INC/1/100





PSS3SD











PSS4SD



Notes:







DL



1 Available with CFL only.







DM2



2 Consult the factory for available options.





REM3



3 Supplied by others.









4 For Stem mounting only. Specify up to 45°.



SCA4



MATERIAL

Solid aluminum or solid copper materials. Matte white acrylic diffuser. Supplied with an SJ cord assembly. Single stem is standard suspension. Minimum 18” (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided with option stem.

LAMP/SOCKET

One (1) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple CFL lamps or one (1) 100W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

6-1/4" ø

4-1/2" ø

2-1/8"

1/2"



24"

24"

9-1/2"

9-1/2"

3-1/2"

3-1/2"

4" ø

4" ø

14" ø

14" ø

417 CFL

417 INC

Sample Number: 417-HAL/1/50-120V-SAL-__

MATERIAL Solid aluminum materials. Matte

white acrylic, one piece. Single stem is standard suspension. Minimum 18” (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp

LAMP/SOCKET

One (1) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple CFL lamp or one (1) 100W A-19 or 50PAR20H lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish

417 SERIES

417 Direct/Indirect Luminous Pendant.

SeriesLamp

417=Direct/Indirect CFL/1/26

Luminous Bowl CFL/1/32 CFL/1/42 INC/1/100 HAL/1/50

Notes:

1 Available with CFL only.

2 Consult the factory for available options.

3 Supplied by others.

4 For Stem mounting only. Specify up to 45°.







Suspension

Voltage

Finish

Options

Height

120V

NA (standard),

1S

24"

277V1

CC, MW, PCP,

CSJ

Or Specify

347V1

SAL, SCP

SSS2SD







SSS3SD



SSS4SD

DL

DM2

REM3

SCA4

wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

details and options.

418 SERIES

418 Direct/Indirect Luminous Bowl Pendant.

6-1/4" ø

2-1/8"

24"

3-1/2"

3" ø

14-1/2" ø 14" ø CFL

Sample Number: 418-18-CFL/1/26-347V-SAL-__

Series

Size

Lamp

Voltage

418=

14"

CFL/1/26

120V

Direct/Indirect

18"

CFL/1/32

277V1

Luminous Bowl



INC/1/100

347V1

Notes:

1.Available with CFL only. Notes:

2.Consult the factory for available options.

3.Supplied by others.

4.For Stem mounting only. Specify up to 45°.

6-1/4" ø

2-1/8"

24"

5"

3" ø

18" ø 18" ø CFL





Suspension

Finish

Options

Height

NA

1S

24"

(standard),

CSJ

Or Specify

CC, MW,

SSS2SD



PCP, SAL,

SSS3SD



SCP

SSS4SD





DL





DM2





REM3





SCA4





CD



MATERIAL Solid aluminum materials. Matte white acrylic bowl and optional Cone Diffuser (CD). Single stem is standard suspension. Minimum 18” (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

LAMP/SOCKET One (1) 26W or 32W (GX24q-3)4-pin triple CFL lamp or one (1)100W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS

See page 1020 for finish details and options.

960COOPER LIGHTING

Page 1

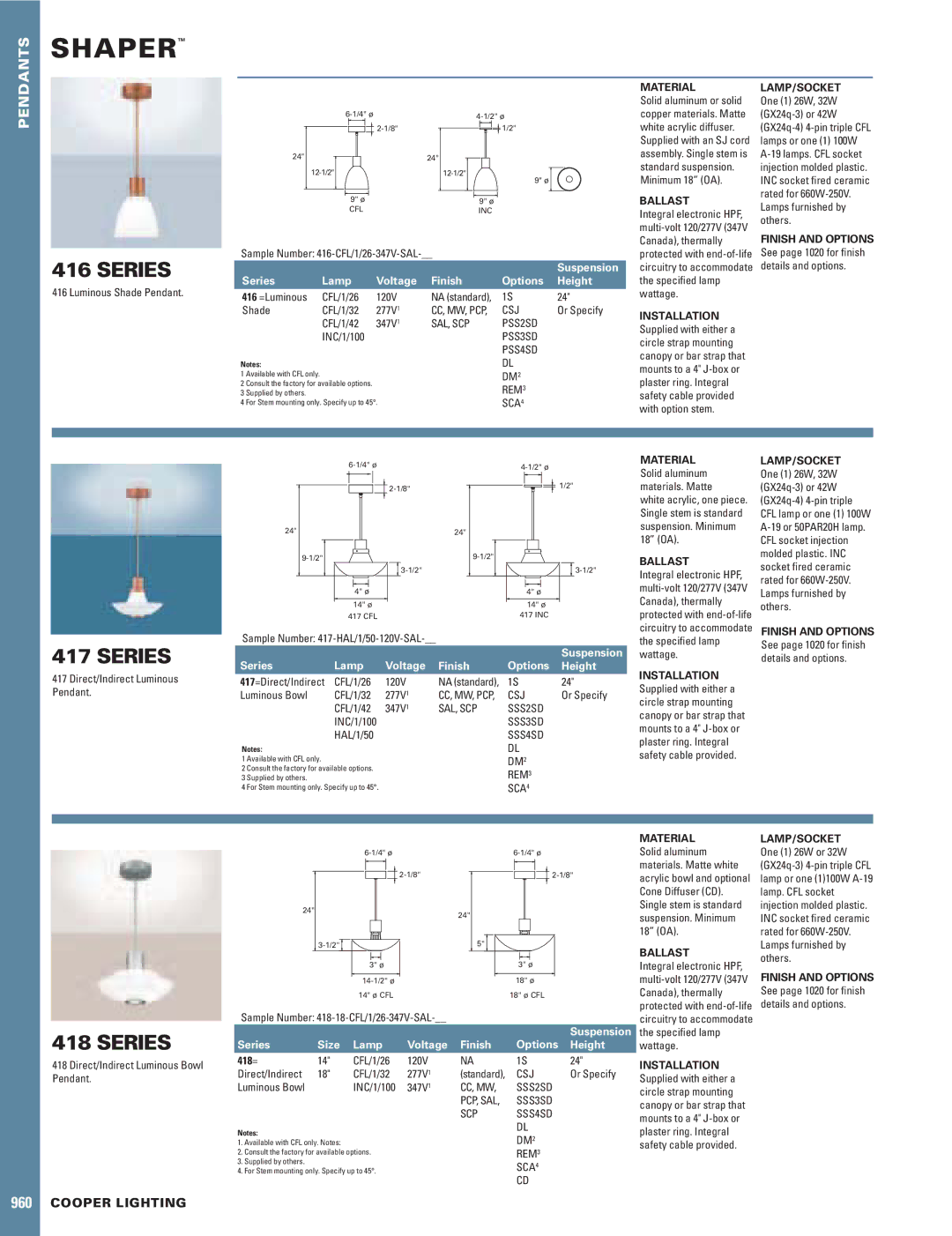

Image 1
Cooper Lighting 417SERIES, 418 SERIES manual Material, Ballast, Lamp/Socket, Finish and Options

417SERIES, 418 SERIES specifications
