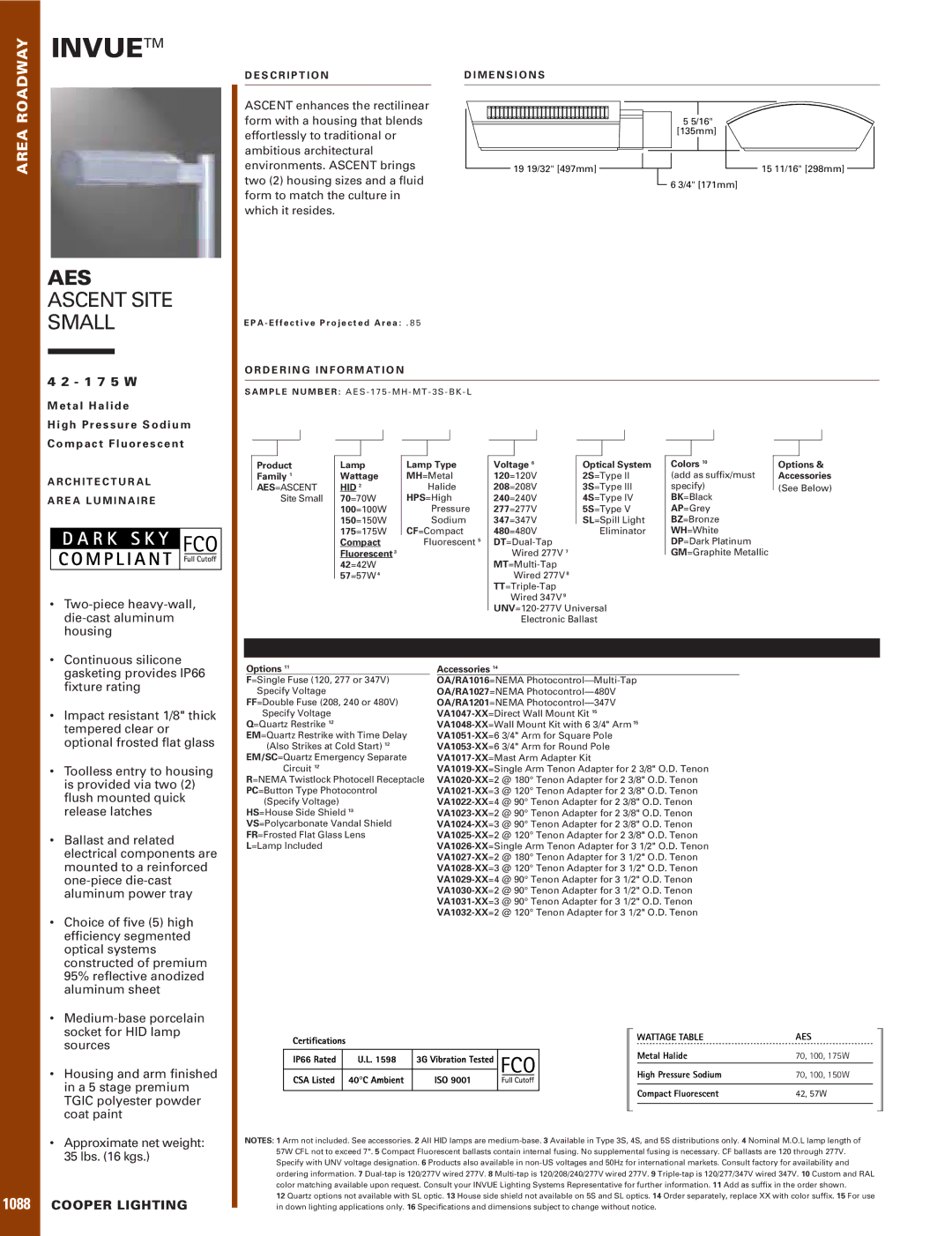

Cooper Lighting 42 - 175W dimensions Invuetm, Aes Ascent Site Small, Area Roadway, 4 2 - 1 7 5 W

AREA ROADWAY

INVUETM

AES ASCENT SITE SMALL

D E S C R I P T I O N

ASCENT enhances the rectilinear form with a housing that blends effortlessly to traditional or ambitious architectural environments. ASCENT brings two (2) housing sizes and a fluid form to match the culture in which it resides.

E P A - E f f e c t i v e P r o j e c t e d A r e a : . 8 5

D I M E N S I O N S

5 5/16" [135mm]

19 19/32" [497mm] 15 11/16" [298mm]

6 3/4" [171mm]

4 2 - 1 7 5 W

M e t a l H a l i d e

H i g h P r e s s u r e S o d i u m C o m p a c t F l u o r e s c e n t

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : A E S - 1 7 5 - M H - M T - 3 S - B K - L

A R C H I T E C T U R A L

A R E A L U M I N A I R E

•	Two-piece heavy-wall,
	die-cast aluminum
	housing
•	Continuous silicone

Product

Family 1

AES=ASCENT Site Small

Lamp

Wattage

HID 2

70=70W

100=100W

150=150W

175=175W

Compact Fluorescent 3 42=42W

57=57W 4

Lamp Type

MH=Metal

Halide

HPS=High

Pressure

Sodium

CF=Compact

Fluorescent 5

Voltage 6	Optical System
120=120V	2S=Type II
208=208V	3S=Type III
240=240V	4S=Type IV
277=277V	5S=Type V
347=347V	SL=Spill Light
480=480V	Eliminator
DT=Dual-Tap
Wired 277V 7
MT=Multi-Tap
Wired 277V 8
TT=Triple-Tap

Wired 347V 9

UNV=120-277V Universal

Electronic Ballast

Colors 10

(add as suffix/must specify)

BK=Black

AP=Grey BZ=Bronze WH=White DP=Dark Platinum GM=Graphite Metallic

Options & Accessories

(See Below)

gasketing provides IP66

fixture rating

• Impact resistant 1/8" thick

tempered clear or

optional frosted flat glass

• Toolless entry to housing

is provided via two (2)

flush mounted quick

release latches

• Ballast and related

electrical components are

mounted to a reinforced

one-piece die-cast

aluminum power tray

• Choice of five (5) high

efficiency segmented

optical systems

constructed of premium

95% reflective anodized

aluminum sheet

• Medium-base porcelain

socket for HID lamp

sources

• Housing and arm finished

in a 5 stage premium

TGIC polyester powder

coat paint

Options 11

F=Single Fuse (120, 277 or 347V) Specify Voltage

FF=Double Fuse (208, 240 or 480V) Specify Voltage

Q=Quartz Restrike 12

EM=Quartz Restrike with Time Delay (Also Strikes at Cold Start) 12 EM/SC=Quartz Emergency Separate

Circuit 12

R=NEMA Twistlock Photocell Receptacle PC=Button Type Photocontrol

(Specify Voltage)

HS=House Side Shield 13

VS=Polycarbonate Vandal Shield FR=Frosted Flat Glass Lens L=Lamp Included

Accessories 14

OA/RA1016=NEMA Photocontrol—Multi-Tap

OA/RA1027=NEMA Photocontrol—480V

OA/RA1201=NEMA Photocontrol—347V

VA1047-XX=Direct Wall Mount Kit 15

VA1048-XX=Wall Mount Kit with 6 3/4" Arm 15

VA1051-XX=6 3/4" Arm for Square Pole

VA1053-XX=6 3/4" Arm for Round Pole

VA1017-XX=Mast Arm Adapter Kit

VA1019-XX=Single Arm Tenon Adapter for 2 3/8" O.D. Tenon

VA1020-XX=2 @ 180° Tenon Adapter for 2 3/8" O.D. Tenon

VA1021-XX=3 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon

VA1022-XX=4 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon

VA1023-XX=2 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon

VA1024-XX=3 @ 90° Tenon Adapter for 2 3/8" O.D. Tenon

VA1025-XX=2 @ 120° Tenon Adapter for 2 3/8" O.D. Tenon

VA1026-XX=Single Arm Tenon Adapter for 3 1/2" O.D. Tenon

VA1027-XX=2 @ 180° Tenon Adapter for 3 1/2" O.D. Tenon

VA1028-XX=3 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon

VA1029-XX=4 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon

VA1030-XX=2 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon

VA1031-XX=3 @ 90° Tenon Adapter for 3 1/2" O.D. Tenon

VA1032-XX=2 @ 120° Tenon Adapter for 3 1/2" O.D. Tenon

WATTAGE TABLE	AES
Metal Halide	70, 100, 175W
High Pressure Sodium	70, 100, 150W
Compact Fluorescent	42, 57W

1088

• Approximate net weight:

35 lbs. (16 kgs.)

COOPER LIGHTING

NOTES: 1 Arm not included. See accessories. 2 All HID lamps are medium-base. 3 Available in Type 3S, 4S, and 5S distributions only. 4 Nominal M.O.L lamp length of 57W CFL not to exceed 7". 5 Compact Fluorescent ballasts contain internal fusing. No supplemental fusing is necessary. CF ballasts are 120 through 277V. Specify with UNV voltage designation. 6 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering information. 7 Dual-tap is 120/277V wired 277V. 8 Multi-tap is 120/208/240/277V wired 277V. 9 Triple-tap is 120/277/347V wired 347V. 10 Custom and RAL color matching available upon request. Consult your INVUE Lighting Systems Representative for further information. 11 Add as suffix in the order shown.

12 Quartz options not available with SL optic. 13 House side shield not available on 5S and SL optics. 14 Order separately, replace XX with color suffix. 15 For use in down lighting applications only. 16 Specifications and dimensions subject to change without notice.
