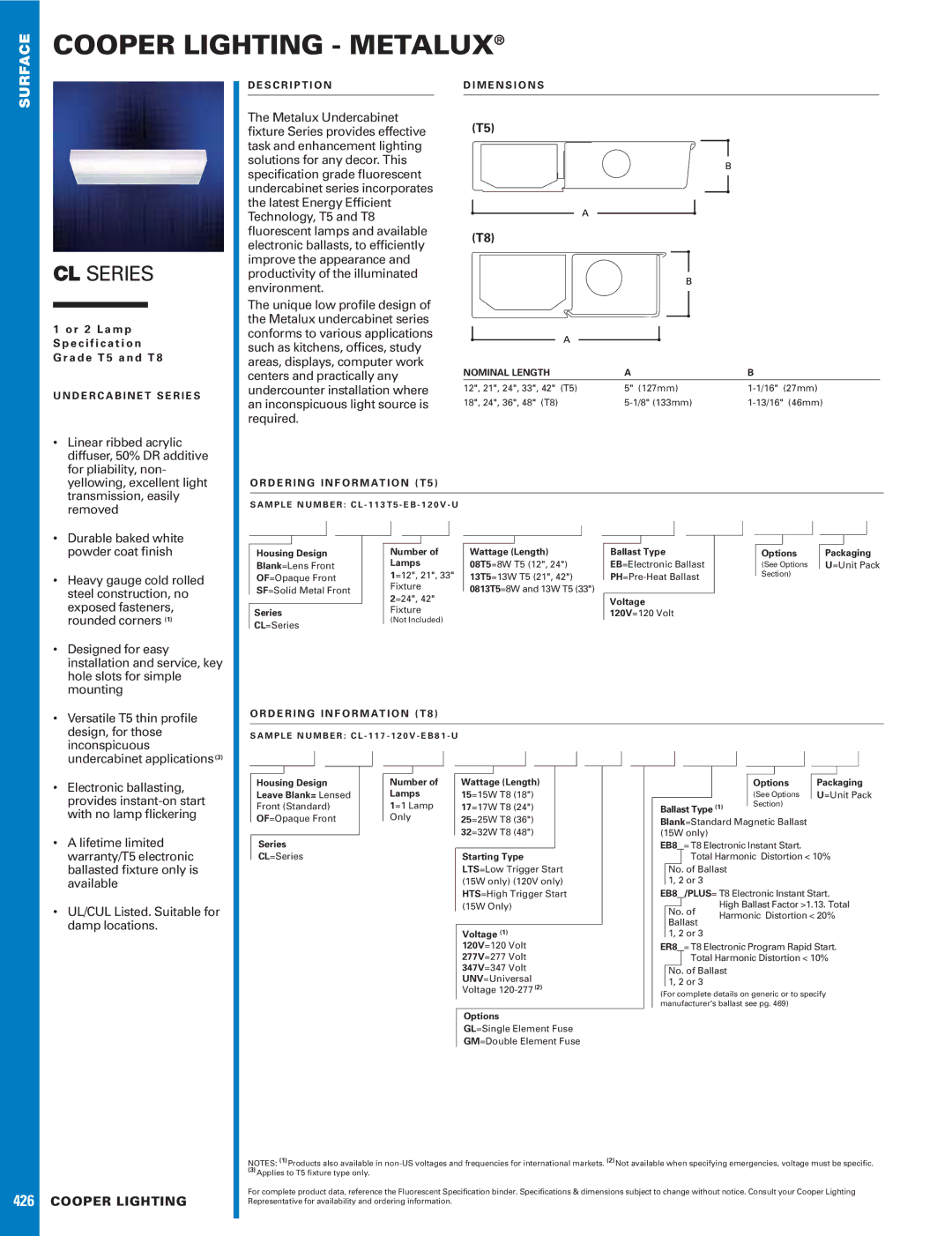

(T5)
NOMINAL LENGTH A B
12", 21", 24", 33", 42" (T5) 5" (127mm) 1-1/16" (27mm)
18", 24", 36", 48" (T8) 5-1/8" (133mm) 1-13/16" (46mm)
A
B
A
B
(T8)
SURFACE
426 COOPER LIGHTING
DIMENSIONS
Linear ribbed acrylic
diffuser, 50% DR additive
for pliability, non-
yellowing, excellent light
transmission, easily
removed
Durable baked white
powder coat finish
Heavy gauge cold rolled
steel construction, no
exposed fasteners,
rounded corners (1)
Designed for easy
installation and service, key
hole slots for simple
mounting
Versatile T5 thin profile
design, for those
inconspicuous
undercabinet applications(3)
Electronic ballasting,
provides instant-on start
with no lamp flickering
A lifetime limited
warranty/T5 electronic
ballasted fixture only is
available
UL/CUL Listed. Suitable for
damp locations.
DESCRIPTION
The Metalux Undercabinet
fixture Series provides effective
task and enhancement lighting
solutions for any decor. This
specification grade fluorescent
undercabinet series incorporates
the latest Energy Efficient
Technology, T5 and T8
fluorescent lamps and available
electronic ballasts, to efficiently
improve the appearance and
productivity of the illuminated
environment.
The unique low profile design of
the Metalux undercabinet series
conforms to various applications
such as kitchens, offices, study
areas, displays, computer work
centers and practically any
undercounter installation where
an inconspicuous light source is
required.

CL SERIES

1 or 2 Lamp
Specification
Grade T5 and T8
UNDERCABINET SERIES
NOTES: (1)Products also available in non-US voltages and frequencies for international markets. (2)Not available when specifying emergencies, voltage must be specific.
(3)Applies to T5 fixture type only.
For complete product data, reference the Fluorescent Specification binder. Specifications & dimensions subject to change without notice. Consult your Cooper Lighting
Representative for availability and ordering information.
Ballast Type
EB=Electronic Ballast
PH=Pre-Heat Ballast
ORDERING INFORMATION (T5)
SAMPLE NUMBER: CL-113T5-EB-120V-U
Wattage (Length)
08T5=8W T5 (12", 24")
13T5=13W T5 (21", 42")
0813T5=8W and 13W T5 (33")
Housing Design
Blank=Lens Front
OF=Opaque Front
SF=Solid Metal Front
ORDERING INFORMATION (T8)
SAMPLE NUMBER: CL-117-120V-EB81-U
Series
CL=Series
Number of
Lamps
1=12", 21", 33"
Fixture
2=24", 42"
Fixture
(Not Included)
Voltage
120V=120 Volt
Starting Type
LTS=Low Trigger Start
(15W only) (120V only)
HTS=High Trigger Start
(15W Only)
Wattage (Length)
15=15W T8 (18")
17=17W T8 (24")
25=25W T8 (36")
32=32W T8 (48")
Housing Design
Leave Blank= Lensed
Front (Standard)
OF=Opaque Front
Series
CL=Series
Number of
Lamps
1=1 Lamp
Only
Voltage (1)
120V=120 Volt
277V=277 Volt
347V=347 Volt
UNV=Universal
Voltage 120-277(2)
Options
GL=Single Element Fuse
GM=Double Element Fuse
Ballast Type (1)
Blank=Standard Magnetic Ballast
(15W only)
EB8 = T8 Electronic Instant Start.
Total Harmonic Distortion < 10%
EB8 /PLUS= T8 Electronic Instant Start.
High Ballast Factor >1.13. Total
Harmonic Distortion < 20%
ER8 = T8 Electronic Program Rapid Start.
Total Harmonic Distortion < 10%
(For complete details on generic or to specify
manufacturer’s ballast see pg. 469)
No. of Ballast
1, 2 or 3
No. of
Ballast
1, 2 or 3
No. of Ballast
1, 2 or 3
Options
(See Options
Section)
Packaging
U=Unit Pack
Options
(See Options
Section)
Packaging
U=Unit Pack
COOPER LIGHTING - METALUX®
