SHAPER

420 SERIES

420 Art Deco Ringed Baffle Pendant.

4-1/2" ø

1/2"



24"



18" ø 14" ø

10" ø

6"



420 STANDARD

Sample Number: 420-CFL/4/26-347V-SAL-__













Suspension



Series

Lamp

Voltage

Finish

Options

Height



420=Art Deco

CFL/4/26

120V

NA (standard),

AL

24"



Ringed Baffle

CFL/4/32

277V1

CC, MW, PCP,

DL

Or Specify





CFL/4/42

347V1

SAL, SCP

DM2







INC/3/150





REM3













SCA4



Notes:







SJCAC









SJWAC



1.

Available with CFL only.









2.

Consult the factory for available options.





SSS2B



3.

Supplied by others.







SSS3B



4. For Stem mounting only. Specify up to 45°.















SSS4B

MATERIAL

Solid aluminum matierals. White 1/2" x 1/2" cube cell louver. Optional Matte White Acrylic Lense (AL). Single stem is standard suspension. Minimum 18” (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION

Supplied with a bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

LAMP/SOCKET

Four (4) 26W, 32W (GX24q-3) or 42W

(GX24q-4) 4-pin triple CFL lamps or three (3) 150W A-21 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

PENDANTS

6-1/4" ø

4-1/2" ø

2-1/8"



1/2"





24"

24"



10-15/16"

10-15/16"

7-15/16"

7-15/16"





4" ø

4" ø

4" ø



CFL

INC



Sample Number: 422-CFL/1/18-347V-OBRS-__

MATERIAL

Solid brass or aluminum housing and clear sanded decorative trim. Matte acrylic 4" Dia. luminous cylinder. Supplied with a single stem with a standard overall hang height 24" (OA), minimum 18" (OA).

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life

LAMP/SOCKET

One (1) 18W (G24q-2), or 26W (G24q-3) 4-pin quad CFL lamp or one (1) 40W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

422 SERIES

422 Luminous Cylinder Pendant features Three Accent Trim Bars.

Series

Lamp

Voltage

422 =Luminous

CFL/1/18

120V

Cylinder w/

CFL/1/26

277V1

Trim Bars

INC/1/40

347V1

Notes:

1.Available with CFL only.

2.Consult the factory for available options.

3.Supplied by others.

4.Specify up to 45°.





Suspension

Finish

Options

Height

NA (standard),

CSJ

24"

CC, MW,

WSJ

Or Specify

OBRS, PB, PC,

DL



PCP, PN, SAL,

DM2



SB, SC, SCL,

REM3



SCP, SN, SNL

SCA4





FC



circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with either a circle strap mounting canopy or bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

429 SERIES

429 Solid Direct/Indirect Bowl with an illuminated baffle available in two diameters with multiple mounting options.

Notes:

1.Available in 24".

2.Available in 36".

3.24" only.

4.Consult the factory for available options.

5.Supplied by others.

6.Specify up to 45°.

6-7/8" ø

1-3/4"

24"24"

3-3/4"

24" ø 10" ø

36" ø 14" ø

24" STANDARD

Sample Number: 429-24-CFL/6/26-347V-OBRS-__

Series

Size

Lamp

Voltage

429=Solid Baffle w/

24"

CFL/6/261

120V

Illuminated Baffle

36"

CFL/6/321

277V





CFL/8/322

347V





CFL/8/422







INC/6/751







INC/6/1002



6-7/8" ø

MATERIAL

Painted and plated cold



1-3/4"

rolled steel with acrylic



baffle rings. Tri-pod is



standard suspension for



6 lamp versions. Quad-

5-5/8"

pod suspension is



standard for 8 lamp

versions.



BALLAST



Integral electronic HPF,



multi-volt 120/277V (347V



Canada), thermally



protected with end-of-life



circuitry to accommodate



the specified lamp

36" STANDARD

wattage.







Suspension

Finish

Options



Height

MW (standard),

CSS2B

DL

24"

CC, OBRS, PB3,

CSS3B

DM4

Or Specify

PC3, PCP, SAL,

CSS4B

REM5



SB, SC, SCL,

SJCAC

SCA6



SCP

SJWAC





INSTALLATION Supplied with a bar strap that mounts to a 4" J-box or plaster ring. Integral safety cable provided.

LAMP/SOCKET

24": Six (6) 26W or 32W (GX24q-3) 4-pin triple CFL lamps or six (6) 75W A-19 lamps.

36": Eight (8) 32W (GX24q-

3)or 42W (GX24q-4) 4-pin triple CFL lamps or six (6) 100W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

COOPER LIGHTING 961

Page 1

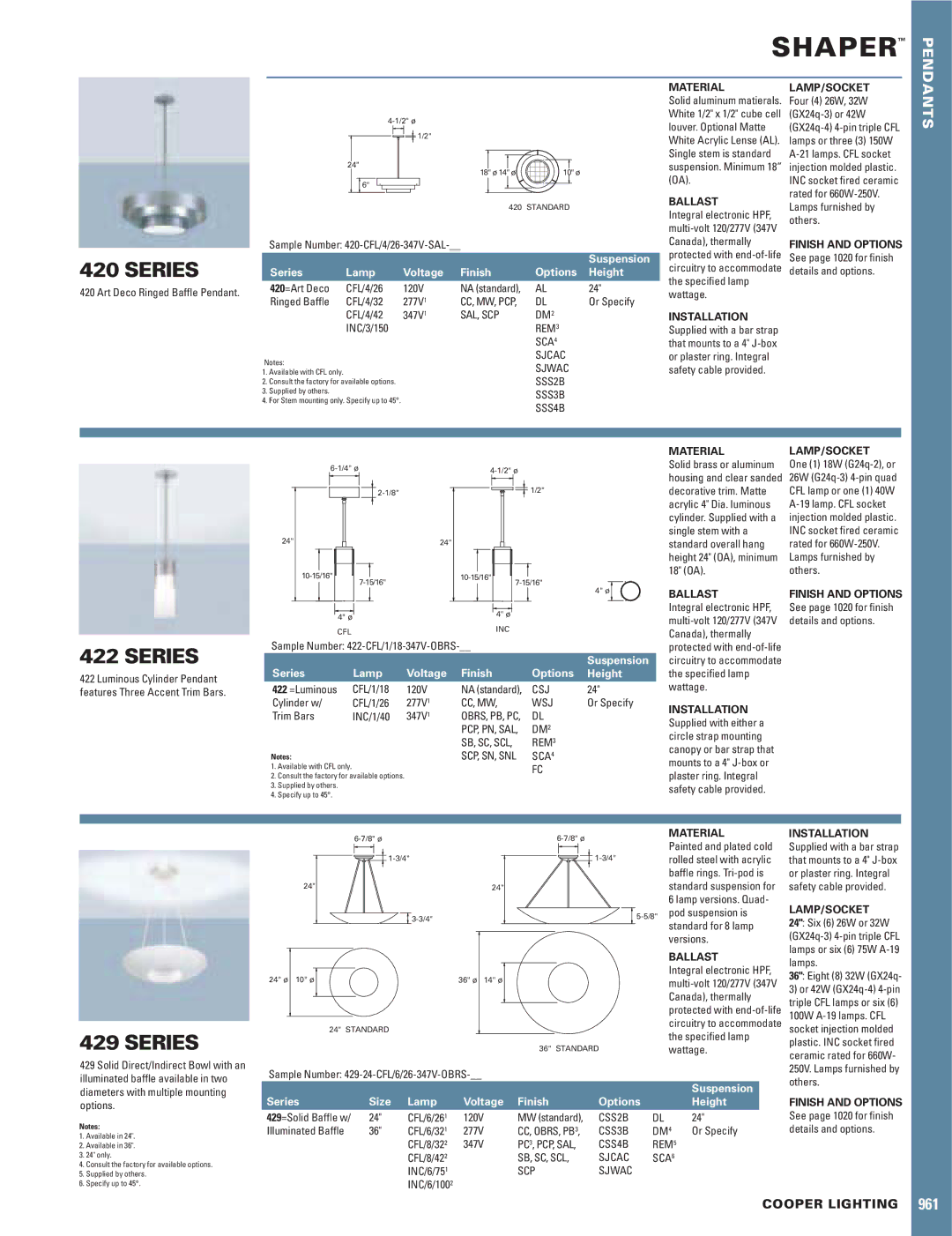

Image 1
