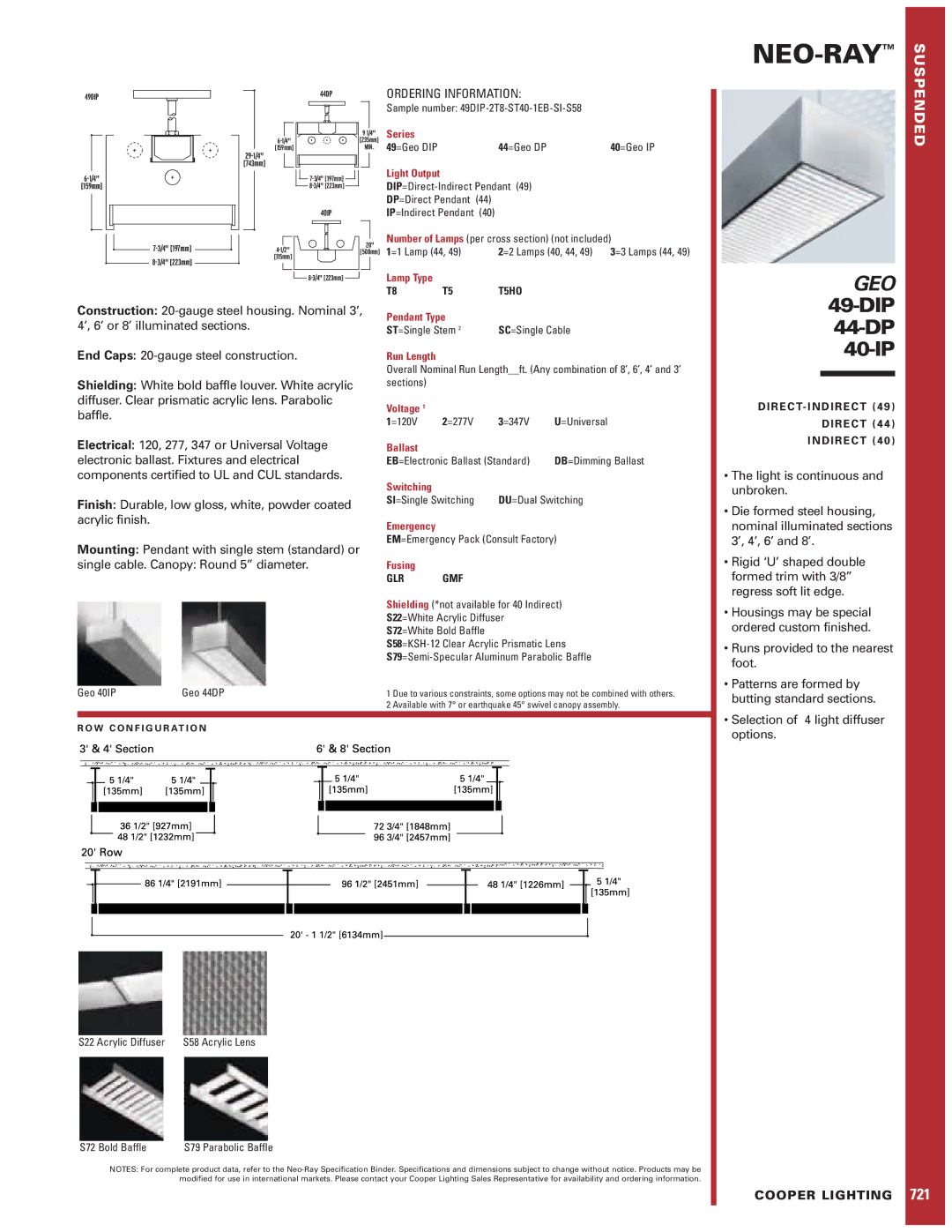

ORDERING INFORMATION:

49DIP

44DP



ORDERING INFORMATION:









Sample number: 49DIP-2T8-ST40-1EB-SI-S58







9 1/4"

Series









6-1/4"

[235mm]



44=Geo DP

40=Geo IP



[159mm]

MIN.

49=Geo DIP





29-1/4"













[743mm]



Light Output







6-1/4"

7-3/4" [197mm]









[159mm]

8-3/4" [223mm]



DIP=Direct-Indirect Pendant (49)









DP=Direct Pendant

(44)





40IP



IP=Indirect Pendant

(40)



7-3/4" [197mm]



20"

Number of Lamps (per cross section) (not included)

4-1/2"

1=1 Lamp (44, 49)

2=2 Lamps (40, 44, 49)

3=3 Lamps (44, 49)

[508mm]

8-3/4" [223mm]

[115mm]

























8-3/4" [223mm]



Lamp Type













T8

T5

T5HO



NEO-RAY

SUSPENDED



GEO

Construction: 20-gauge steel housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

End Caps: 20-gauge steel construction.

Shielding: White bold baffle louver. White acrylic diffuser. Clear prismatic acrylic lens. Parabolic baffle.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Pendant with single stem (standard) or

single cable. Canopy: Round 5” diameter.

Pendant Type

SC=Single Cable

ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

49-DIP

44-DP

40-IP

D I R E C T- I N D I R E C T ( 4 9 ) D I R E C T ( 4 4 )

I N D I R E C T ( 4 0 )

• The light is continuous and

unbroken.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Rigid ‘U’ shaped double

formed trim with 3/8”

regress soft lit edge.

Shielding (*not available for 40 Indirect)

S22=White Acrylic Diffuser

S72=White Bold Baffle

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-Specular Aluminum Parabolic Baffle

Geo 40IP

Geo 44DP

1

Due to various constraints, some options may not be combined with others.





2

Available with 7° or earthquake 45° swivel canopy assembly.

R O W C O N F I G U R AT I O N

S22 Acrylic Diffuser

S58 Acrylic Lens

S72 Bold Baffle

S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

• Housings may be special

ordered custom finished.

• Runs provided to the nearest

foot.

• Patterns are formed by

butting standard sections.

• Selection of 4 light diffuser

options.

COOPER LIGHTING 721
