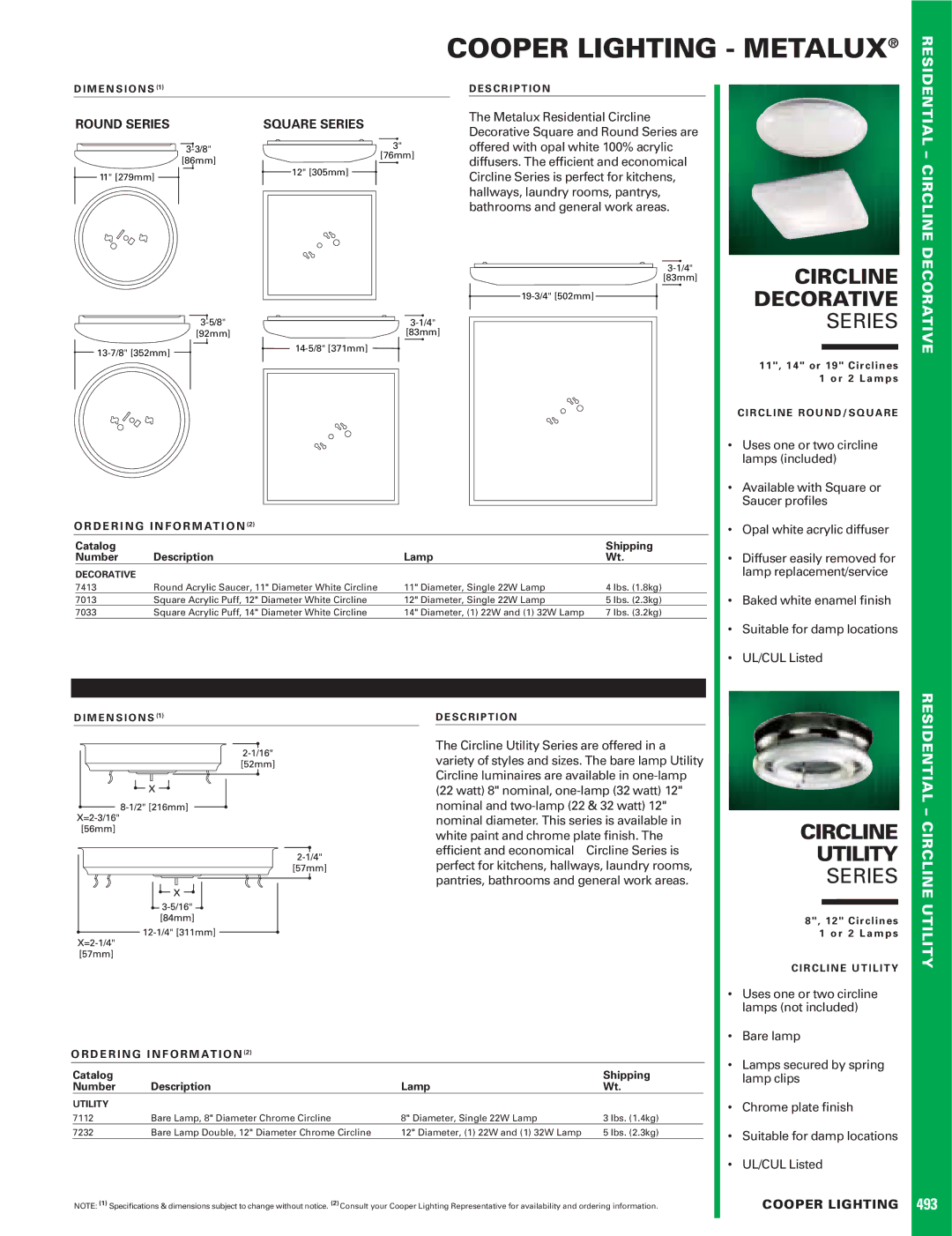

COOPER LIGHTING - METALUX®

D I M E N S I O N S (1)

ROUND SERIES

SQUARE SERIES



3-3/8"

3"



[76mm]



[86mm]





11" [279mm]



12" [305mm]





3-5/8"

3-1/4"

[92mm]

[83mm]

13-7/8" [352mm]

14-5/8" [371mm]



D E S C R I P T I O N

The Metalux Residential Circline Decorative Square and Round Series are offered with opal white 100% acrylic diffusers. The efficient and economical Circline Series is perfect for kitchens, hallways, laundry rooms, pantrys, bathrooms and general work areas.

3-1/4"

[83mm]

19-3/4" [502mm]

CIRCLINE DECORATIVE SERIES

11", 14" or 19" Circlines 1 o r 2 L a m p s

C I R C L I N E R O U N D / S Q U A R E

O R D E R I N G I N F O R M AT I O N (2)

Catalog





Shipping

Number

Description

Lamp

Wt.

DECORATIVE







7413

Round Acrylic Saucer, 11" Diameter White Circline

11" Diameter, Single 22W Lamp

4 lbs. (1.8kg)

7013

Square Acrylic Puff, 12" Diameter White Circline

12" Diameter, Single 22W Lamp

5 lbs. (2.3kg)

7033

Square Acrylic Puff, 14" Diameter White Circline

14" Diameter, (1) 22W and (1) 32W Lamp

7 lbs. (3.2kg)

D I M E N S I O N S (1)

D E S C R I P T I O N



The Circline Utility Series are offered in a



variety of styles and sizes. The bare lamp Utility



Circline luminaires are available in one-lamp



(22 watt) 8" nominal, one-lamp (32 watt) 12"



nominal and two-lamp (22 & 32 watt) 12"



nominal diameter. This series is available in



white paint and chrome plate finish. The



efficient and economical Circline Series is



perfect for kitchens, hallways, laundry rooms,



pantries, bathrooms and general work areas.

O R D E R I N G I N F O R M AT I O N (2)

Catalog





Shipping

Number

Description

Lamp

Wt.

UTILITY







7112

Bare Lamp, 8" Diameter Chrome Circline

8" Diameter, Single 22W Lamp

3 lbs. (1.4kg)

7232

Bare Lamp Double, 12" Diameter Chrome Circline

12" Diameter, (1) 22W and (1) 32W Lamp

5 lbs. (2.3kg)

Uses one or two circline lamps (included)

Available with Square or Saucer profiles

Opal white acrylic diffuser

Diffuser easily removed for lamp replacement/service

Baked white enamel finish

Suitable for damp locations

UL/CUL Listed

CIRCLINE

UTILITY

SERIES

8", 12" Circlines 1 o r 2 L a m p s

C I R C L I N E U T I L I T Y

Uses one or two circline lamps (not included)

Bare lamp

Lamps secured by spring lamp clips

Chrome plate finish

Suitable for damp locations

RESIDENTIAL – CIRCLINE DECORATIVE

RESIDENTIAL – CIRCLINE UTILITY

• UL/CUL Listed

NOTE: (1) Specifications & dimensions subject to change without notice. (2) Consult your Cooper Lighting Representative for availability and ordering information.

COOPER LIGHTING

493

Page 1
