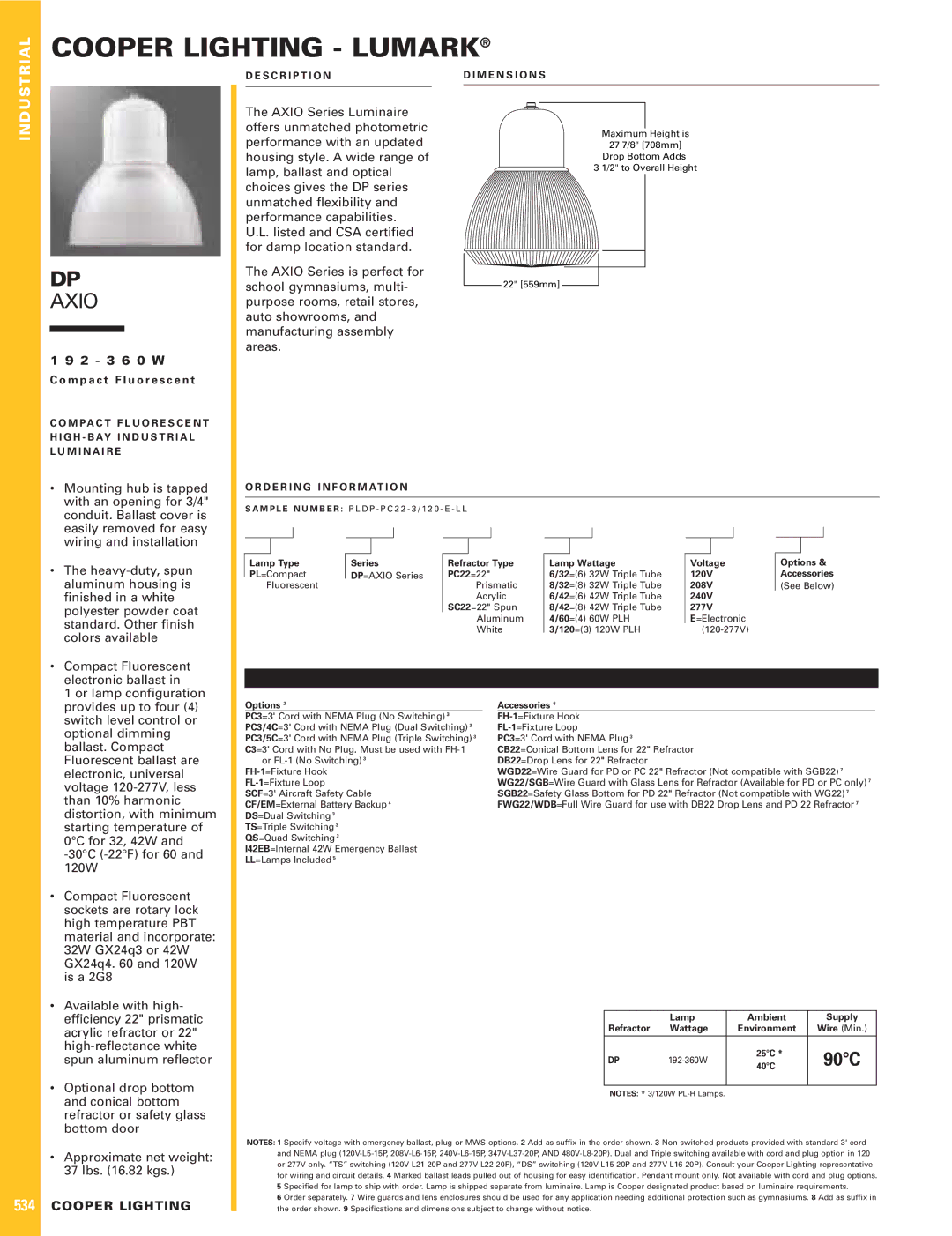

COOPER LIGHTING - LUMARK®
DP
AXIO
1 9 2 - 3 6 0 W
C o m p a c t F l u o r e s c e n t
C O M PA C T F L U O R E S C E N T H I G H - B AY I N D U S T R I A L
L U M I N A I R E
D E S C R I P T I O N
The AXIO Series Luminaire offers unmatched photometric performance with an updated housing style. A wide range of lamp, ballast and optical choices gives the DP series unmatched flexibility and performance capabilities.
U.L. listed and CSA certified for damp location standard.
The AXIO Series is perfect for school gymnasiums, multi- purpose rooms, retail stores, auto showrooms, and manufacturing assembly areas.
D I M E N S I O N S
Maximum Height is
27 7/8" [708mm] Drop Bottom Adds
3 1/2" to Overall Height
22" [559mm]
INDUSTRIAL
534
•Mounting hub is tapped with an opening for 3/4" conduit. Ballast cover is easily removed for easy wiring and installation
•The
•Compact Fluorescent electronic ballast in
1 or lamp configuration provides up to four (4) switch level control or optional dimming ballast. Compact Fluorescent ballast are electronic, universal voltage
•Compact Fluorescent sockets are rotary lock high temperature PBT material and incorporate: 32W GX24q3 or 42W GX24q4. 60 and 120W is a 2G8
•Available with high- efficiency 22" prismatic acrylic refractor or 22"
•Optional drop bottom and conical bottom refractor or safety glass bottom door
•Approximate net weight: 37 lbs. (16.82 kgs.)
COOPER LIGHTING
O R D E R I N G I N F O R M AT I O N
S A M P L E N U M B E R : P L D P - P C 2 2 - 3 / 1 2 0 - E - L L
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Lamp Type | Series | Refractor Type | Lamp Wattage | Voltage | Options & | |||||||||||||
PL=Compact | DP=AXIO Series | PC22=22" | 6/32=(6) 32W Triple Tube | 120V | Accessories | |||||||||||||
Fluorescent |
|
|
|
| Prismatic | 8/32=(8) 32W | Triple Tube | 208V | (See Below) | |||||||||
|
|
|
|
|
|
| Acrylic | 6/42=(6) 42W | Triple Tube | 240V |
|
|
| |||||
|
|
|
|
|
| SC22=22" Spun | 8/42=(8) 42W | Triple Tube | 277V |
|
|
| ||||||
|
|
|
|
|
|
| Aluminum | 4/60=(4) 60W | PLH | E=Electronic |
|
|
| |||||
|
|
|
|
|
|
| White | 3/120=(3) 120W PLH |
|
|
| |||||||
Options 2 | Accessories 6 | |
PC3=3' Cord with NEMA Plug (No Switching) 3 |
| |
PC3/4C=3' Cord with NEMA Plug (Dual Switching) 3 | ||
PC3/5C=3' Cord with NEMA Plug (Triple Switching) 3 | PC3=3' Cord with NEMA Plug 3 | |
C3=3' Cord with No Plug. Must be used with | CB22=Conical Bottom Lens for 22" Refractor | |
or | DB22=Drop Lens for 22" Refractor | |
WGD22=Wire Guard for PD or PC 22" Refractor (Not compatible with SGB22) 7 | ||
WG22/SGB=Wire Guard with Glass Lens for Refractor (Available for PD or PC only) 7 | ||
SCF=3' Aircraft Safety Cable | SGB22=Safety Glass Bottom for PD 22" Refractor (Not compatible with WG22) 7 | |
CF/EM=External Battery Backup 4 | FWG22/WDB=Full Wire Guard for use with DB22 Drop Lens and PD 22 Refractor 7 | |
DS=Dual Switching 3 |
|
|
TS=Triple Switching 3 |
|
|
QS=Quad Switching 3 |
|
|
I42EB=Internal 42W Emergency Ballast |
|
|
LL=Lamps Included 5 |
|
|
| Lamp | Ambient | Supply |
Refractor | Wattage | Environment | Wire (Min.) |
|
|
|
|
DP | 25°C * | 90°C | |
40°C | |||
|
| ||
|
|
|
|
NOTES: * 3/120W
NOTES: 1 Specify voltage with emergency ballast, plug or MWS options. 2 Add as suffix in the order shown. 3
6 Order separately. 7 Wire guards and lens enclosures should be used for any application needing additional protection such as gymnasiums. 8 Add as suffix in the order shown. 9 Specifications and dimensions subject to change without notice.
