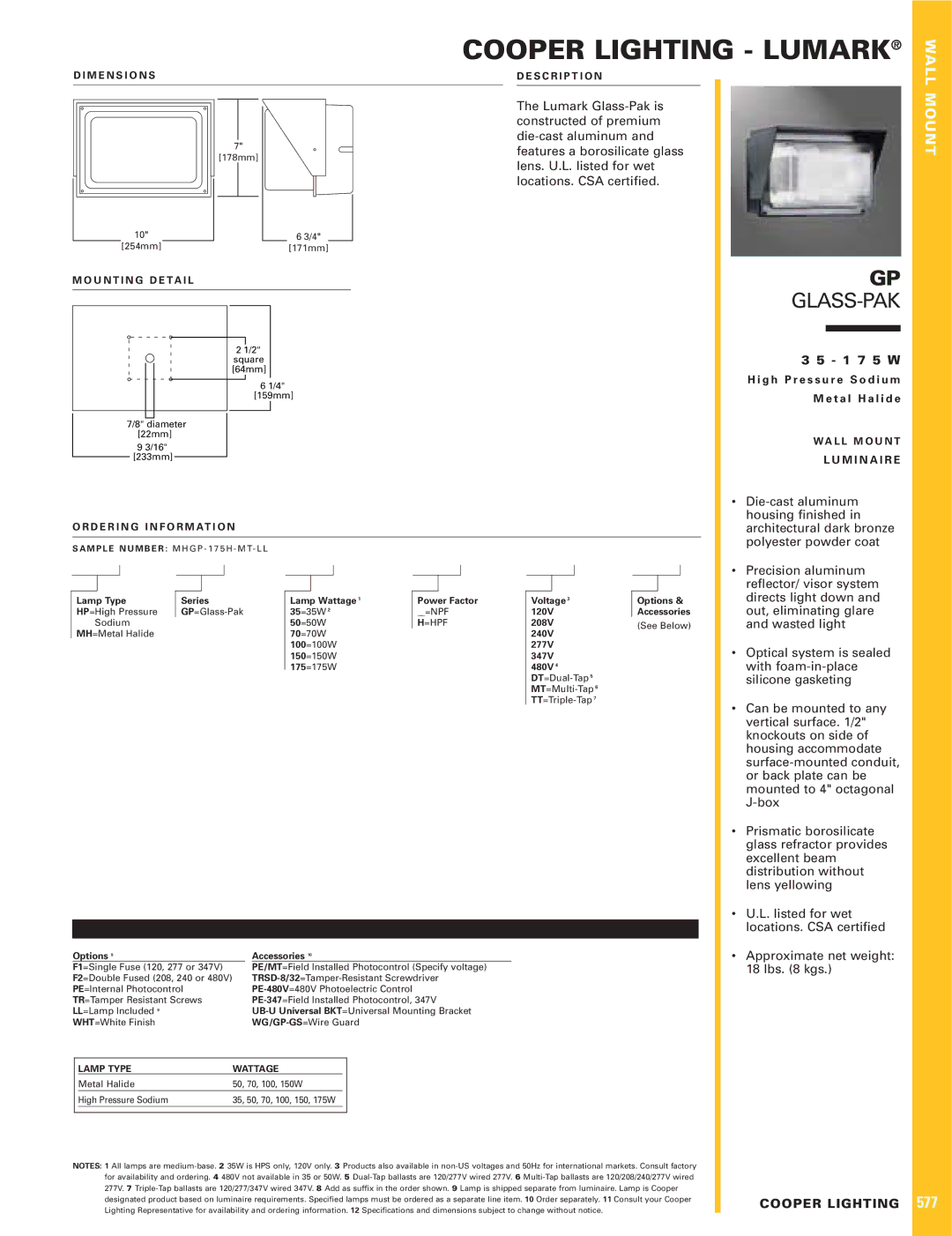

COOPER LIGHTING - LUMARK®

D I M E N S I O N SD E S C R I P T I O N

WALL

10"

[254mm]

7"

[178mm]

6 3/4"

[171mm]

The Lumark Glass-Pak is constructed of premium die-cast aluminum and features a borosilicate glass lens. U.L. listed for wet locations. CSA certified.

MOUNT

M O U N T I N G D E TA I L

2 1/2" square [64mm]

61/4"

[159mm]

7/8" diameter [22mm]

93/16"

[233mm]

O R D E R I N G I N F O R M AT I O N

S A M P L E N U M B E R : M H G P - 1 7 5 H - M T- L L

Lamp Type	Series	Lamp Wattage 1	Power Factor	Voltage 3	Options &
HP=High Pressure	GP=Glass-Pak	35=35W 2	__=NPF	120V	Accessories
Sodium		50=50W	H=HPF	208V	(See Below)
MH=Metal Halide		70=70W		240V
		100=100W		277V
		150=150W		347V
		175=175W		480V 4
				DT=Dual-Tap 5
				MT=Multi-Tap 6
				TT=Triple-Tap 7

Options 8			Accessories 10
F1=Single Fuse (120, 277 or 347V)				PE/MT=Field Installed Photocontrol (Specify voltage)
F2=Double Fused (208, 240 or 480V)			TRSD-8/32=Tamper-Resistant Screwdriver
PE=Internal Photocontrol			PE-480V=480V Photoelectric Control
TR=Tamper Resistant Screws			PE-347=Field Installed Photocontrol, 347V
LL=Lamp Included 9			UB-U Universal BKT=Universal Mounting Bracket
WHT=White Finish			WG/GP-GS=Wire Guard
	LAMP TYPE	WATTAGE
	Metal Halide	50, 70, 100, 150W
	High Pressure Sodium	35, 50, 70, 100, 150, 175W

NOTES: 1 All lamps are medium-base. 2 35W is HPS only, 120V only. 3 Products also available in non-US voltages and 50Hz for international markets. Consult factory for availability and ordering. 4 480V not available in 35 or 50W. 5 Dual-Tap ballasts are 120/277V wired 277V. 6 Multi-Tap ballasts are 120/208/240/277V wired 277V. 7 Triple-Tap ballasts are 120/277/347V wired 347V. 8 Add as suffix in the order shown. 9 Lamp is shipped separate from luminaire. Lamp is Cooper designated product based on luminaire requirements. Specified lamps must be ordered as a separate line item. 10 Order separately. 11 Consult your Cooper Lighting Representative for availability and ordering information. 12 Specifications and dimensions subject to change without notice.

GP

GLASS-PAK

3 5 - 1 7 5 W H i g h P r e s s u r e S o d i u m M e t a l H a l i d e

W A L L M O U N T

L U M I N A I R E

•Die-cast aluminum housing finished in architectural dark bronze polyester powder coat

•Precision aluminum reflector/ visor system directs light down and out, eliminating glare and wasted light

•Optical system is sealed with foam-in-place silicone gasketing

•Can be mounted to any vertical surface. 1/2" knockouts on side of housing accommodate surface-mounted conduit, or back plate can be mounted to 4" octagonal J-box

•Prismatic borosilicate glass refractor provides excellent beam distribution without lens yellowing

•U.L. listed for wet locations. CSA certified

•Approximate net weight: 18 lbs. (8 kgs.)

COOPER LIGHTING

577
