DESCRIPTION

600 Luminous Square Vanity Luminaire. ADA complaint.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or plated cold-rolled steel, brass, copper or aluminum end caps and an aluminum body with a extruded matte white acrylic diffuser.

Finish

Standard: Natural Aluminum (NA). [Sustainable Design] Premium: Matte White (MW), Lacquered Satin Aluminum (SAL), Satin Stainless Steel (SSS), Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

24":Two (2) 14WT5 linear fluorescent lamps.

36":Two (2) 21WT5 linear fluorescent lamps. Fluorescent socket injection molded plastic. Lamps furnished by others.

Installation

Supplied with a universal mounting back for a standard 3" plaster ring or switch-box. 36" Luminaire has additional mounting holes to ensure secure attachment. Horizontal or vertical mount.

Options

Dimming Ballast - Contact factory for ballast options (DM),

Remote Emergency Battery - Supplied by others (REM), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

600 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s S q u a r e Va n i t y

AMERICAN DISABILITIES

ACT (ADA)

ORDERING INFORMATION

Sample Number: 600-24-T5/2/14-277V-PCP

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ENERGY

STAR

Series











Size

Lamp



600 =Luminous

24"

T5/2/14

1

Square

36"

T5/2/21

2

Vanity











Notes:

1Available in 24".

2Available in 36".

3Consult the factory for available options.

4Supplied by others.

Voltage

120V

277V

347V

Finish

Standard

NA =Natural Aluminum

Premium

CC=Custom Color

MW=Matte White

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SC =Satin Chrome

SCP =Satin Copper

SCL =Lacquered Satin Chrome

SN=Satin Nickel

SNL =Lacquered Satin Nickel

SSS=Satin Stainless Steel

Options

DL =Damp Location

DM =CFL Dimming

Ballast 3

REM =Remote

Emergency

Battery 4

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star rating.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass and a wide variety of lamp selections. All products ship in five days from receipt of order.

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042648 2008-09-11 10:50:44

Page 1

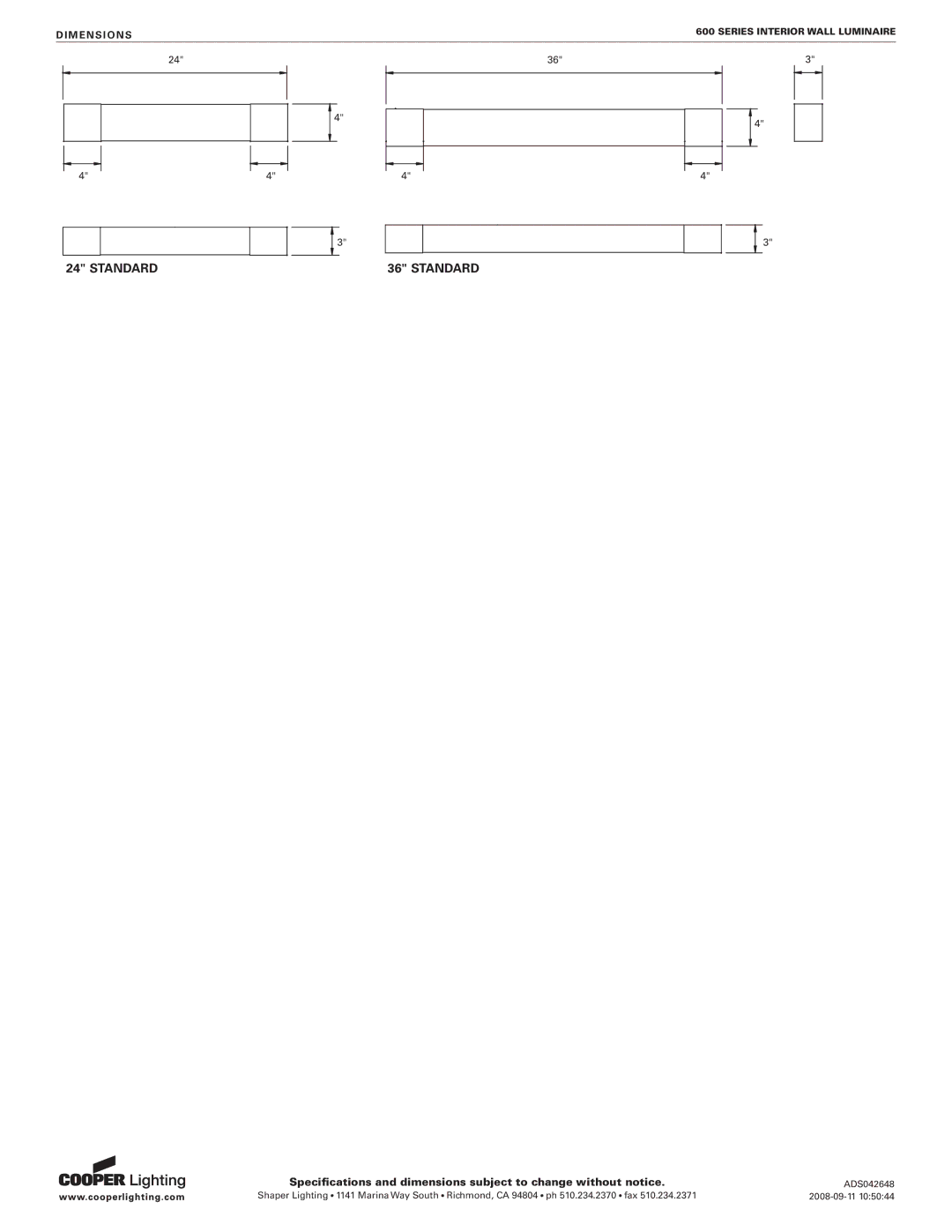

Image 1
