DESCRIPTION

601 Mirror Luminaire with Integral Vertical or Horizontal Lamp Extrusion(s) with or without a shelf. ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Solid extruded aluminum lamp housing with an extruded prismatic acrylic lense and matte white diffuser. Formed aluminum cross bracing and mounting structure. Mirror by others.

Finish

Standard: Natural Aluminum (NA) [Sustainable Design]. Premium: Matte White (MW), Lacquered Satin Aluminum (SAL), Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Oxidized Brass (OBRS), Gun Metal (GNM), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt

ORDERING INFORMATION

120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

Vertical Lamp Orientation 24":Two (2) 17WT8 linear fluorescent lamps.

36":Two (2) 25WT8 linear fluorescent lamps.

48":Two (2) 32WT8 linear fluorescent lamps. Horizontal Lamp Orientation 34": One (1) 17WT8 linear fluorescent lamp. Fluorescent socket injection molded plastic. Lamps furnished by others.

Installation

Housing: Supplied with four (4) 1/4" bolt holes for secure installation. Provided with one or more universal circle strap(s) for standard J-Box (Refer to J-Box location drawings). Mirror (supplied by others) fits into groove for secure assembly.

Options

Dimming Ballast - Contact factory for ballast options (DM),

Integral Grounded GFI Receptacle (RCP), Remote Emergency Battery - Supplied by others (REM), Shelf Vertical only,

-4" (SH4), Shelf Vertical only, - 6" (SH6), Damp Location (DL): All painted finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. Energy Star Rating - Contact factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See Options for damp location finishing requirements. ADA compliant except with option SH6.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

601 SERIES

I n t e r i o r Wa l l L u m i n a i r e M i r r o r L u m i n a i r e w i t h I n t e g r a l L a m p s

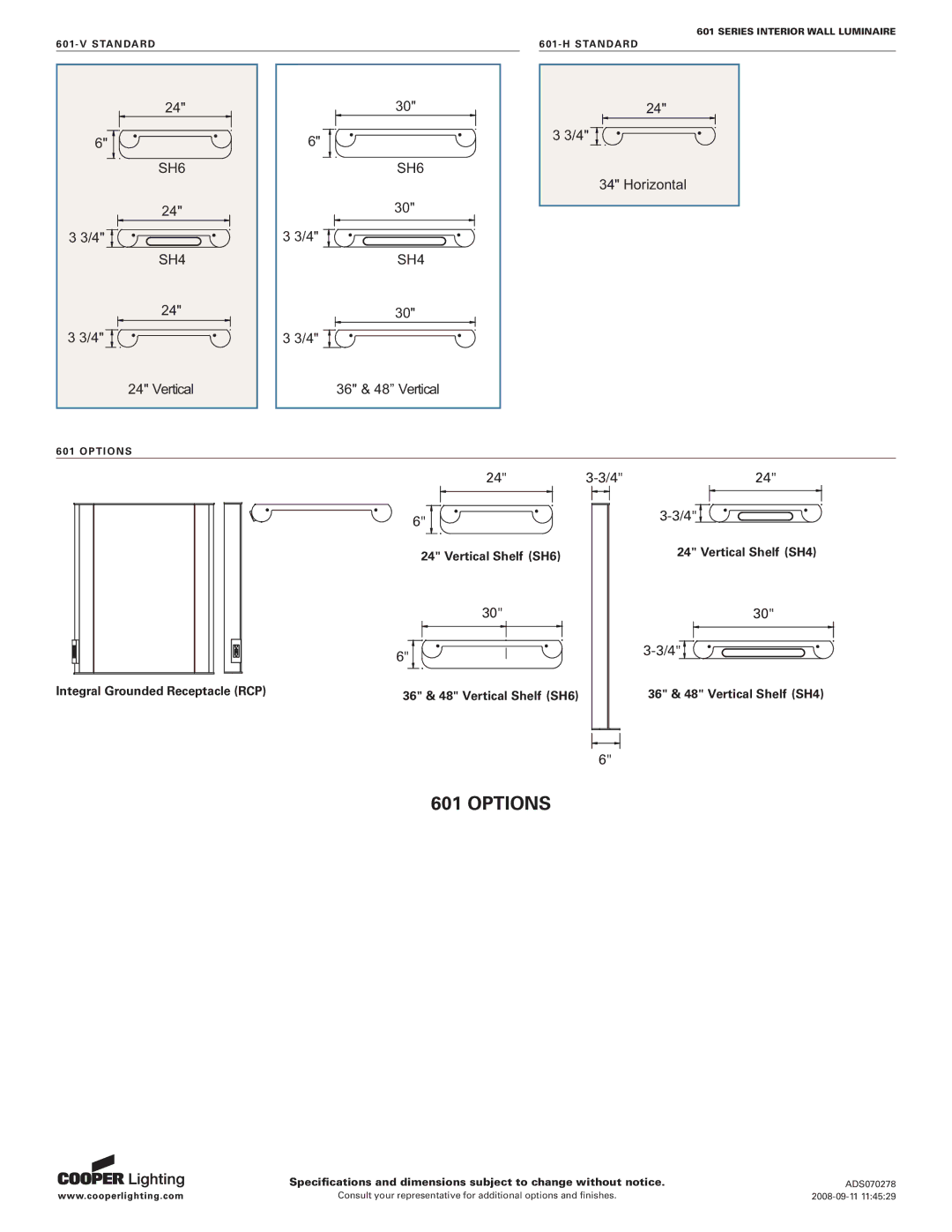

Sample Number: 601-H-34-T8/1/17-120V-SAL

Series

601-H= Mirror

Luminaire

601-V = Mirror

Luminaire

Notes:

1Available in 24".

2Available in 36".

Size

Vertical

24"

36"

48"

Horizontal

34"

Lamp

Vertical

T8/2/17 (24") T8/2/25 (36") T8/2/32 (48")

Horizontal

T8/1/17 (34")

Voltage

120V

277V

347V

Finish

Standard

NA =Natural Aluminum

Premium

CC=Custom Color GNM=Gun Metal MW=Matte White OBRS =Oxidized Brass OCP=Oxidized Copper

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

Options

DL =Damp Location

DM =CFL Dimming

Ballast 3

REM =Remote

Emergency

Battery 4

RCP =Integral Grounded GFI receptacle

SH4 = 4” Shelf - vertical only

SH6 = 6” Shelf - vertical only

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

3Consult the factory for available options.

4Supplied by others.

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SC =Satin Chrome

SCP =Satin Copper

SCL =Lacquered Satin Chrome

SN=Satin Nickel

SNL =Lacquered Satin Nickel

SSS=Satin Stainless Steel

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS070278 2008-09-11 11:45:29
