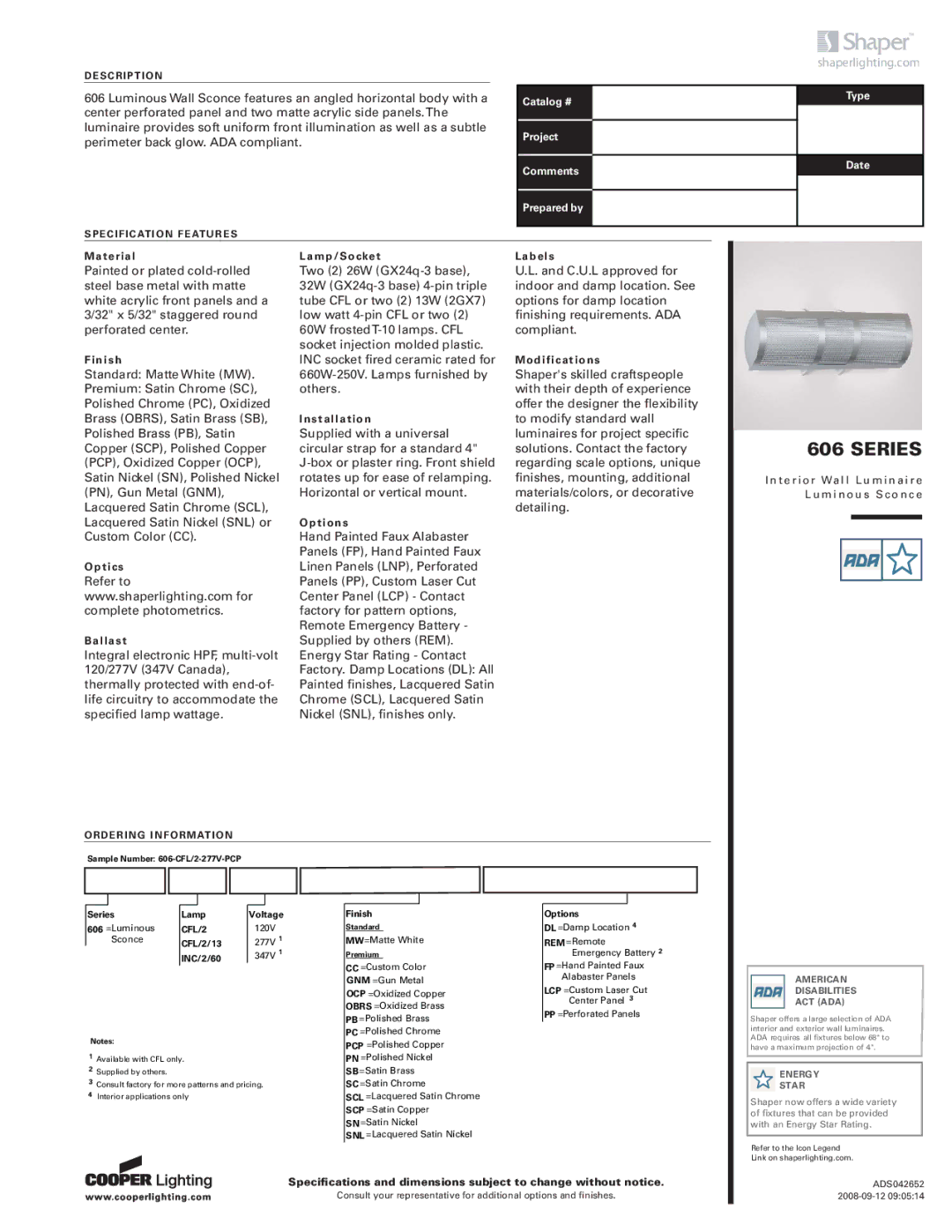

Cooper Lighting 606 specifications Series

DESCRIPTION

606 Luminous Wall Sconce features an angled horizontal body with a center perforated panel and two matte acrylic side panels.The luminaire provides soft uniform front illumination as well as a subtle perimeter back glow. ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or plated cold-rolled steel base metal with matte white acrylic front panels and a 3/32" x 5/32" staggered round perforated center.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Oxidized Brass (OBRS), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Gun Metal (GNM), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

Two (2) 26W (GX24q-3 base), 32W (GX24q-3 base) 4-pin triple tube CFL or two (2) 13W (2GX7) low watt 4-pin CFL or two (2)

60W frostedT-10 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring. Front shield rotates up for ease of relamping. Horizontal or vertical mount.

Options

Hand Painted Faux Alabaster Panels (FP), Hand Painted Faux Linen Panels (LNP), Perforated Panels (PP), Custom Laser Cut Center Panel (LCP) - Contact factory for pattern options, Remote Emergency Battery - Supplied by others (REM). Energy Star Rating - Contact Factory. Damp Locations (DL): All Painted finishes, Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL), finishes only.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

606 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s S c o n c e

ORDERING INFORMATION

Sample Number: 606-CFL/2-277V-PCP

Series		Lamp	Voltage
606 =Luminous		CFL/2	120V
	Sconce	CFL/2/13	277V 1
		INC/2/60	347V 1

Notes:

1Available with CFL only.

2Supplied by others.

3Consult factory for more patterns and pricing.

4Interior applications only

Finish

Standard

MW=Matte White

Premium

CC=Custom Color GNM =Gun Metal OCP =Oxidized Copper OBRS =Oxidized Brass PB =Polished Brass PC =Polished Chrome PCP =Polished Copper PN =Polished Nickel SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

DL =Damp Location 4

REM =Remote

Emergency Battery 2

FP =Hand Painted Faux

Alabaster Panels

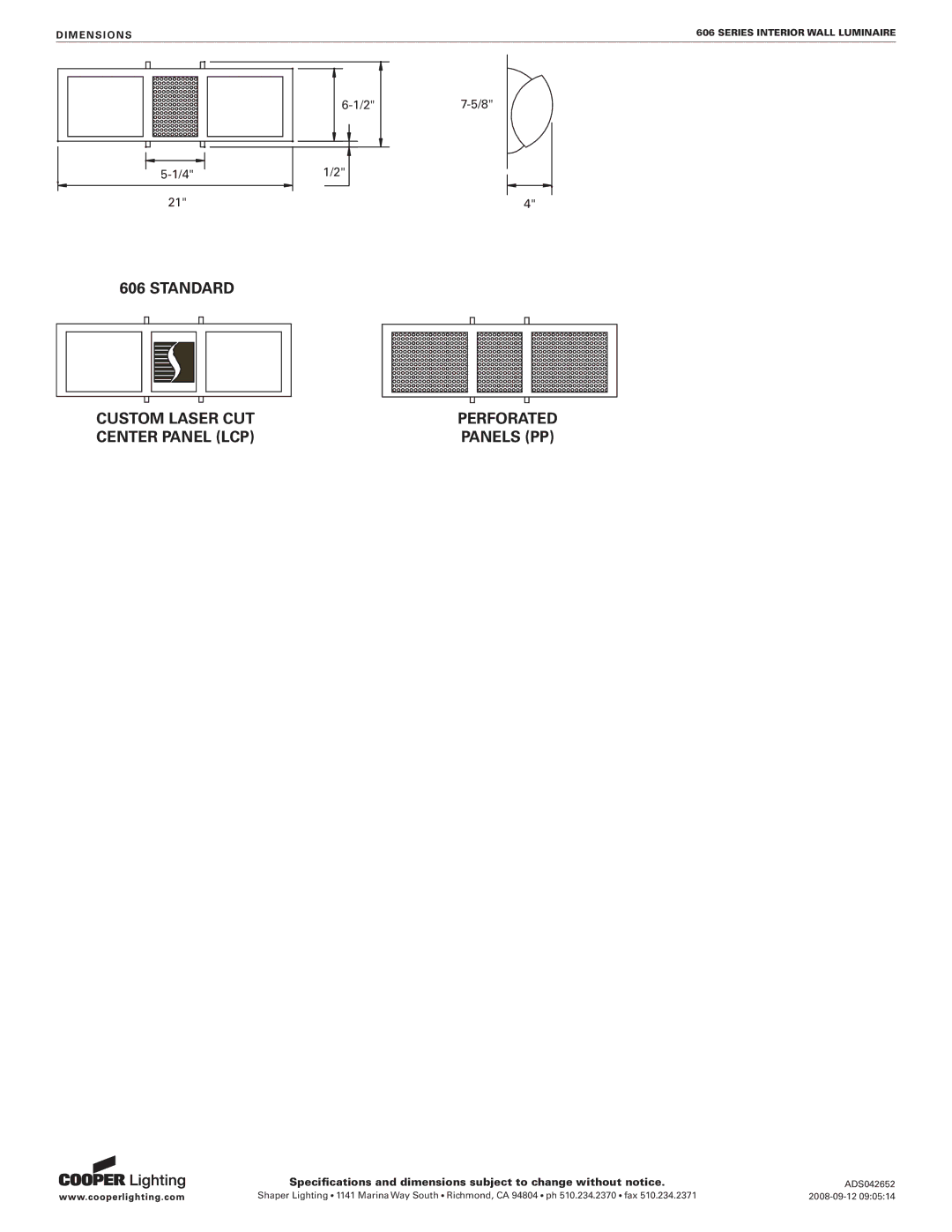

LCP =Custom Laser Cut

Center Panel 3

PP=Perforated Panels

AMERICAN

DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
