What materials are the 641 Series wall sconces made of?

The wall sconces are made of painted or plated cold-rolled steel base metal, with optional hexcel top louver painted in various colors and patterns. For specific details, refer to shaperlighting.com.

Which lamp options are available for the 641 Series wall sconces?

The wall sconces can be fitted with CFL lamps, metal halide lamps, incandescent lamps, or linear halogen double-ended lamps. The specific lamp and socket options depend on the size of the luminaire. Refer to the specifications for details.

Are the 641 Series wall sconces suitable for damp locations?

Yes, certain painted finishes, lacquered satin chrome, and lacquered satin nickel finishes are suitable for damp locations. Refer to the options for damp location finishing requirements.

| Cooper Lighting 641 Series

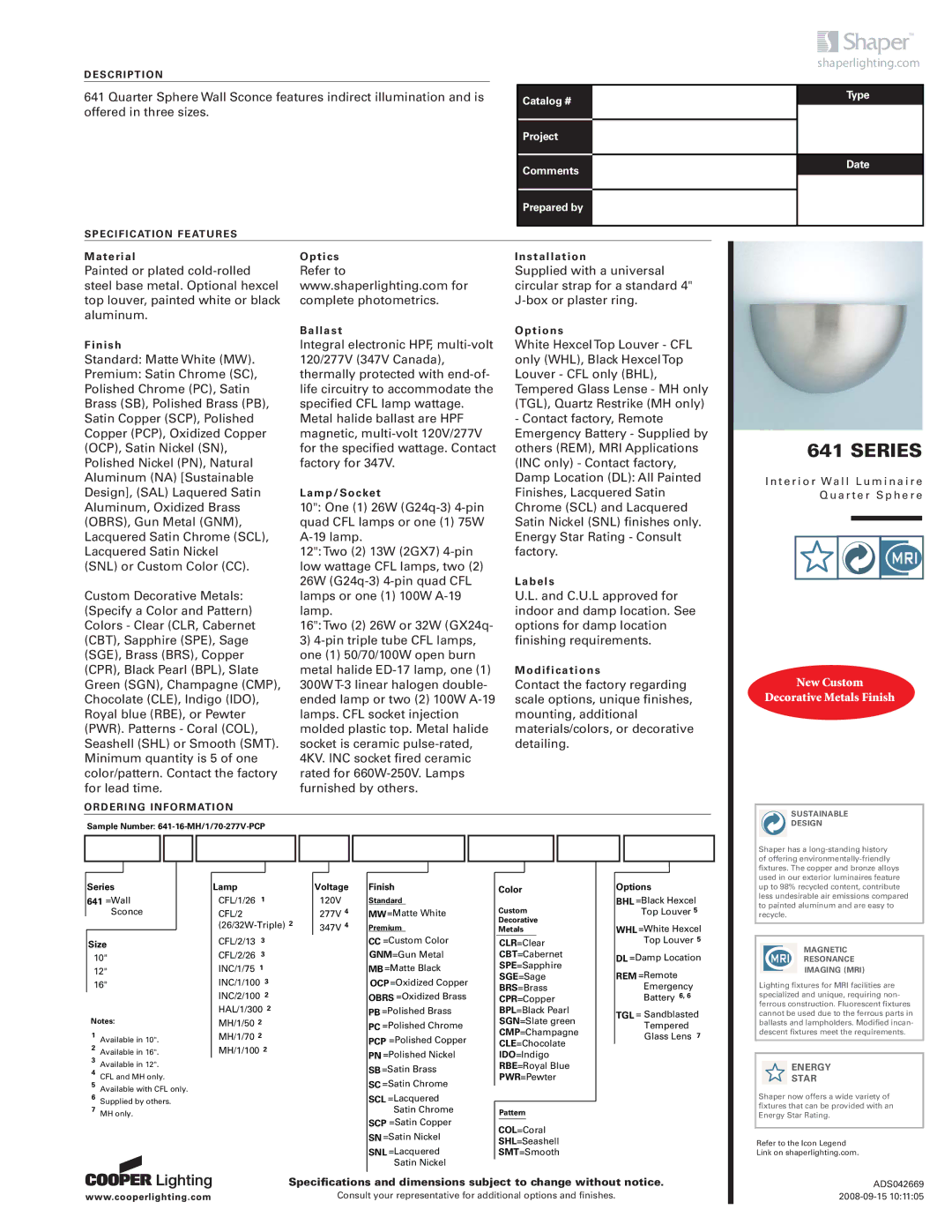

DESCRIPTION

641 Quarter Sphere Wall Sconce features indirect illumination and is offered in three sizes.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material	Optics	Installation
Painted or plated cold-rolled	Refer to	Supplied with a universal
steel base metal. Optional hexcel	www.shaperlighting.com for	circular strap for a standard 4"
top louver, painted white or black	complete photometrics.	J-box or plaster ring.
aluminum.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Satin Nickel (SN), Polished Nickel (PN), Natural Aluminum (NA) [Sustainable Design], (SAL) Laquered Satin Aluminum, Oxidized Brass (OBRS), Gun Metal (GNM), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel

(SNL) or Custom Color (CC).

Custom Decorative Metals: (Specify a Color and Pattern) Colors - Clear (CLR, Cabernet (CBT), Sapphire (SPE), Sage (SGE), Brass (BRS), Copper (CPR), Black Pearl (BPL), Slate Green (SGN), Champagne (CMP), Chocolate (CLE), Indigo (IDO), Royal blue (RBE), or Pewter (PWR). Patterns - Coral (COL), Seashell (SHL) or Smooth (SMT). Minimum quantity is 5 of one color/pattern. Contact the factory for lead time.

ORDERING INFORMATION

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the speciﬁed CFL lamp wattage. Metal halide ballast are HPF magnetic, multi-volt 120V/277V for the speciﬁed wattage. Contact factory for 347V.

Lamp/Socket

10": One (1) 26W (G24q-3) 4-pin quad CFL lamps or one (1) 75W A-19 lamp.

12":Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or one (1) 100W A-19 lamp.

16":Two (2) 26W or 32W (GX24q-

3)4-pin triple tube CFL lamps, one (1) 50/70/100W open burn metal halide ED-17 lamp, one (1) 300WT-3 linear halogen double- ended lamp or two (2) 100W A-19 lamps. CFL socket injection molded plastic top. Metal halide socket is ceramic pulse-rated, 4KV. INC socket ﬁred ceramic rated for 660W-250V. Lamps furnished by others.

Options

White HexcelTop Louver - CFL only (WHL), Black HexcelTop Louver - CFL only (BHL), Tempered Glass Lense - MH only (TGL), Quartz Restrike (MH only)

-Contact factory, Remote Emergency Battery - Supplied by others (REM), MRI Applications (INC only) - Contact factory, Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) ﬁnishes only. Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location ﬁnishing requirements.

Modifications

Contact the factory regarding scale options, unique ﬁnishes, mounting, additional materials/colors, or decorative detailing.

641 SERIES

I n t e r i o r Wa l l L u m i n a i r e Q u a r t e r S p h e r e

New Custom

Decorative Metals Finish

SUSTAINABLE

Sample Number: 641-16-MH/1/70-277V-PCP

DESIGN

Series

641=Wall Sconce

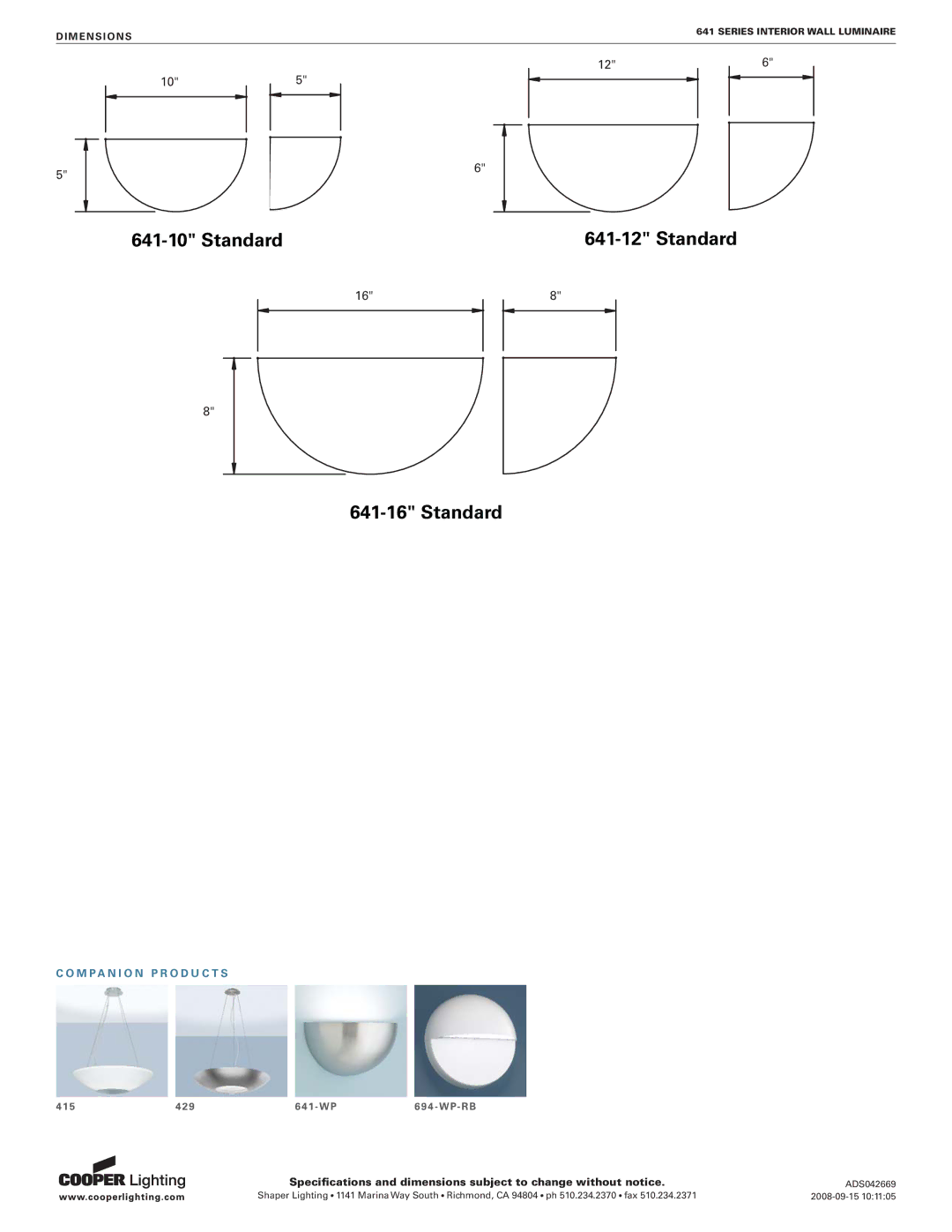

Size

10"

12"

16"

Notes:

1Available in 10".

2Available in 16".

3Available in 12".

4CFL and MH only.

5Available with CFL only.

6Supplied by others.

7MH only.

Lamp

CFL/1/26 1

CFL/2 (26/32W-Triple) 2

CFL/2/13 3

CFL/2/26 3

INC/1/75 1

INC/1/100 3

INC/2/100 2

HAL/1/300 2

MH/1/50 2

MH/1/70 2

MH/1/100 2

Voltage

120V

277V 4

347V 4

Finish

Standard

MW=Matte White

Premium

CC=Custom Color

GNM=Gun Metal

MB=Matte Black

OCP=Oxidized Copper

OBRS =Oxidized Brass

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered

Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered

Satin Nickel

Color

Custom

Decorative

Metals

CLR=Clear CBT=Cabernet SPE=Sapphire SGE=Sage BRS=Brass CPR=Copper BPL=Black Pearl SGN=Slate green CMP=Champagne CLE=Chocolate IDO=Indigo RBE=Royal Blue PWR=Pewter

Pattern

COL=Coral

SHL=Seashell

SMT=Smooth

Options

BHL =Black Hexcel Top Louver 5

WHL=White Hexcel Top Louver 5

DL =Damp Location

REM =Remote

Emergency

Battery 6, 6

TGL = Sandblasted

Tempered

Glass Lens 7

Shaper has a long-standing history of offering environmentally-friendly ﬁxtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting ﬁxtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent ﬁxtures cannot be used due to the ferrous parts in ballasts and lampholders. Modiﬁed incan- descent ﬁxtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of ﬁxtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Speciﬁcations and dimensions subject to change without notice.

Consult your representative for additional options and ﬁnishes.

ADS042669 2008-09-15 10:11:05

Cooper Lighting 641 Series specifications New Custom Decorative Metals Finish
