WALL

SHAPER™

INTERIOR





1/2"





8"







16"

8-1/2"



Sample Number: 641-16-CFL/2-347V-PCP



Series

Size Lamp

Voltage Finish

Options

MATERIAL

Painted or plated cold-rolled steel base metal. Optional hexcel top louver, painted white or black aluminum.

INSTALLATION

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

FINISH AND OPTIONS See page 1020 for finish details and options.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified CFL lamp wattage. Metal halide ballast are HPF magnetic, multi-volt 120V/277V for the specified wattage. Contact factory for 347V.

641 SERIES

641 Quarter Sphere Wall Sconce features indirect illumination and is offered in three sizes.

641=Wall Sconce 10"

CFL/1/261

120V

MW (standard),

BHL5



12"

CFL/2/133

277V4

CC, MB, OBRS,

WHL5



16"

CFL/2/262, 3

347V4

PB, PC, PCP, PN,

DL





CFL/2/322



SB, SC, SCL,

REM6





INC/1/751



SCP, SN, SNL

TGL7





INC/1/1003







Notes:

INC/2/1002







1

Available in 10".

HAL/1/3002







2

Available in 16".

MH/1/502







3

Available in 12".







4 CFL and MH only.

MH/1/702







5

Available with CFL only.

MH/1/1002







6 Supplied by others.







7 MH only.

LAMP/SOCKET

10": One (1) 26W (G24q-3) 4-pin quad CFL lamps or one (1)

75W A-19 lamp. 12": Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or one (1) 100W A-19 lamp. 16": Two (2) 26W or 32W (GX24q-3) 4-pin triple tube CFL lamps, one (1) 0/70/100W open burn metal halide ED-17 lamp, one (1) 300W T-3 linear halogen double-ended lamp or two (2) 100W A-19 lamps. CFL socket injection molded plastic top. Metal halide socket is ceramic pulse-rated, 4KV. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

642 & 642/4

SERIES

The 642 Quarter Sphere Wall Sconce features indirect illumination and is offered in two profiles. The 642/4 is ADA compliant.

14-1/2"

7"

4-1/2"



642 STANDARD



15"

4"

7"



642/4 STANDARD





Sample Number: 642/4-CFL/1/26-347V-MW









Series

Lamp

Voltage

Finish

Options



642=Wall Sconce

CFL/1/131

120V

MB, MW (standard),

2TRB

REM3, 4



642/4=ADA Compliant

CFL/1/26

277V2

CC, OBRS, PB, PC,

2TRP

BBF



Wall Sconce

CFL/1/32

347V2

SAL, SB, SC, SCL

TR

DF





INC/1/100





ACB

SF











CT

BHL

Notes:







DL

HL

1

Available with 642/4 Series.









WHL

2

Available with CFL only.











3 Supplied by others.











4

Available with 642 Series.











MATERIAL

Painted or plated cold- rolled steel base metal. Hexcel louver, painted black or white aluminum.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

LAMP/SOCKET

642: One (1) 26W or 32W (GX24q-3) 4-pin triple CFL lamp or one (1) 100W A-19 lamp.

642/4: One (1) 13W (2GX7) 4-pin low wattage CFL lamp, one (1) 26W (G24q-

3)quad CFL lamp or one 100W A-19 lamp CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

642-A & 642-A/4

14-1/2"



7-3/4"

14-1/2"

4"

5-1/2"



7-1/4"











1/2"











1/2"



4"





7 3/4"





642-A STANDARD



642-A/4-14 STANDARD











Sample Number: 642-A/4-14-CFL/1/13-347V-PCP







Series

Size

Lamp

Voltage

Finish

Options

642-A=Luminous Tapered

14"

CFL/1/132, 1

120V

MW (standard),

2TRB



1

3, 4, 1

5





MATERIAL

Pre-painted white aluminum back plate with a matte white sphere. Optional natural aluminum hexcel top louver. Solid brass, stainless steel or painted steel trims.

INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

FINISH AND OPTIONS

See page 1020 for finish details and options.

SERIES

642-A Luminous Tapered Quarter Sphere features soft forward and indirect illumination and is available in two sizes. 642-A/4 is ADA compliant.



Quarter Sphere

18"

CFL/2/13

277V

CC, OBRS, PB,

2TRP



642-A/4=ADA Compliant



CFL/2/264

347V5

PC, PCP, PN,

TR



Luminous Tapered



INC/1/603, 1



SAL, SB, SC,

BBF



Quarter Sphere



INC/1/754



SCL, SCP, SN,

SF











SNL

CT













DL

Notes:









MEM4

1

Available with 642-A/4 Series.









REM6, 1

2

Available in 14".









3

Available in 18".









FD

4 Available with 642-A Series.









HL

5

Available with CFL only.



















6 Supplied by others.

LAMP/SOCKET

642-A: Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or one (1) 75W A-19 lamp.

642-A/4-14": One (1) 13W (2GX7) 4-pin low wattage

CFL lamp. 642-A/4-18": Two (2) 13W (2GX7) 4-pin low wattage CFL lamps or one (1) 60W T-10 lamp.

CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

982COOPER LIGHTING

Page 1 Page 1
Page 1
Image 1

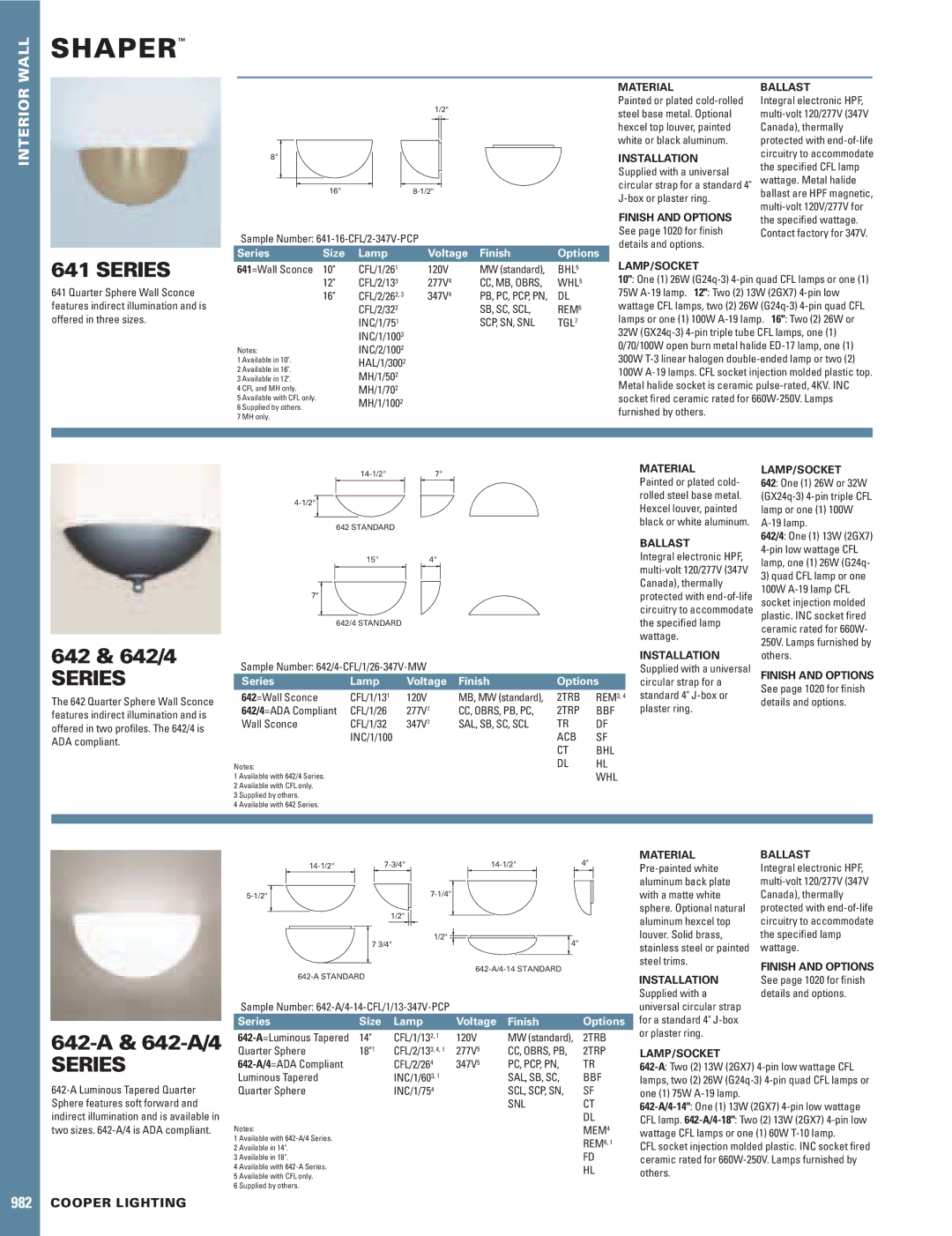

Cooper Lighting 642-A/4 manual Material, Installation, Ballast, Lamp/Socket, Finish and Options
