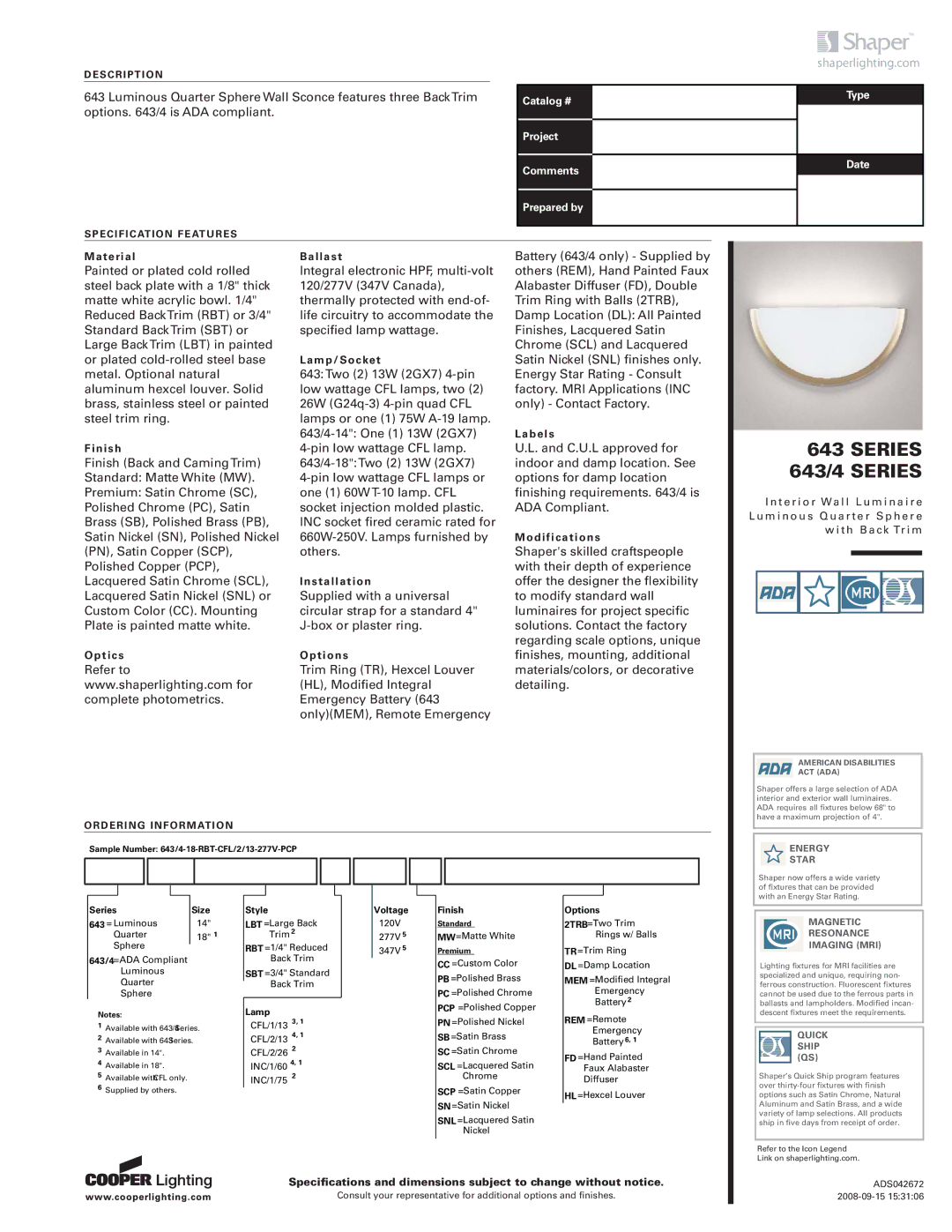

DESCRIPTION

643 Luminous Quarter Sphere Wall Sconce features three BackTrim options. 643/4 is ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or plated cold rolled steel back plate with a 1/8" thick matte white acrylic bowl. 1/4" Reduced BackTrim (RBT) or 3/4" Standard BackTrim (SBT) or Large BackTrim (LBT) in painted or plated cold-rolled steel base metal. Optional natural aluminum hexcel louver. Solid brass, stainless steel or painted steel trim ring.

Finish

Finish (Back and CamingTrim) Standard: Matte White (MW). Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Nickel (SN), Polished Nickel (PN), Satin Copper (SCP), Polished Copper (PCP), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC). Mounting Plate is painted matte white.

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

643:Two (2) 13W (2GX7) 4-pin low wattage CFL lamps, two (2) 26W (G24q-3) 4-pin quad CFL lamps or one (1) 75W A-19 lamp. 643/4-14": One (1) 13W (2GX7)

4-pin low wattage CFL lamp. 643/4-18":Two (2) 13W (2GX7)

4-pin low wattage CFL lamps or one (1) 60WT-10 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Trim Ring (TR), Hexcel Louver (HL), Modified Integral Emergency Battery (643 only)(MEM), Remote Emergency

Battery (643/4 only) - Supplied by others (REM), Hand Painted Faux Alabaster Diffuser (FD), Double Trim Ring with Balls (2TRB), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. Energy Star Rating - Consult factory. MRI Applications (INC only) - Contact Factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. 643/4 is ADA Compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

643SERIES 643/4 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s Q u a r t e r S p h e r e w i t h B a ck Tr i m

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ORDERING INFORMATION

Sample Number: 643/4-18-RBT-CFL/2/13-277V-PCP

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Series

Size

643 = Luminous

14"

Quarter

18" 1

Sphere



643/4=ADA Compliant

Luminous

Quarter

Sphere

Notes:

1Available with 643/4Series.

2Available with 643Series.

3Available in 14".

4Available in 18".

5Available withCFL only.

6Supplied by others.

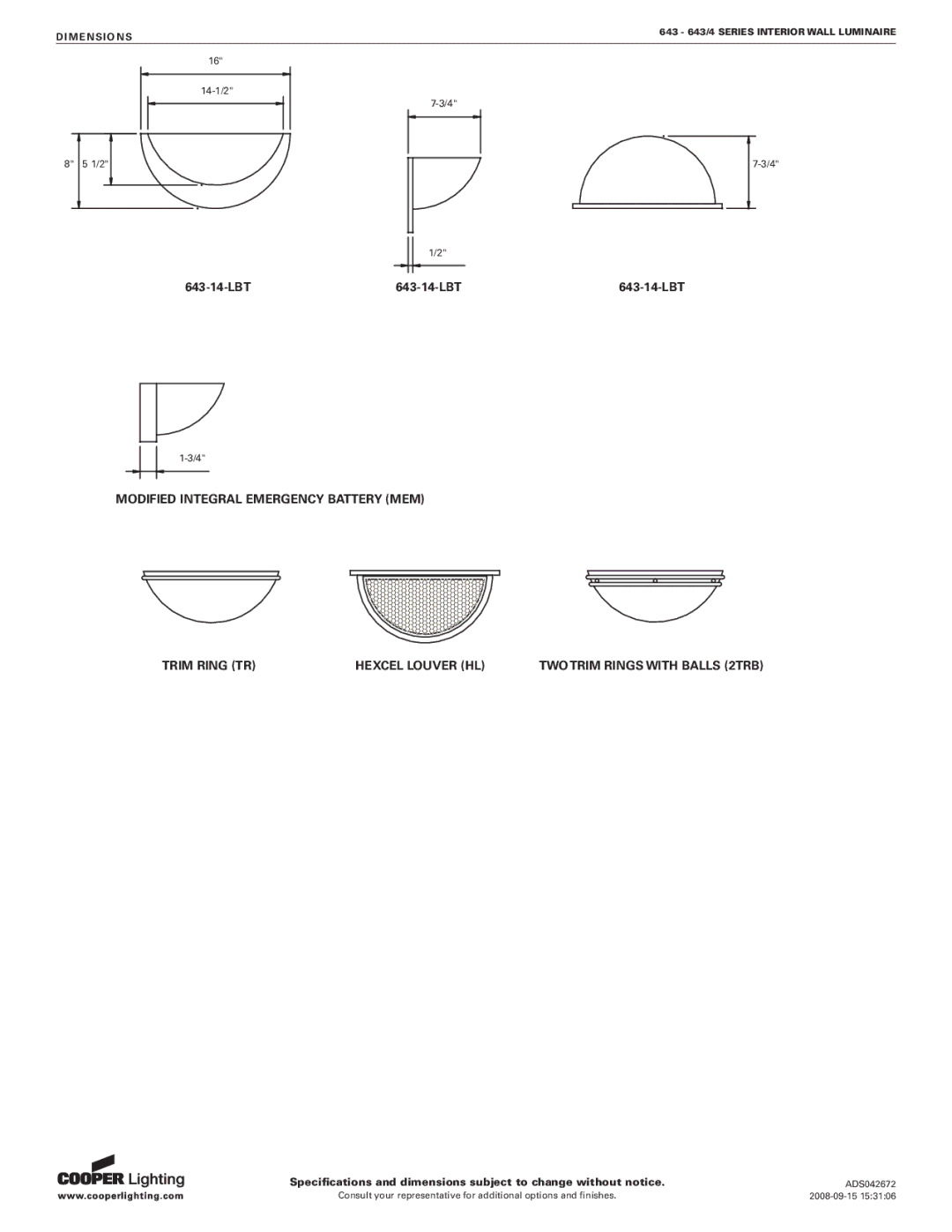

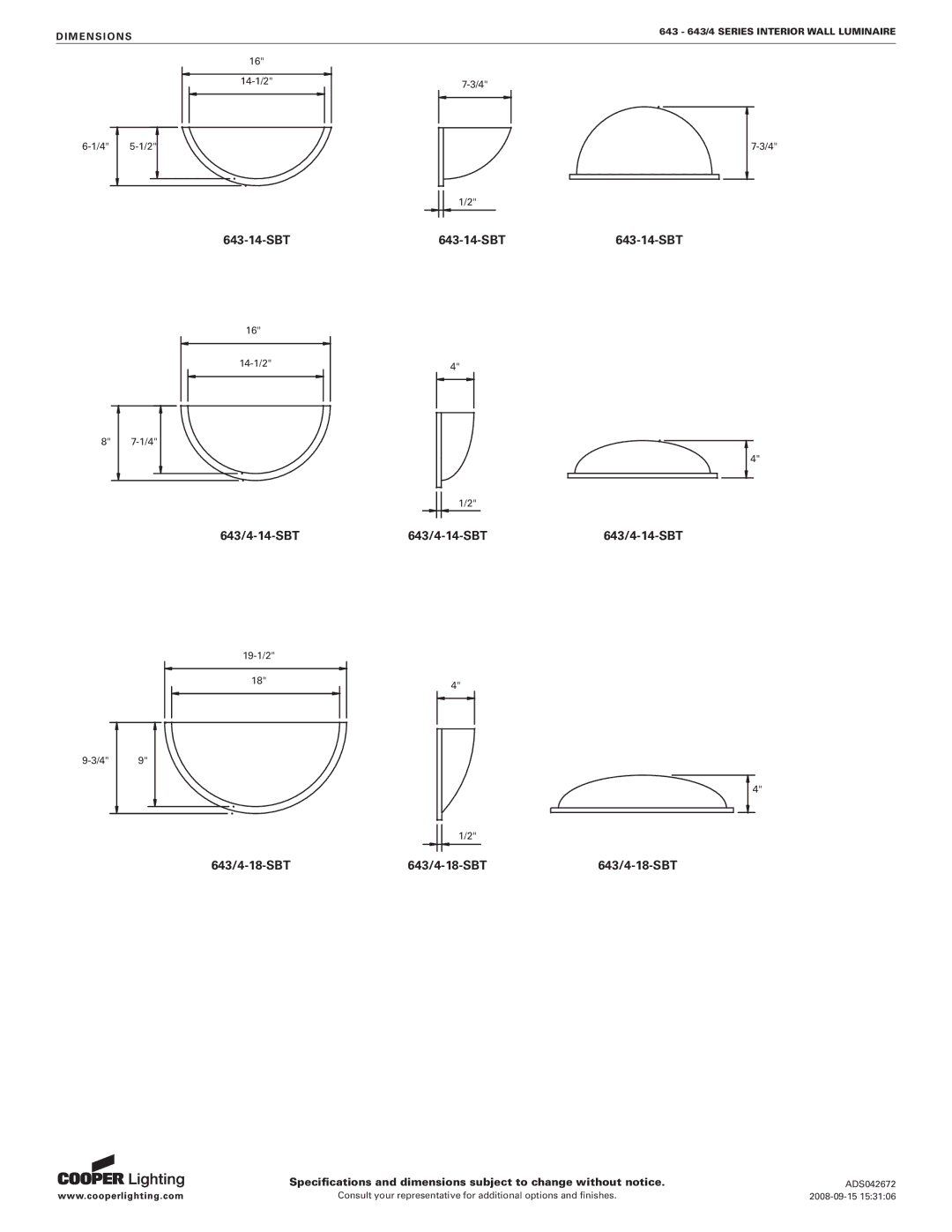

Style

LBT =Large Back

Trim 2

RBT =1/4" Reduced Back Trim

SBT =3/4" Standard Back Trim

Lamp

CFL/1/13 3, 1

CFL/2/13 4, 1

CFL/2/26 2

INC/1/60 4, 1

INC/1/75 2

Voltage

120V

277V 5

347V 5

Finish

Standard

MW=Matte White

Premium

CC=Custom Color

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin

Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin

Nickel

Options

2TRB=Two Trim Rings w/ Balls

TR=Trim Ring

DL =Damp Location

MEM =Modified Integral

Emergency

Battery 2

REM =Remote

Emergency

Battery 6, 1

FD =Hand Painted

Faux Alabaster

Diffuser

HL=Hexcel Louver

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass, and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
