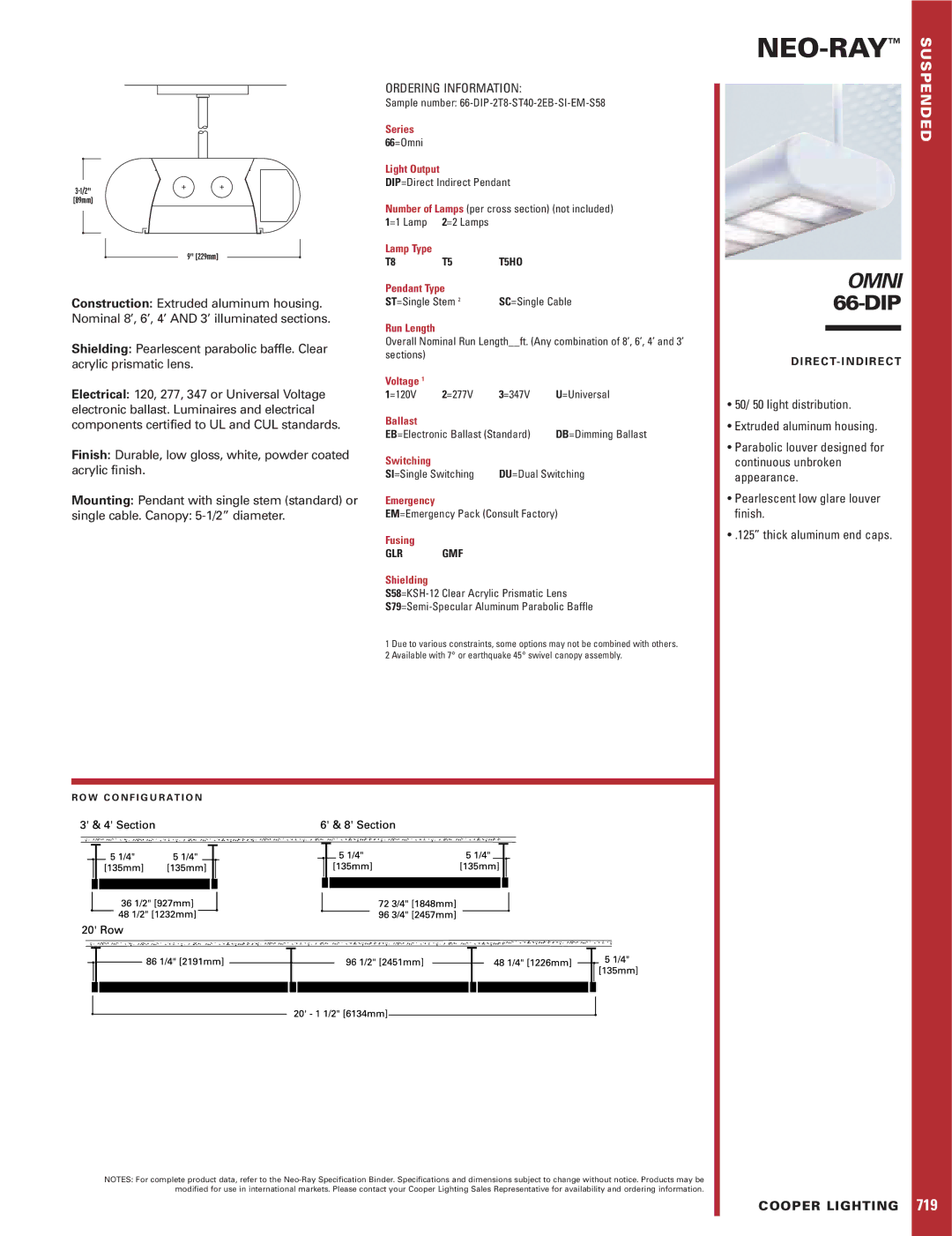

Page 1
Image 1
NEO-RAY™

3-1/2" [89mm]

9" [229mm]

Construction: Extruded aluminum housing. Nominal 8’, 6’, 4’ AND 3’ illuminated sections.

Shielding: Pearlescent parabolic baffle. Clear acrylic prismatic lens.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Luminaires and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Pendant with single stem (standard) or

single cable. Canopy: 5-1/2” diameter.

ORDERING INFORMATION:

Sample number: 66-DIP-2T8-ST40-2EB-SI-EM-S58

Series 66=Omni

Light Output

DIP=Direct Indirect Pendant

Number of Lamps (per cross section) (not included)

1=1 Lamp

2=2 Lamps



Lamp Type





T8

T5

T5HO

Pendant Type

SC=Single Cable

ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.

NEO-RAY

SUSPENDED



OMNI 66-DIP

D I R E C T- I N D I R E C T

50/ 50 light distribution.

Extruded aluminum housing.

Parabolic louver designed for continuous unbroken appearance.

Pearlescent low glare louver finish.

.125” thick aluminum end caps.

R O W C O N F I G U R AT I O N

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

COOPER LIGHTING 719
