3-1/2" [89mm]

9" [229mm]

Construction

Extruded aluminum housing. Nominal 4’ or 8’ illuminated sections.

Louver

Semi-specular aluminum parabolic baffle.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Luminaires and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Surface.

ORDERING INFORMATION:

Sample number: 66DS-2T8-40-2EB-SI-1EM-S58

Series 66=Omni

Light Output

D=Direct

Mounting

S=Surface

Number of Lamps (per cross section) (not included)

1=1 Lamp

2=2 Lamps

Lamp Type

T8T5T5HO

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

NEO-RAY

SURFACE



OMNI 66-DS

D I R E C T

• Direct light distribution.

• T5 and T8 lamping.

• Extruded aluminum housing,

nominal 4’ and 8’ illuminated

sections.

• Parabolic louver designed for

continuous unbroken

Fusing

GLR GMF

Shielding

S58=KSH-12 Clear Acrylic Prismatic Lens

S79=Semi-specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others.

M O U N T I N G I N F O R M AT I O N



8FT







6FT







4FT





3FT

















1-1/8" [29mm]











































































































5-1/4" [133mm]















86-1/4" [2191mm]





5-1/4" [133mm]







62-1/4" [1581mm]





5-1/4" [133mm]







38" [965mm]







5-1/4" [133mm]





26" [660mm]

5-1/4" [133mm]

1/8" [29mm]















96-1/2" [2451mm]





1/8" [29mm]







72-1/2" [1842mm]





1/8" [29mm]





48-1/4" [1226mm]





1/8" [29mm]

36-1/4" [926mm]

1/8" [29mm]

END PLATE















96-3/4" [2458mm]





END PLATE







72-3/4" [1848mm]





END PLATE





48-1/2" [1232mm]





END PLATE

36-1/2" [927mm]

END PLATE









































































































7/8" [22mm] HOLE











(INDIVIDUAL FIXTURES ONLY)





























































































CONSULT FACTORY FOR CONTINUOUS RUN APPLICATIONS

























S H I E L D I N G O P T I O N S

S58 Acrylic Lens

S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

appearance.

• Pearlescent low glare louver

finish.

• .125” thick aluminum end

caps.

• Selection of 2 light diffuser

options

COOPER LIGHTING 775

Page 1
Image 1

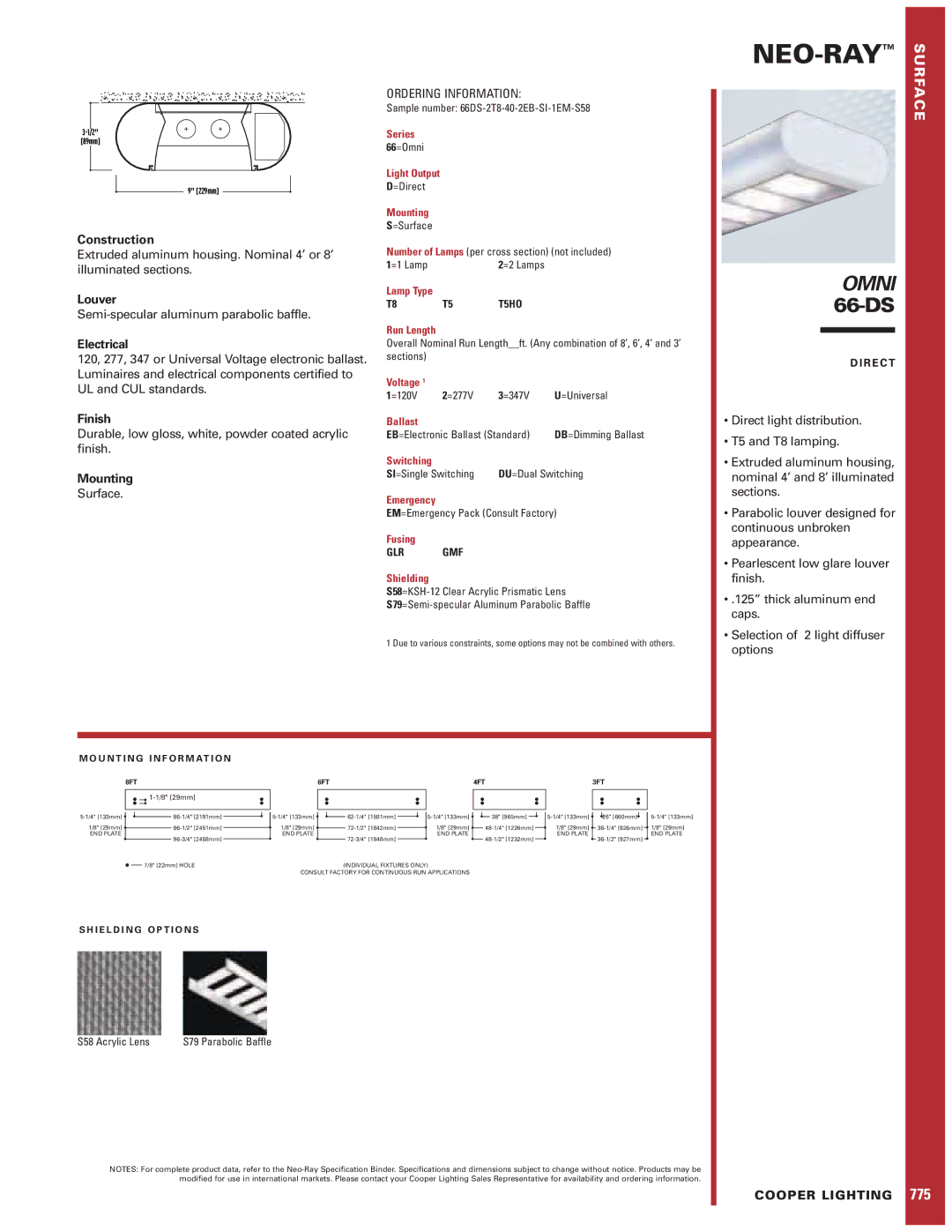

Cooper Lighting 66-DS specifications Construction, Louver, Electrical, Finish, Mounting
