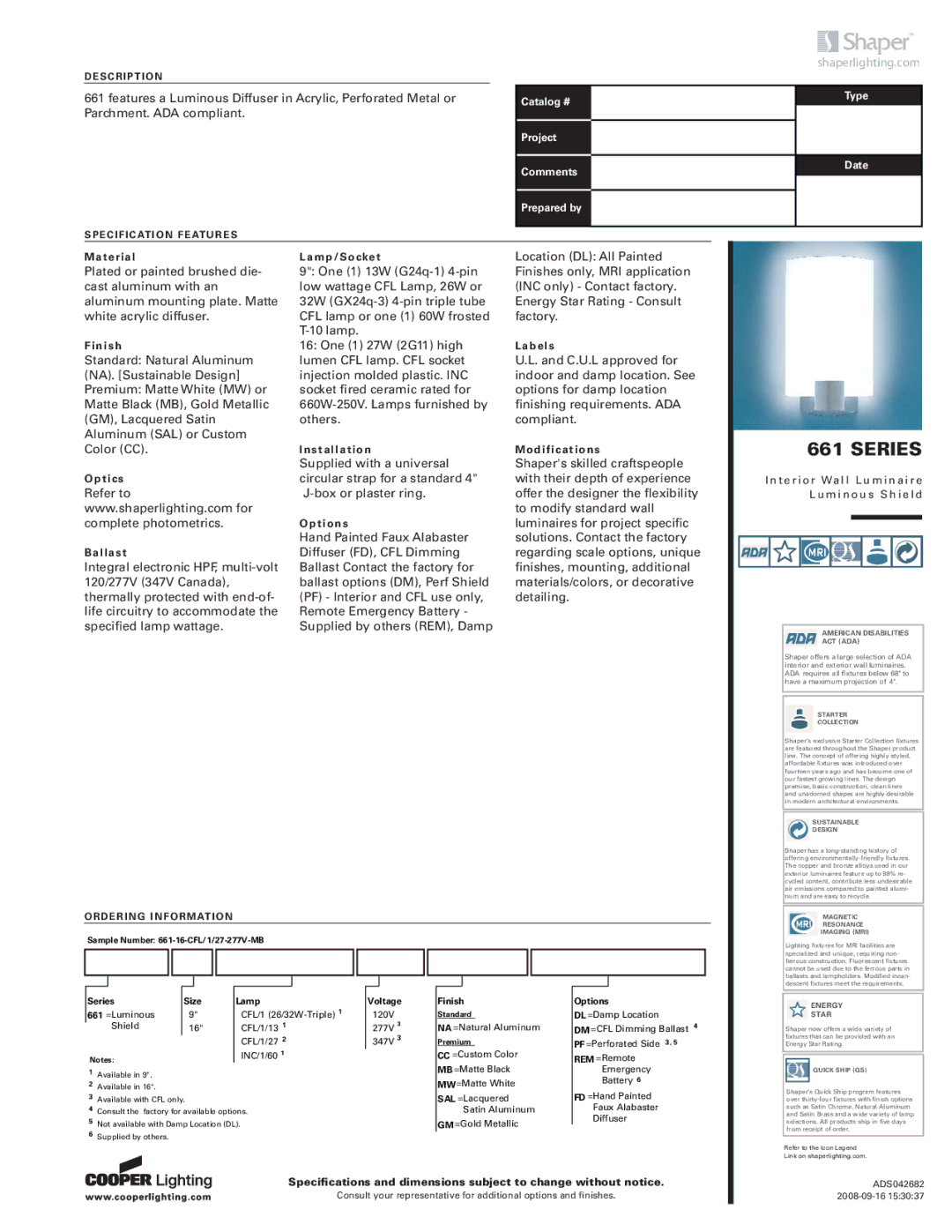

DESCRIPTION

661 features a Luminous Diffuser in Acrylic, Perforated Metal or Parchment. ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Plated or painted brushed die- cast aluminum with an aluminum mounting plate. Matte white acrylic diffuser.

Finish

Standard: Natural Aluminum (NA). [Sustainable Design] Premium: Matte White (MW) or Matte Black (MB), Gold Metallic (GM), Lacquered Satin Aluminum (SAL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

9": One (1) 13W (G24q-1) 4-pin low wattage CFL Lamp, 26W or 32W (GX24q-3) 4-pin triple tube CFL lamp or one (1) 60W frosted T-10 lamp.

16:One (1) 27W (2G11) high lumen CFL lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Diffuser (FD), CFL Dimming Ballast Contact the factory for ballast options (DM), Perf Shield (PF) - Interior and CFL use only, Remote Emergency Battery - Supplied by others (REM), Damp

Location (DL): All Painted Finishes only, MRI application (INC only) - Contact factory. Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

661 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s S h i e l d

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

STARTER

COLLECTION

Shaper’s exclusive Starter Collection fixtures are featured throughout the Shaper product line. The concept of offering highly styled, affordable fixtures was introduced over fourteen years ago and has become one of our fastest growing lines. The design premise, basic construction, clean lines and unadorned shapes are highly desirable in modern architectural environments.

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

ORDERING INFORMATION

Sample Number: 661-16-CFL/1/27-277V-MB

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.











Series

Size

Lamp

661 =Luminous

9"

CFL/1 (26/32W-Triple) 1

Shield

16"

CFL/1/13 1







CFL/1/27 2

Notes:





INC/1/60 1









1Available in 9".

2Available in 16".

3Available with CFL only.

4Consult the factory for available options.

5Not available with Damp Location (DL).

6Supplied by others.

Voltage

120V

277V 3

347V 3

Finish

Standard

NA =Natural Aluminum

Premium

CC=Custom Color

MB=Matte Black

MW=Matte White

SAL =Lacquered

Satin Aluminum

GM=Gold Metallic

Options

DL =Damp Location

DM =CFL Dimming Ballast 4

PF =Perforated Side 3, 5

REM =Remote

Emergency

Battery 6

FD =Hand Painted

Faux Alabaster

Diffuser

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

QUICK SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042682 2008-09-16 15:30:37

Page 1
