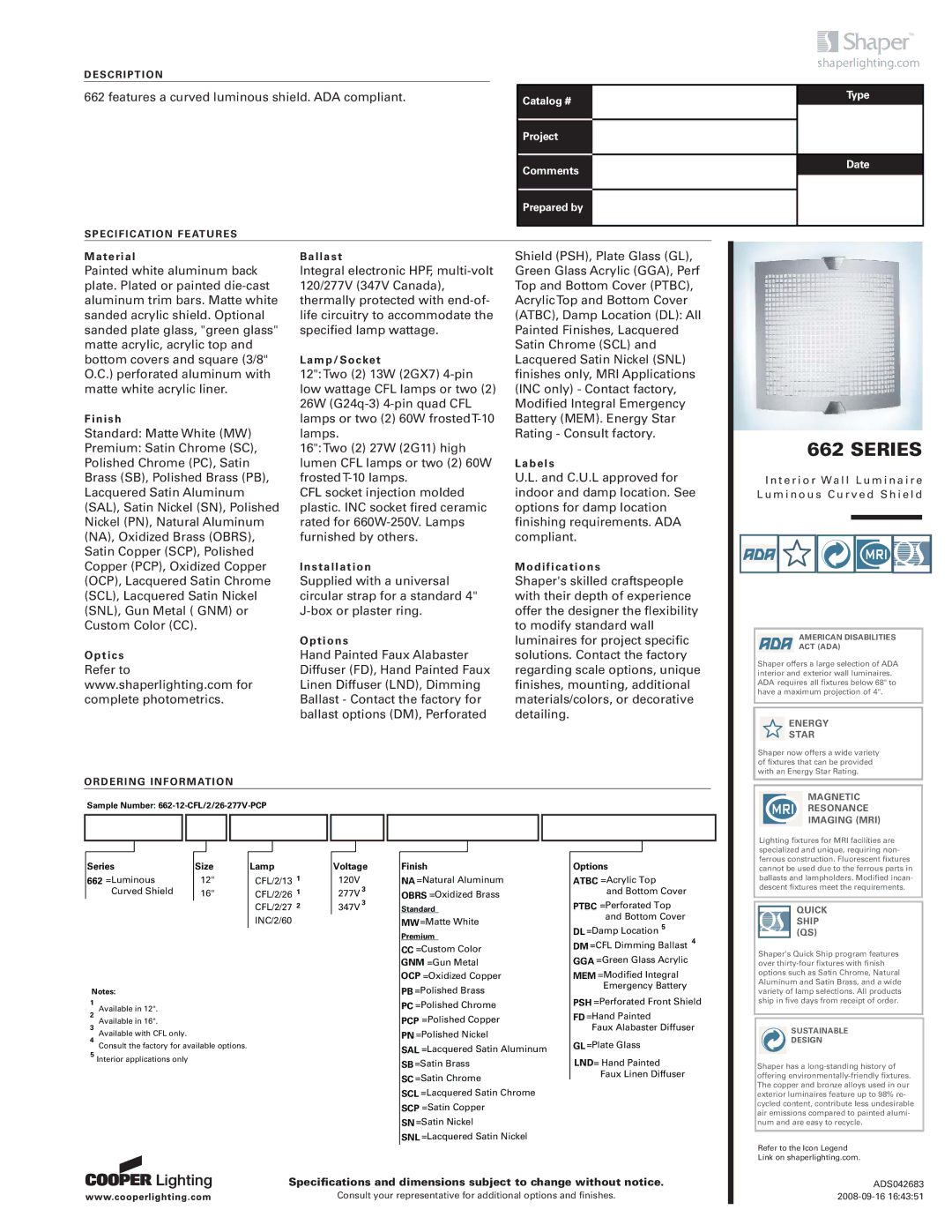

DESCRIPTION

662 features a curved luminous shield. ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted white aluminum back plate. Plated or painted die-cast aluminum trim bars. Matte white sanded acrylic shield. Optional sanded plate glass, "green glass" matte acrylic, acrylic top and bottom covers and square (3/8" O.C.) perforated aluminum with matte white acrylic liner.

Finish

Standard: Matte White (MW)

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Lacquered Satin Aluminum (SAL), Satin Nickel (SN), Polished Nickel (PN), Natural Aluminum (NA), Oxidized Brass (OBRS), Satin Copper (SCP), Polished Copper (PCP), Oxidized Copper (OCP), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL), Gun Metal ( GNM) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

ORDERING INFORMATION

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

12":Two (2) 13W (2GX7) 4-pin low wattage CFL lamps or two (2) 26W (G24q-3) 4-pin quad CFL lamps or two (2) 60W frostedT-10 lamps.

16":Two (2) 27W (2G11) high lumen CFL lamps or two (2) 60W frostedT-10 lamps.

CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Diffuser (FD), Hand Painted Faux Linen Diffuser (LND), Dimming Ballast - Contact the factory for ballast options (DM), Perforated

Shield (PSH), Plate Glass (GL), Green Glass Acrylic (GGA), Perf Top and Bottom Cover (PTBC), AcrylicTop and Bottom Cover (ATBC), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only, MRI Applications (INC only) - Contact factory, Modified Integral Emergency Battery (MEM). Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

662 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s C u r v e d S h i e l d

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Sample Number: 662-12-CFL/2/26-277V-PCP

MAGNETIC

RESONANCE IMAGING (MRI)

















Series

Size

Lamp

662 =Luminous

12"





CFL/2/13 1

Curved Shield

16"





CFL/2/26 1













CFL/2/27 2













INC/2/60

Notes:

1

Available in 12".

2

Available in 16".

3

Available with CFL only.

4

Consult the factory for available options.

5Interior applications only

Voltage

120V

277V 3

347V 3

Finish

NA =Natural Aluminum

OBRS =Oxidized Brass

Standard

MW=Matte White

Premium

CC=Custom Color GNM =Gun Metal OCP =Oxidized Copper

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

ATBC =Acrylic Top

and Bottom Cover

PTBC =Perforated Top

and Bottom Cover

DL =Damp Location 5

DM =CFL Dimming Ballast 4

GGA =Green Glass Acrylic

MEM =Modified Integral

Emergency Battery

PSH =Perforated Front Shield

FD =Hand Painted

Faux Alabaster Diffuser

GL=Plate Glass

LND= Hand Painted Faux Linen Diffuser

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass, and a wide variety of lamp selections. All products ship in five days from receipt of order.

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042683 2008-09-16 16:43:51

Page 1
