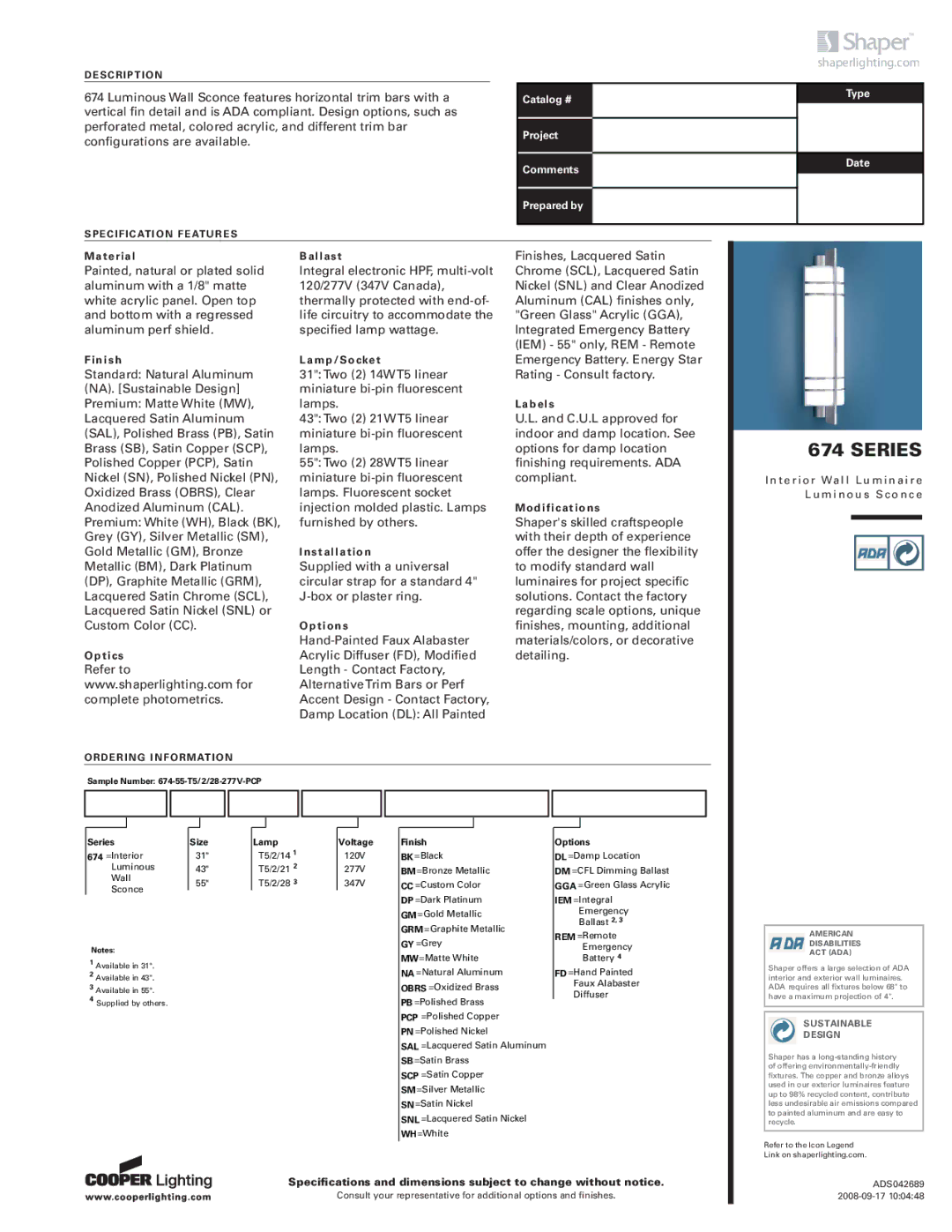

Cooper Lighting 674 Series specifications

DESCRIPTION

674 Luminous Wall Sconce features horizontal trim bars with a vertical fin detail and is ADA compliant. Design options, such as perforated metal, colored acrylic, and different trim bar configurations are available.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted, natural or plated solid aluminum with a 1/8" matte white acrylic panel. Open top and bottom with a regressed aluminum perf shield.

Finish

Standard: Natural Aluminum (NA). [Sustainable Design] Premium: Matte White (MW), Lacquered Satin Aluminum (SAL), Polished Brass (PB), Satin Brass (SB), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Oxidized Brass (OBRS), Clear Anodized Aluminum (CAL). Premium: White (WH), Black (BK), Grey (GY), Silver Metallic (SM), Gold Metallic (GM), Bronze Metallic (BM), Dark Platinum (DP), Graphite Metallic (GRM), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics Refer to www.shaperlighting.com for complete photometrics.

ORDERING INFORMATION

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

31":Two (2) 14WT5 linear miniature bi-pin fluorescent lamps.

43":Two (2) 21WT5 linear miniature bi-pin fluorescent lamps.

55":Two (2) 28WT5 linear miniature bi-pin fluorescent lamps. Fluorescent socket injection molded plastic. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand-Painted Faux Alabaster Acrylic Diffuser (FD), Modified Length - Contact Factory, AlternativeTrim Bars or Perf Accent Design - Contact Factory, Damp Location (DL): All Painted

Finishes, Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) and Clear Anodized Aluminum (CAL) finishes only, "Green Glass" Acrylic (GGA), Integrated Emergency Battery (IEM) - 55" only, REM - Remote Emergency Battery. Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

674 SERIES

I n t e r i o r Wa l l L u m i n a i r e L u m i n o u s S c o n c e

Sample Number: 674-55-T5/2/28-277V-PCP

Series	Size
674 =Interior	31"
Luminous	43"
Wall	55"
Sconce

Notes:

1Available in 31".

2Available in 43".

3Available in 55".

4Supplied by others.

Lamp

T5/2/14 1 T5/2/21 2 T5/2/28 3

Voltage

120V

277V

347V

Finish

BK =Black

BM=Bronze Metallic

CC=Custom Color

DP =Dark Platinum

GM=Gold Metallic

GRM =Graphite Metallic

GY =Grey

MW=Matte White

NA =Natural Aluminum

OBRS =Oxidized Brass

PB =Polished Brass

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SCP =Satin Copper

SM=Silver Metallic

SN=Satin Nickel

SNL =Lacquered Satin Nickel

WH=White

Options

DL =Damp Location

DM =CFL Dimming Ballast

GGA =Green Glass Acrylic

IEM =Integral

Emergency

Ballast 2, 3

REM =Remote

Emergency

Battery 4

FD =Hand Painted

Faux Alabaster

Diffuser

AMERICAN

DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
