SHAPER

INTERIOR

674 SERIES

674 Luminous Wall Sconce features horizontal trim bars with a vertical fin detail and is ADA compliant. Design options, such as perforated metal, colored acrylic, and different trim bar configurations are available.

8-3/8" 4"







31"

29"

25"







4"













3/4"



















674













31" STANDARD

Sample Number: 674-55-T5/2/28-347V-OBRS







Series

Size

Lamp

Voltage

Finish

Options

674=

31"

T5/2/141

120V

BK, BM, CC, DP,

DL

Interior Luminous

43"

T5/2/212

277V

GM, GRM, GY, MW,

GGA

Wall Sconce

55"

T5/2/283

347V

NA, OBRS, PB, PCP,

IEM2, 3









PN, SAL, SB, SCP,

REM4

Notes:







SM, SN, SNL, WH

FD

1 Available in 31".













2 Available in 43".













3 Available in 55".













4 Supplied by others.













MATERIAL

Painted, natural or plated solid aluminum with a 1/8" matte white acrylic panel. Open top and bottom with a regressed aluminum perf shield.

BALLAST

Integral electronic HPF multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

LAMP/SOCKET 31": Two (2) 14W T5 linear miniature bi-pin fluorescent lamps. 43": Two (2) 21W T5 linear miniature bi-pin fluorescent lamps. 55": Two (2) 28W T5 linear miniature bi-pin fluorescent lamps. Fluorescent socket injection molded plastic. Lamps furnished by others.

FINISH AND OPTIONS See page 1020 for finish details and options.

WALL

3-1/2"











5"

4"





9"



9"



5"

4-1/2"

4"

4-1/2"

683



683/4



MATERIAL

Painted, natural or plated solid aluminum with a 1/8" matte white acrylic panel. Open top and bottom with a regressed aluminum perf shield.

BALLAST

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally

LAMP/SOCKET

One (1) 13W (G24q-1) 4- pin quad CFL lamp, one

(1)26W (GX24q-3) triple tube CFL lamp or one (1) 60W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

683 & 683/4

SERIES

683 Direct/Indirect Economical Wall Sconce features an aluminum cylinder. 683/4 is ADA compliant.

Sample Number: 683/4-CFL/1/26-347V-BK





Series

Lamp

Voltage

Finish

Options

683=Wall Sconce

CFL/1/13

120V

NA (Interior standard),

DL

683/4=ADA Compliant

CFL/1/26

277V 1

CC, MW (Interior premium)

REM2

Wall Sconce

INC/1/60

347V 1

WH (Damp Location standard),









BK, BM, CC, DP, GM, GRM, GY,









SM (Damp Location premium)



Notes:

1 Available with CFL only.

2 Supplied by others.

protected with end-of-life circuitry to accommodate the specified lamp wattage.

INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

FINISH AND OPTIONS See page 1020 for finish details and options.

9"

1"

8"

9"3/8"

687-9" STANDARD

8"

9"

12"

11"



1"

10"

4"

11"

687-12" STANDARD

MATERIAL

Painted or plated cold- rolled steel base metal. Optional aluminum cube cell louver, white.

INSTALLATION Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

FINISH AND OPTIONS See page 1020 for finish details and options.

BALLAST

Integral Electronic HPF multi-volt 120/277V (347V Canada), thermally protected with end-of-life circuitry to accommodate the specified lamp wattage. Metal Halide Ballast are HPF core and coil type, multi-volt 120/277V for the specified wattage. Contact factory for 347V.

Sample Number: 687-12-HAL/1/300-120V-OBRS

Series

Size Lamp

Voltage Finish

Options

LAMP/SOCKET

687 SERIES

687 features classic Geometric Wedge shape with indirect illumination. The 687-4 features similar geometry and is ADA compliant.

687 =

9"

Geometric Wedge

12"

687/4 =



Geometric Wedge



Notes:

1.Available in 9".:

2.Available with 687/4 Series.

3.Available with 687 Series.

4.Available in 12".

5.CFL and MH only.

6.Available with CFL only.

7.MH only.

CFL/1/131, 2

CFL/1/261, 3, 2

CFL/1/321, 3

CFL/2/262, 3, 4

CFL/2/323, 4

INC/1/751, 2, 3

INC/2/752, 3, 4

HAL/1/3003, 4

MH/1/503, 4

MH/1/703, 4

MH/1/1003, 4

120V

MB, MW

BPP

277V5

(standard),

GPP

347V6

CC, OBRS,

RPP



OBZ, PB, PC,

WPP



PCP, PN, SAL,

YPP



SB, SC, SCL,

CL



SCP, SN, SNL

DL





MEM3, 4

QR3, 4

REM

TGL7

687 - 9": One (1) 26W or 32W (GX24q-3) 4-pin triple

CFL lamp or one (1) 75W A-19 lamp. 687/4 - 9": One (1) 13W (2GX7) 4-pin low wattage CFL lamp, one (1) 26W (G24q-3) 4-pin quad CFL lamp or one (1) 75W A-19 lamp. 687 - 12": Two (2) 26W or 32W (GX24q-3) 4-pin triple CFL lamps, two (2) 75W A-19 lamps, one (1) 300W double-ended T-3 halogen lamp or one (1) 50W, 70W or 100W ED-17 metal halide (open burn) lamp. 687/4 - 12": Two (2) 26W (G24q-3) quad CFL lamps or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W- 250V. Lamps furnished by others.

COOPER LIGHTING 987

Page 1

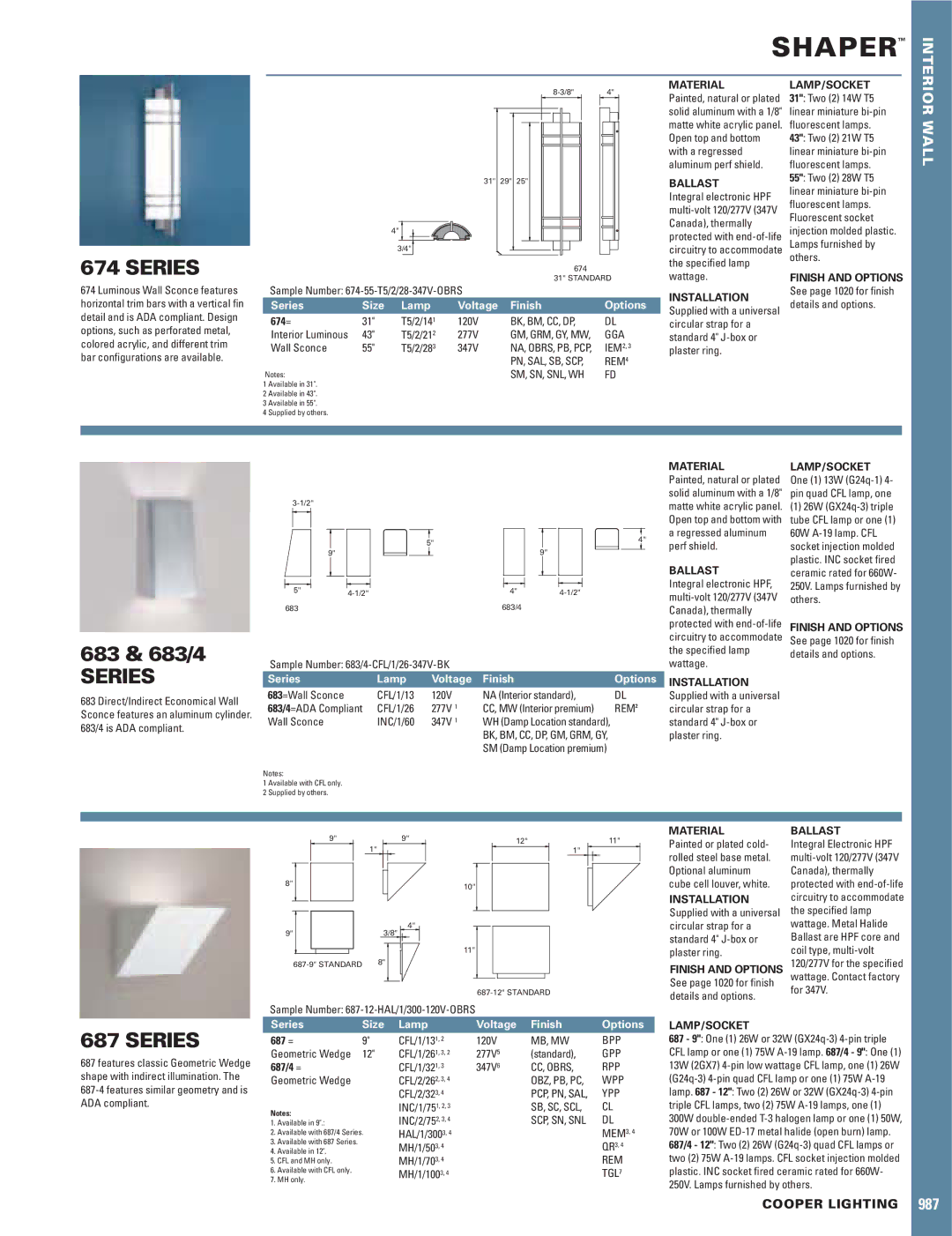

Image 1
Cooper Lighting 683/4 manual Series Size Lamp Voltage Finish Options, Material, Ballast, Lamp/Socket
