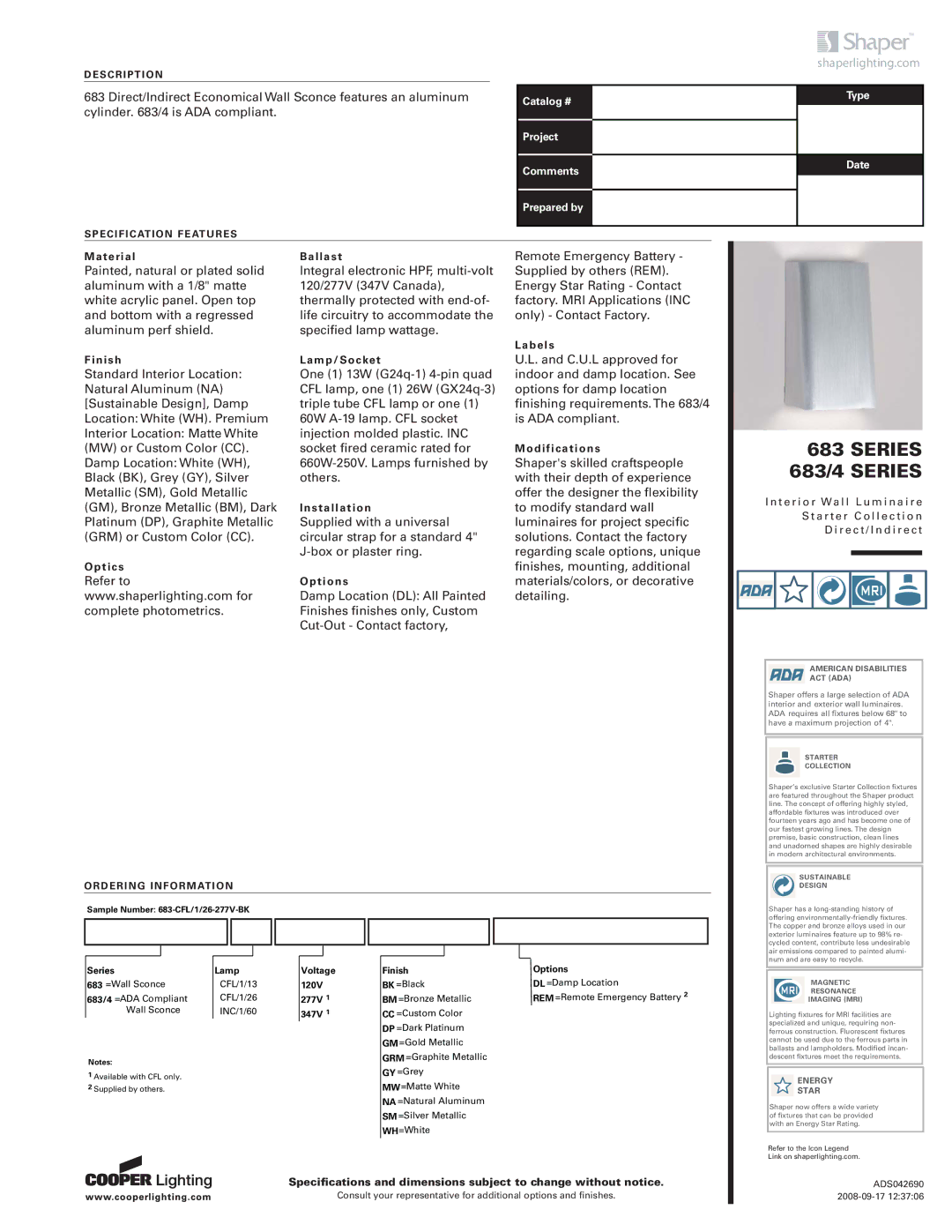

Cooper Lighting 683 & specifications 683SERIES 683/4 SERIES

DESCRIPTION

683 Direct/Indirect Economical Wall Sconce features an aluminum cylinder. 683/4 is ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted, natural or plated solid aluminum with a 1/8" matte white acrylic panel. Open top and bottom with a regressed aluminum perf shield.

Finish

Standard Interior Location: Natural Aluminum (NA) [Sustainable Design], Damp Location: White (WH). Premium Interior Location: Matte White (MW) or Custom Color (CC). Damp Location: White (WH), Black (BK), Grey (GY), Silver Metallic (SM), Gold Metallic (GM), Bronze Metallic (BM), Dark Platinum (DP), Graphite Metallic (GRM) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

One (1) 13W (G24q-1) 4-pin quad CFL lamp, one (1) 26W (GX24q-3) triple tube CFL lamp or one (1)

60W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Damp Location (DL): All Painted Finishes finishes only, Custom Cut-Out - Contact factory,

Remote Emergency Battery - Supplied by others (REM). Energy Star Rating - Contact factory. MRI Applications (INC only) - Contact Factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements.The 683/4 is ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

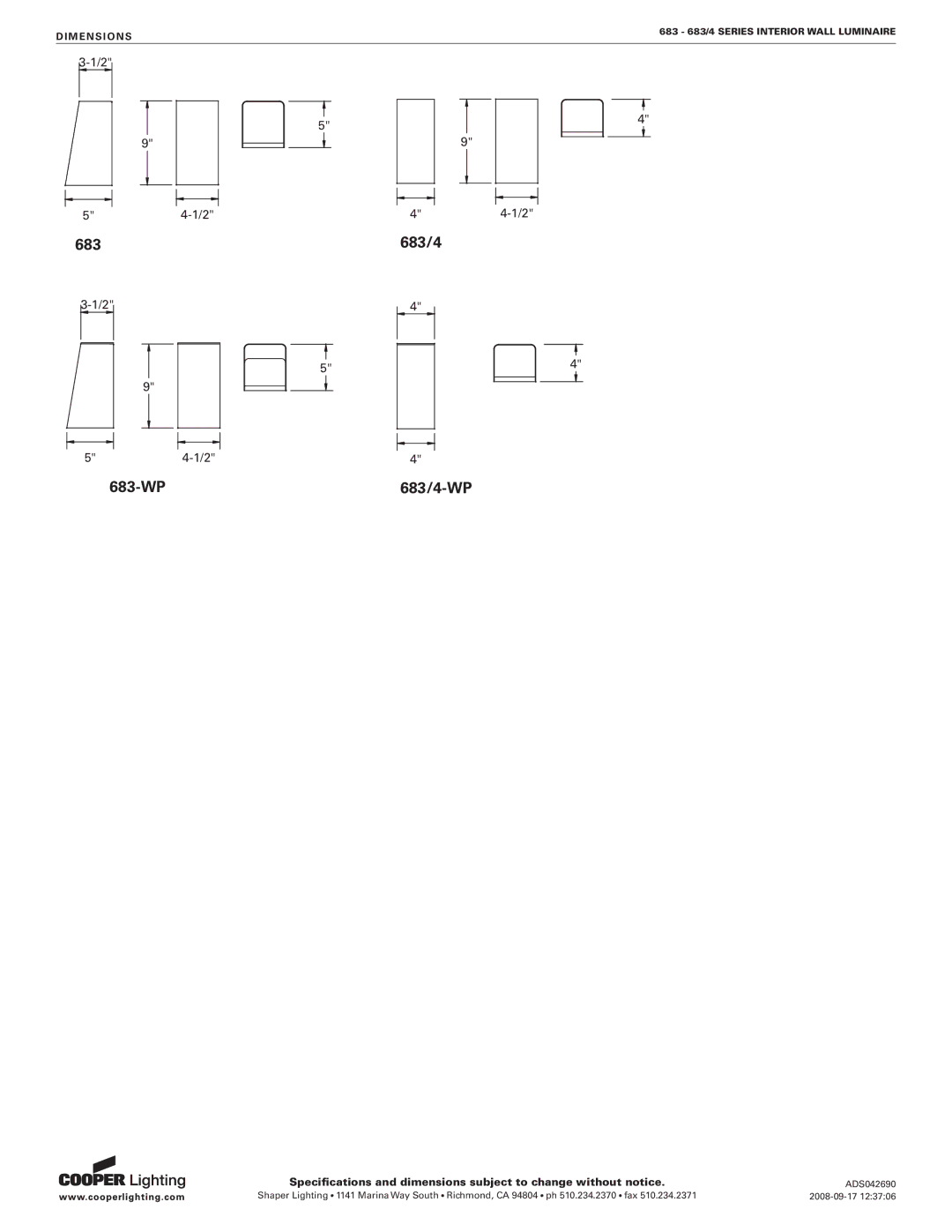

683SERIES 683/4 SERIES

I n t e r i o r Wa l l L u m i n a i r e S t a r t e r C o l l e c t i o n D i r e c t / I n d i r e c t

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

STARTER

COLLECTION

Shaper’s exclusive Starter Collection fixtures are featured throughout the Shaper product line. The concept of offering highly styled, affordable fixtures was introduced over fourteen years ago and has become one of our fastest growing lines. The design premise, basic construction, clean lines and unadorned shapes are highly desirable in modern architectural environments.

ORDERING INFORMATION

Sample Number: 683-CFL/1/26-277V-BK

SUSTAINABLE

DESIGN

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

Series

683 =Wall Sconce

683/4 =ADA Compliant

Wall Sconce

Notes:

1Available with CFL only.

2Supplied by others.

Lamp

CFL/1/13

CFL/1/26

INC/1/60

Voltage

120V

277V 1

347V 1

Finish	Options
BK =Black	DL =Damp Location
BM=Bronze Metallic	REM =Remote Emergency Battery 2
CC =Custom Color
DP =Dark Platinum
GM=Gold Metallic
GRM =Graphite Metallic
GY =Grey
MW=Matte White
NA =Natural Aluminum
SM=Silver Metallic
WH=White

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042690 2008-09-17 12:37:06
