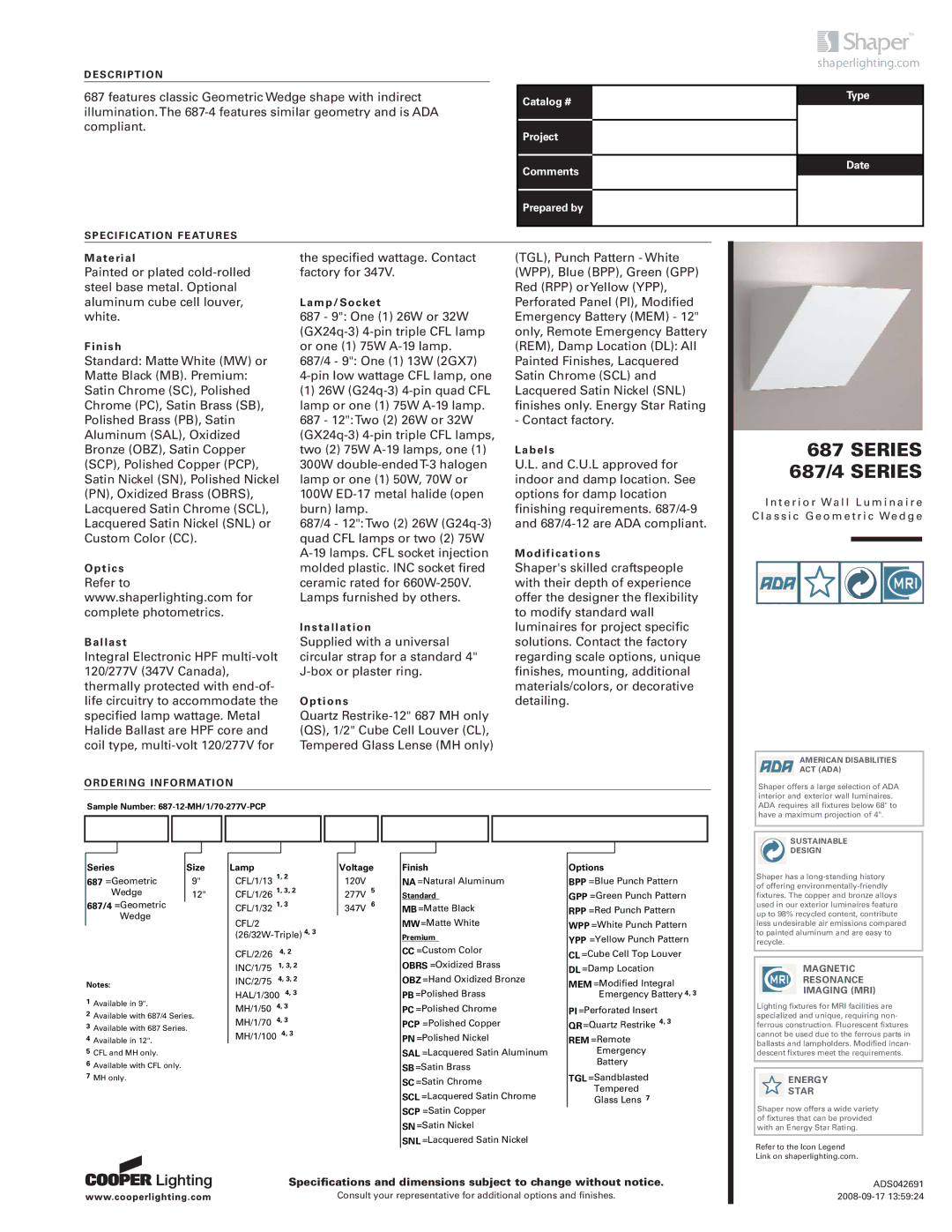

DESCRIPTION

687 features classic Geometric Wedge shape with indirect illumination.The 687-4 features similar geometry and is ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or plated cold-rolled steel base metal. Optional aluminum cube cell louver, white.

Finish

Standard: Matte White (MW) or Matte Black (MB). Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Aluminum (SAL), Oxidized Bronze (OBZ), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Oxidized Brass (OBRS), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral Electronic HPF multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage. Metal Halide Ballast are HPF core and coil type, multi-volt 120/277V for

ORDERING INFORMATION

the specified wattage. Contact factory for 347V.

Lamp/Socket

687 - 9": One (1) 26W or 32W (GX24q-3) 4-pin triple CFL lamp or one (1) 75W A-19 lamp. 687/4 - 9": One (1) 13W (2GX7)

4-pin low wattage CFL lamp, one

(1)26W (G24q-3) 4-pin quad CFL lamp or one (1) 75W A-19 lamp. 687 - 12":Two (2) 26W or 32W (GX24q-3) 4-pin triple CFL lamps, two (2) 75W A-19 lamps, one (1) 300W double-endedT-3 halogen lamp or one (1) 50W, 70W or 100W ED-17 metal halide (open burn) lamp.

687/4 - 12":Two (2) 26W (G24q-3) quad CFL lamps or two (2) 75W A-19 lamps. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Quartz Restrike-12" 687 MH only (QS), 1/2" Cube Cell Louver (CL), Tempered Glass Lense (MH only)

(TGL), Punch Pattern - White (WPP), Blue (BPP), Green (GPP) Red (RPP) orYellow (YPP), Perforated Panel (PI), Modified Emergency Battery (MEM) - 12" only, Remote Emergency Battery (REM), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only. Energy Star Rating - Contact factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. 687/4-9 and 687/4-12 are ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

687SERIES 687/4 SERIES

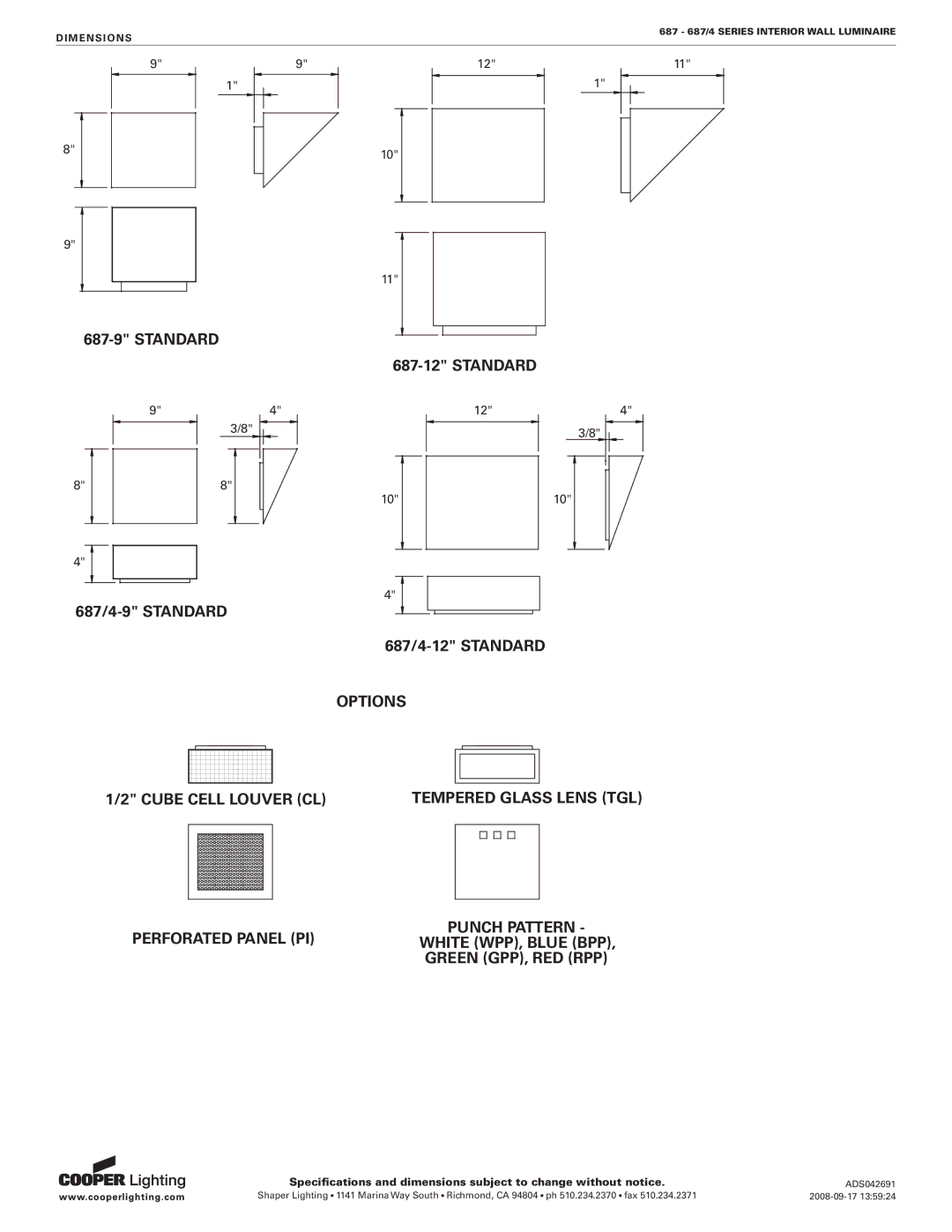

I n t e r i o r Wa l l L u m i n a i r e C l a s s i c G e o m e t r i c We d g e

AMERICAN DISABILITIES

ACT (ADA)

Shaper offers a large selection of ADA interior and exterior wall luminaires.

Sample Number: 687-12-MH/1/70-277V-PCP

ADA requires all fixtures below 68" to have a maximum projection of 4".

SUSTAINABLE

DESIGN

Series

Size

687 =Geometric

9"

Wedge

12"

687/4 =Geometric



Wedge



Notes:

1Available in 9".

2Available with 687/4 Series.

3Available with 687 Series.

4Available in 12".

5CFL and MH only.

6Available with CFL only.

7MH only.

Lamp

CFL/1/13 1, 2

CFL/1/26 1, 3, 2

CFL/1/32 1, 3

CFL/2 (26/32W-Triple) 4, 3

CFL/2/26 4, 2

INC/1/75 1, 3, 2

INC/2/75 4, 3, 2

HAL/1/300 4, 3

MH/1/50 4, 3

MH/1/70 4, 3

MH/1/100 4, 3

Voltage

120V

277V 5

347V 6

Finish

NA =Natural Aluminum

Standard

MB=Matte Black

MW=Matte White

Premium

CC=Custom Color

OBRS =Oxidized Brass

OBZ =Hand Oxidized Bronze

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SAL =Lacquered Satin Aluminum

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

BPP =Blue Punch Pattern

GPP =Green Punch Pattern

RPP =Red Punch Pattern

WPP =White Punch Pattern

YPP =Yellow Punch Pattern

CL =Cube Cell Top Louver

DL =Damp Location

MEM =Modified Integral

Emergency Battery 4, 3

PI =Perforated Insert

QR=Quartz Restrike 4, 3

REM =Remote

Emergency

Battery

TGL =Sandblasted

Tempered

Glass Lens 7

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% recycled content, contribute less undesirable air emissions compared to painted aluminum and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.

ADS042691 2008-09-17 13:59:24

Page 1
Image 1
