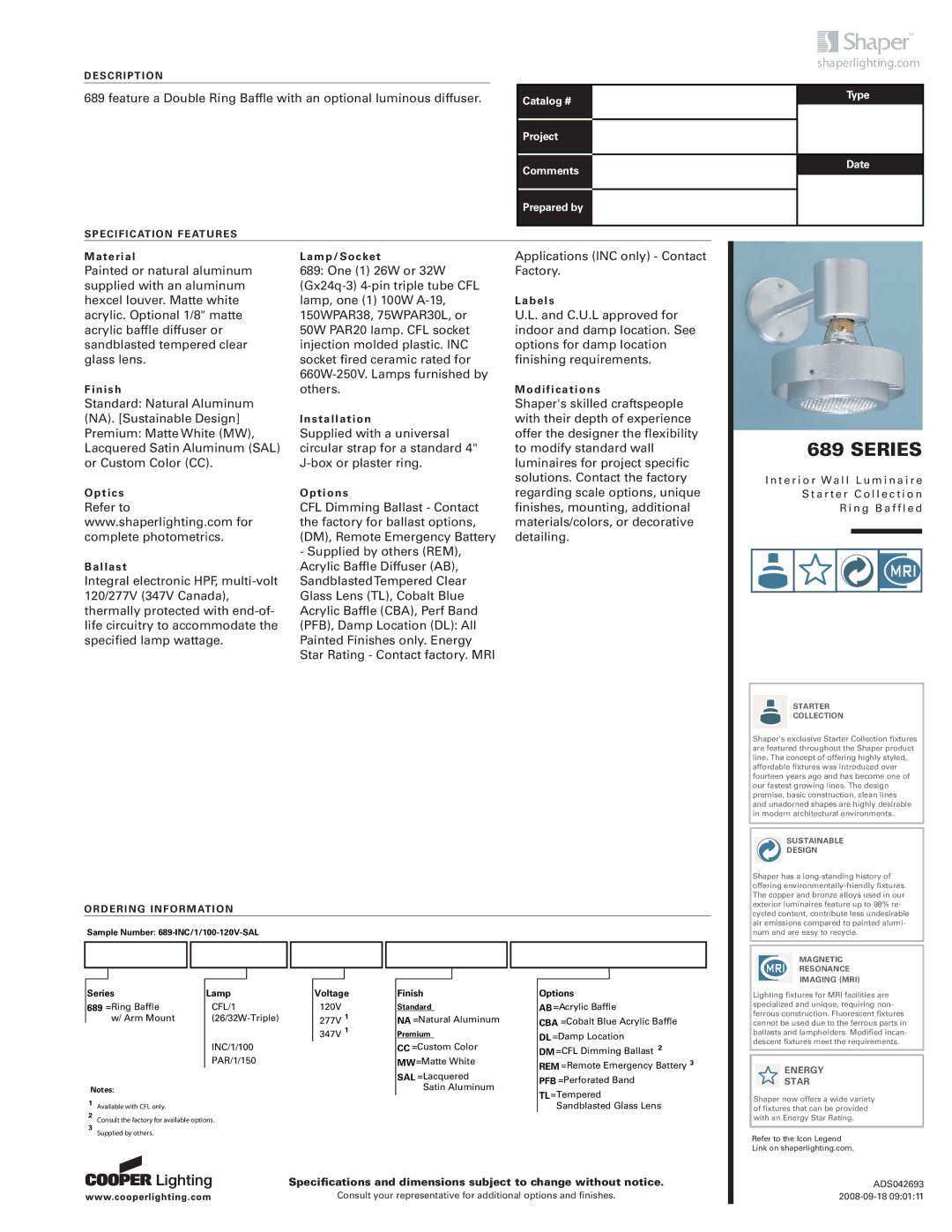

Cooper Lighting 689 specifications Series

DESCRIPTION

689 feature a Double Ring Baffle with an optional luminous diffuser.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or natural aluminum supplied with an aluminum hexcel louver. Matte white acrylic. Optional 1/8" matte acrylic baffle diffuser or sandblasted tempered clear glass lens.

Finish

Standard: Natural Aluminum (NA). [Sustainable Design] Premium: Matte White (MW), Lacquered Satin Aluminum (SAL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

689:One (1) 26W or 32W (Gx24q-3) 4-pin triple tube CFL lamp, one (1) 100W A-19, 150WPAR38, 75WPAR30L, or 50W PAR20 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

CFL Dimming Ballast - Contact the factory for ballast options, (DM), Remote Emergency Battery

-Supplied by others (REM), Acrylic Baffle Diffuser (AB), SandblastedTempered Clear Glass Lens (TL), Cobalt Blue Acrylic Baffle (CBA), Perf Band (PFB), Damp Location (DL): All Painted Finishes only. Energy Star Rating - Contact factory. MRI

Applications (INC only) - Contact Factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

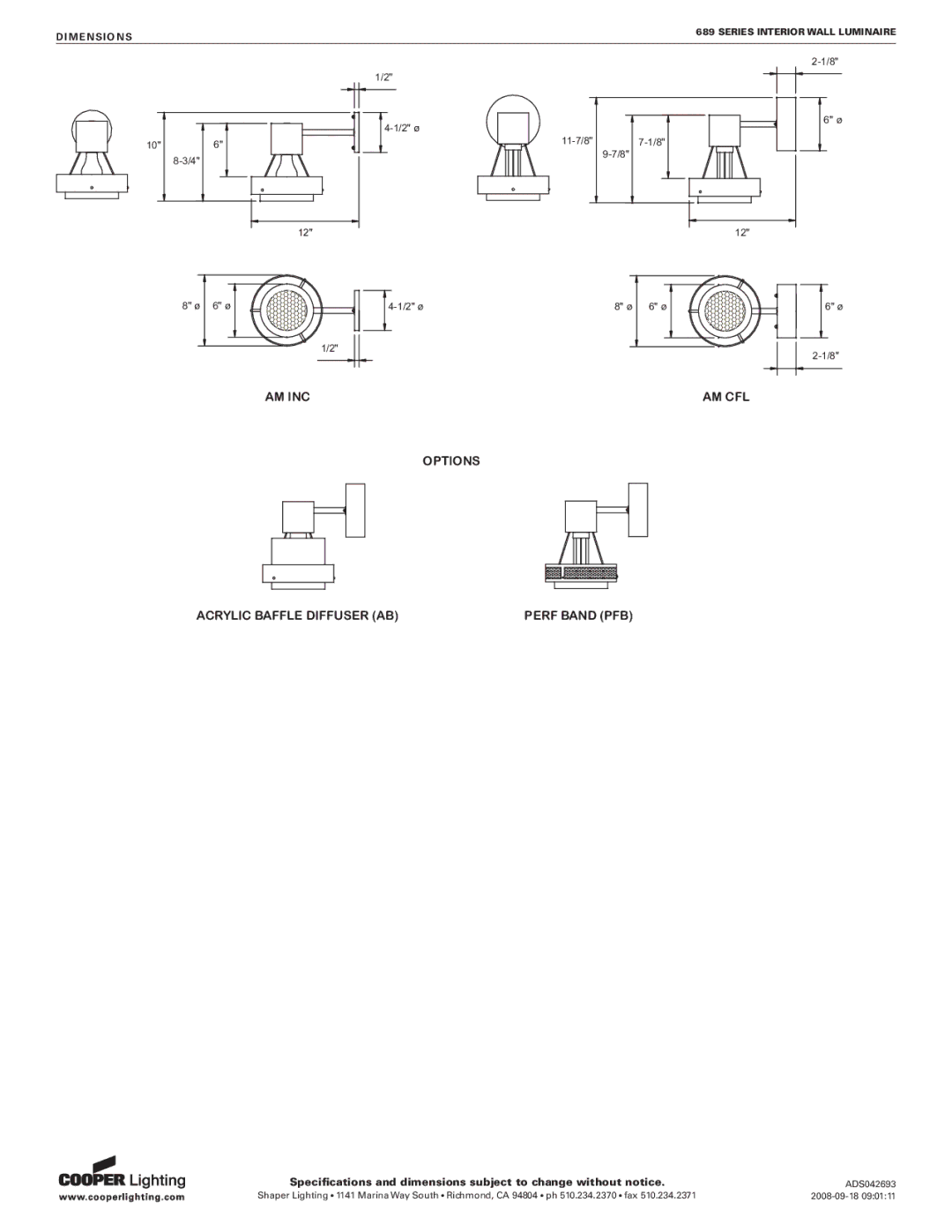

689 SERIES

I n t e r i o r Wa l l L u m i n a i r e S t a r t e r C o l l e c t i o n R i n g B a f f l e d

STARTER

COLLECTION

Shaper’s exclusive Starter Collection fixtures are featured throughout the Shaper product line. The concept of offering highly styled, affordable fixtures was introduced over fourteen years ago and has become one of our fastest growing lines. The design premise, basic construction, clean lines and unadorned shapes are highly desirable in modern architectural environments.

SUSTAINABLE

DESIGN

ORDERING INFORMATION

Sample Number: 689-INC/1/100-120V-SAL

Shaper has a long-standing history of offering environmentally-friendly fixtures. The copper and bronze alloys used in our exterior luminaires feature up to 98% re- cycled content, contribute less undesirable air emissions compared to painted alumi- num and are easy to recycle.

MAGNETIC

RESONANCE

IMAGING (MRI)

Series	Lamp
689 =Ring Baffle	CFL/1
w/ Arm Mount	(26/32W-Triple)
	INC/1/100
	PAR/1/150

Notes:

1Available with CFL only.

2Consult the factory for available options.

3

Supplied by others.

Voltage

120V

277V 1

347V 1

Finish

Standard

NA =Natural Aluminum

Premium

CC=Custom Color

MW=Matte White

SAL =Lacquered

Satin Aluminum

Options

AB =Acrylic Baffle

CBA =Cobalt Blue Acrylic Baffle

DL =Damp Location

DM =CFL Dimming Ballast 2

REM =Remote Emergency Battery 3

PFB =Perforated Band

TL=Tempered

Sandblasted Glass Lens

Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
