Cooper Lighting 693-S specifications SSERIES 693/4-SSERIES

DESCRIPTION

693-S featuresThree Stepped Floating Rings with a luminous bowl. 693/4-S features two stepped rings with a luminous bowl and is ADA compliant.

SPECIFICATION FEATURES

Catalog #

Project

Comments

Prepared by

shaperlighting.com

Type

Date

Material

Painted or plated cold-rolled steel base metal. Matte white acrylic lens.

Finish

Standard: Matte White (MW).

Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Oxidized Brass (OBRS), Satin Copper (SCP), Polished Copper (PCP), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC).

Optics

Refer to www.shaperlighting.com for complete photometrics.

Ballast

Integral electronic HPF, multi-volt 120/277V (347V Canada), thermally protected with end-of- life circuitry to accommodate the specified lamp wattage.

Lamp/Socket

693-S:Two (2) 13W (2GX7) 4-pin low wattage CFL, or 26W (GX24Q3) 4-pin triple tube CFL lamps, or one (1) 75W A-19 lamp. 693/4-S:Two (2) 7W (2G7) 4-pin (120V only) low wattage CFL lamps or one (1) 75W A-19 lamp. CFL socket injection molded plastic. INC socket fired ceramic rated for 660W-250V. Lamps furnished by others.

Installation

Supplied with a universal circular strap for a standard 4" J-box or plaster ring.

Options

Hand Painted Faux Alabaster Bowl (FB), Dimming Ballast - (693-S 26W only) - Contact the factory for ballast options (DM), HexcelTop Louver (HL), Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only, Remote Emergency Battery -

Supplied by others (REM). Energy Star Rating - Consult factory.

Labels

U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. 693/4-S is ADA compliant.

Modifications

Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

693-S SERIES 693/4-S SERIES

I n t e r i o r Wa l l L u m i n a i r e S t e p p e d R i n g S c o n c e

ORDERING INFORMATION

Sample Number: 693-S-CFL/2/26-277V-PCP

AMERICAN DISABILITIES

ACT (ADA)

Series

693-S= Stepped

Ring Sconce

693-S/4= ADA Compliant

Stepped

Ring Sconce

Notes:

1Available in 120V only.

2Available with 693/4-S Series

3Available with 693-S Series

4Available with CFL only.

5Consult the factory for available options.

626W only.

7Supplied by others.

Lamp

CFL/2/7 1, 2 CFL/2/13 3 CFL/2/26 3 INC/1/75

Voltage

120V

277V 4

347V 4

Finish

Standard

MW=Matte White

Premium

CC=Custom Color

OBRS =Oxidized Brass

PB =Polished Brass

PC =Polished Chrome

PCP =Polished Copper

PN =Polished Nickel

SB=Satin Brass

SC =Satin Chrome

SCL =Lacquered Satin Chrome

SCP =Satin Copper

SN=Satin Nickel

SNL =Lacquered Satin Nickel

Options

DL =Damp Location

DM =CFL Dimming

Ballast 5, 6, 3

REM =Remote

Emergency Battery 7

FB=Hand Painted

Faux Alabaster Bowl

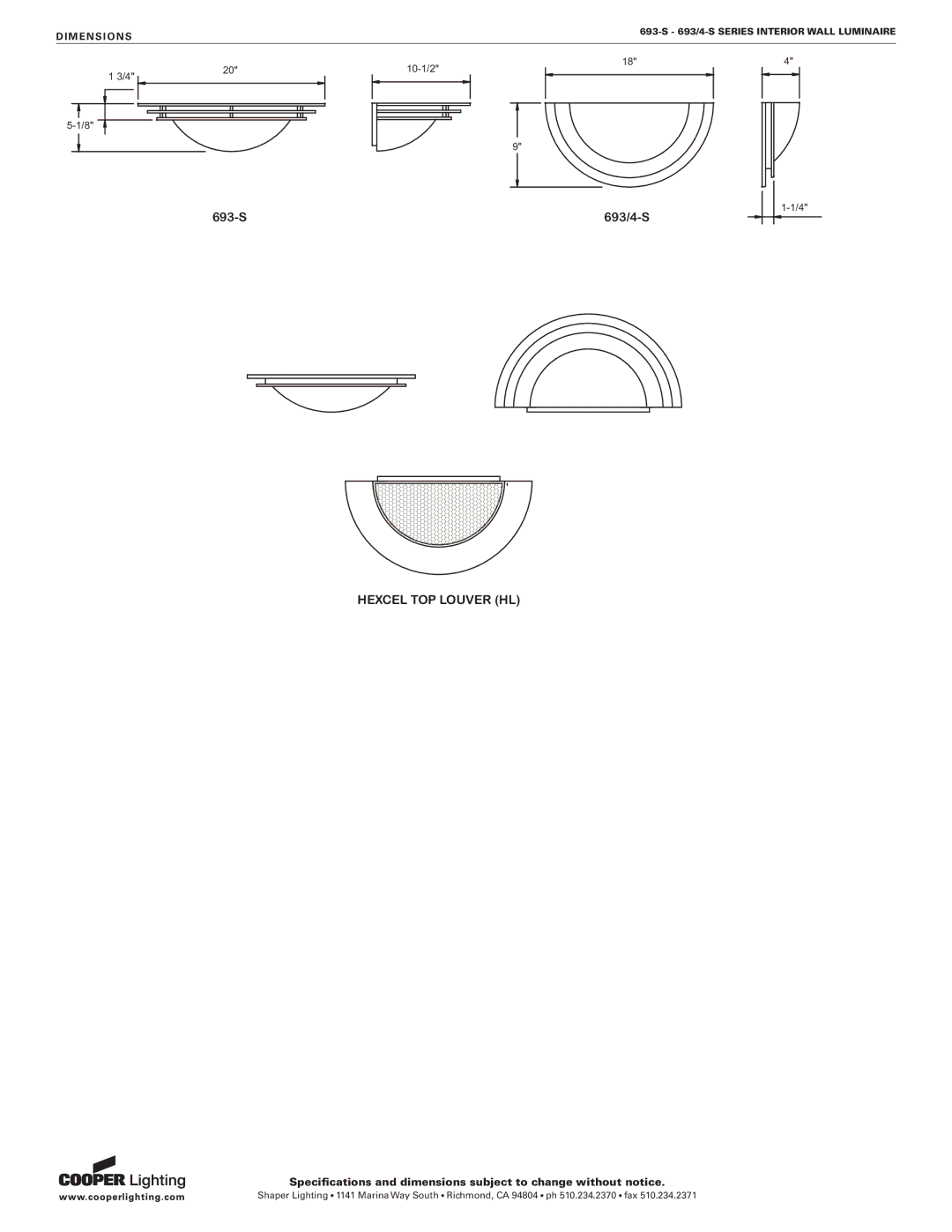

HL=Hexcel Louver

Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".

ENERGY

STAR

Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.

QUICK

SHIP (QS)

Shaper’s Quick Ship program features over thirty-four fixtures with finish options such as Satin Chrome, Natural Aluminum and Satin Brass, and a wide variety of lamp selections. All products ship in five days from receipt of order.

Refer to the Icon Legend

Link on shaperlighting.com.

Specifications and dimensions subject to change without notice.

Consult your representative for additional options and finishes.
