DESCRIPTION
693 Medallion featuresTwo Floating Rings with a luminous bowl.The 693/4 Medallion features One Floating Ring and is ADA compliant.
SPECIFICATION FEATURES
Catalog #
Project
Comments
Prepared by
shaperlighting.com
Type
Date
Material
Painted steel or plated solid brass. Matte white acrylic lens.
Finish
Standard: Matte White (MW).
Premium: Satin Chrome (SC), Polished Chrome (PC), Satin Brass (SB), Polished Brass (PB), Satin Copper (SCP), Polished Copper (PCP), Oxidized Brass (OBRS), Lacquered Satin Aluminum (SAL), Satin Nickel (SN), Polished Nickel (PN), Lacquered Satin Chrome (SCL), Lacquered Satin Nickel (SNL) or Custom Color (CC). For all polished finishes, the bottom inside edge of the ring is satin to prevent inner ring reflections.
Optics
Refer to www.shaperlighting.com for complete photometrics.
Ballast
Integral electronic HPF,
Lamp/Socket
One (1) 22W or 40WT5 circular fluorescent lamp or two (2) 40W
Installation
Supplied with a universal circular strap for a standard 4"
Options
Damp Location (DL): All Painted Finishes, Lacquered Satin Chrome (SCL) and Lacquered Satin Nickel (SNL) finishes only, Hand Painted Faux Alabaster Diffuser (FD), Remote Emergency Battery - Supplied by others (REM), One Proud Vertical and HorizontalTrim Bar with Half Cap (1PHTB/1PVTB/HC), One Proud HorizontalTrim Bar (1PHTB),Two Proud Horizontal and Vertical Trim Bars (2PHTB/2PVTB), One Proud Horizontal and Vertical Trim Bar (1PHTB/1PVTB). Energy Star Rating - consult factory. MRI Applications (INC only) - Contact Factory.
Labels
U.L. and C.U.L approved for indoor and damp location. See options for damp location finishing requirements. 693/4 is ADA compliant except with Proud Bar options.
Modifications
Shaper's skilled craftspeople with their depth of experience offer the designer the flexibility to modify standard wall luminaires for project specific solutions. Contact the factory regarding scale options, unique finishes, mounting, additional materials/colors, or decorative detailing.

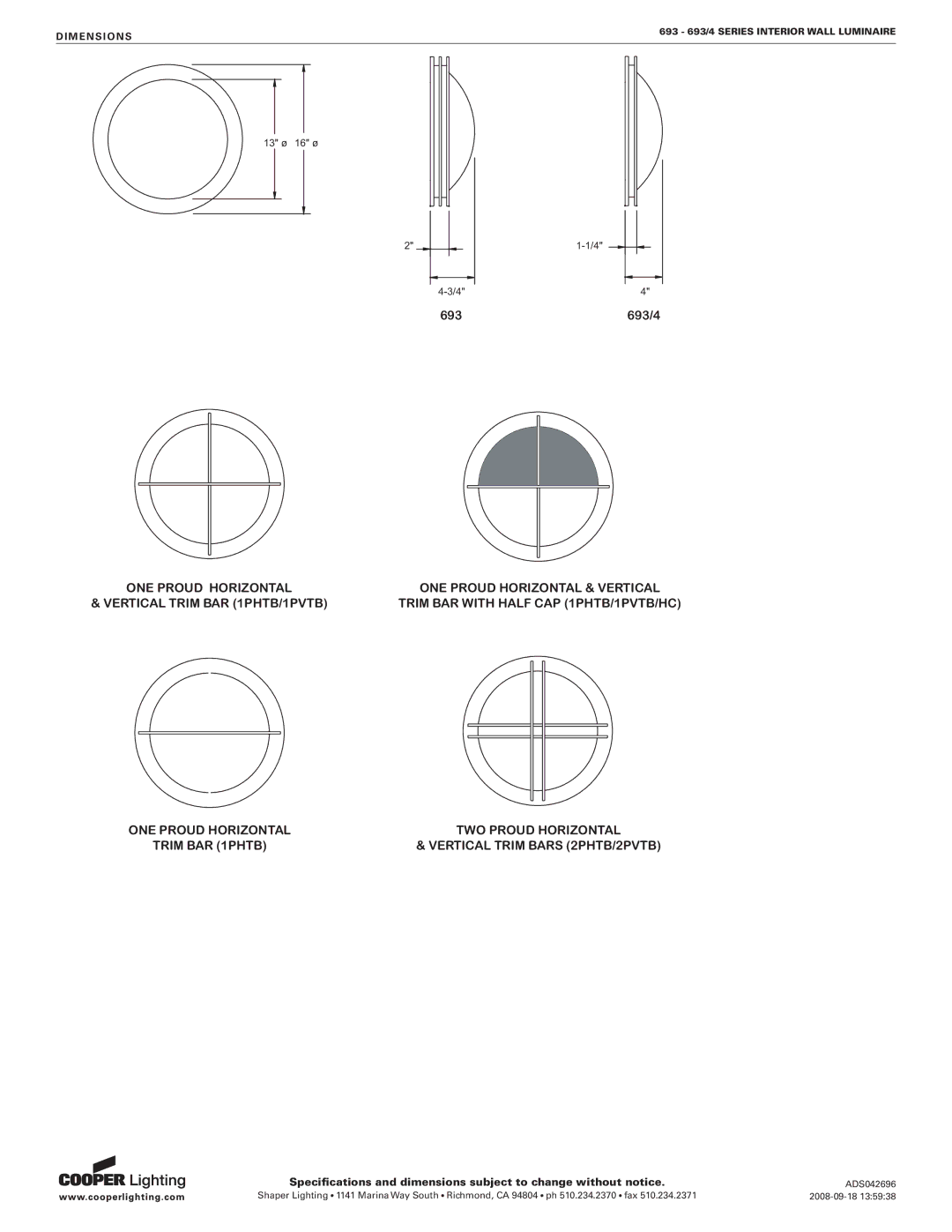

693SERIES 693/4 SERIES
I n t e r i o r Wa l l L u m i n a i r e M e d a l l i o n R i n g
AMERICAN DISABILITIES
ACT (ADA)
ORDERING INFORMATION
Sample Number:
Shaper offers a large selection of ADA interior and exterior wall luminaires. ADA requires all fixtures below 68" to have a maximum projection of 4".
ENERGY
STAR
Series
693 = Medallion
w/Two
Floating Rings
693/4= ADA Compliant
Medallion w/Two
Floating Rings
Notes:
1Available with CFL only.
2For polished finishes the bottom inside edge of the ring is satin to prevent upper ring reflections.
3Supplied by others.
Lamp
INC/2/40
T5C/1/22
T5C/1/40
Voltage
120V
277V1
347V1
Finish 2
Standard
MW=Matte White
Premium
CC= Custom Color
OBRS= Oxidized Brass
PB= Polished Brass
PC= Polished Chrome
PCP= Polished Copper
PN= Polished Nickel
SAL= Lacquered
Satin Aluminum
SB= Satin Brass
SC= Satin Chrome
SCL= Lacquered
Satin Chrome
SCP= Satin Copper
SN= Satin Nickel
SNL= Lacquered
Satin Nickel
Options
1PHTB= One Proud Horizontal Trim Bar
1PHTB/1PVTB= One Proud Vertical and
Horizontal Trim Bar
1PHTB/1PVTB/HC= One Proud Vertical and Horizontal Trim
Bar w/ Half Cup
2PHTB/2PVTB= Two Proud Horizontal and Vertical Trim Bars
DL= Damp Location
REM= Remote
Emergency Battery 3
FD= Hand Painted
Faux Alabaster Diffuser
Shaper now offers a wide variety of fixtures that can be provided with an Energy Star Rating.
MAGNETIC
RESONANCE
IMAGING (MRI)
Lighting fixtures for MRI facilities are specialized and unique, requiring non- ferrous construction. Fluorescent fixtures cannot be used due to the ferrous parts in ballasts and lampholders. Modified incan- descent fixtures meet the requirements.
QUICK
SHIP (QS)
Shaper’s Quick Ship program features over
Refer to the Icon Legend
Link on shaperlighting.com.
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
ADS042696
