18"

S[457mm] MIN.

4"

[102mm]

1-1/4" [32mm]

3-3/8" [86mm]

12" [305mm]

Construction: Extruded aluminum housing, 20- gauge steel side shields with staggered round hole pattern backed by white acrylic diffuser. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

End Plates: Die-formed aluminum.

Shielding: Parabolic, Semi-Specular Aluminum.

Electrical: 120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish: Durable, low gloss, white, powder coated acrylic finish.

Mounting: Pendant: Single stem (standard); single

cable. Canopy: 5” diameter cover (standard).

ORDERING INFORMATION:

Sample number: 16-DIP-3T5-SC35-2EB-DU-RP

Series

16=Europa

Light Output

DIP=Direct-Indirect Pendant

IP=Indirect Pendant (2 lamps only)

Number of Lamps (per cross section) (not included) 3=3 Lamps

Lamp Type





T8

T5

T5HO

Pendant Type

SC=Single Cable

ST=Single Stem 2

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1

1=120V 2=277V 3=347V U=Universal

Ballast

EB=Electronic Ballast (Standard) DB=Dimming Ballast [Only slim line ballast (small case)]

Switching





SI=Single Switching

DU=Dual Switching

Perforation



RP=Round

BP=None

SP=Slotted

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

NEO-RAY

SUSPENDED



EUROPA 16-DIP16-IP

I N D I R E C T- D I R E C T

• Indirect - direct light

distribution.

• T5 and T8 lamping options.

• Three distinct light

distributions - direct, indirect

and direct-indirect (specify

dual switching).

• Die formed steel perforated

housings.

• Dual aircraft cable hangers

for superior leveling.

• Nominal 3’, 4’, 5’, 6’ or 8’

long illuminated sections.

1 Due to various constraints, some options may not be combined with others. 2 Available with 7° or earthquake 45° swivel canopy assembly.

S= Slim Line Ballast only.

R O W C O N F I G U R AT I O N



3FT. Row

4FT. Row

5FT. Row

5-5/16" [151mm]

5-5/16"

26" [660mm]

38" [965mm]



50" [1270mm]

[151mm]











36-5/8" [938mm]

48-5/8" [1235mm]



60-5/8" [1540mm]



6FT. Row

8FT. Row



5-5/16" [151mm]

5-5/16"

62" [1575mm]



88-3/8" [2245mm]

[151mm]











72-5/8" [1845]



96-5/8" [2454]



20FT. Row





5-5/16" [151mm]

5-5/16"

92" [2337mm]



98" [2849mm]

44" [1118mm]

[151mm]









96-5/8" [2454] 96-5/8" [2454] 48-5/8" [1235mm]

1 3/8"[35mm]

20' - 5 1/2" [6209mm]

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

• Articulated joiners between

sections.

• Optional slotted perforated

pattern.

• Precision die cast end caps.

COOPER LIGHTING 725

Page 1

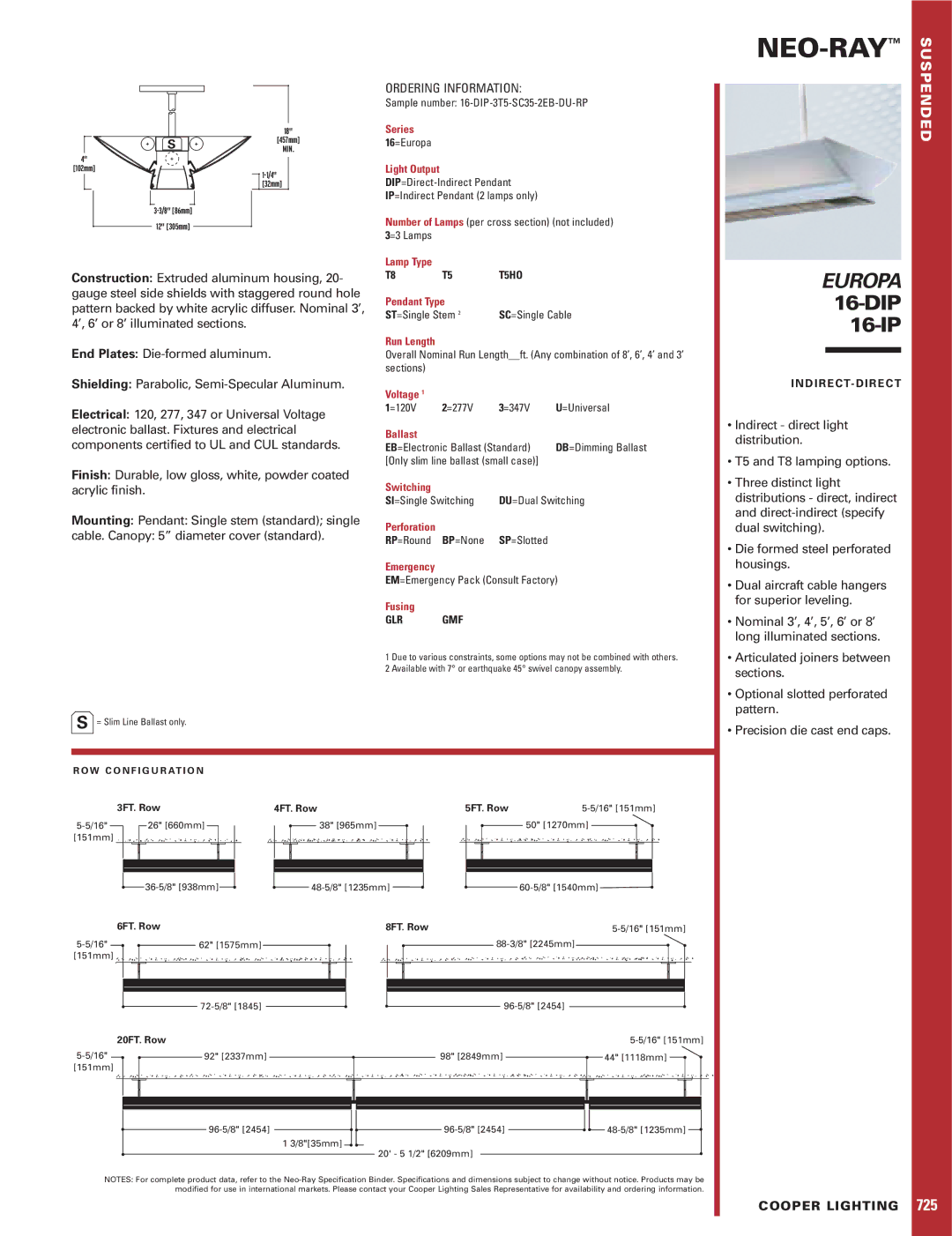

Image 1
