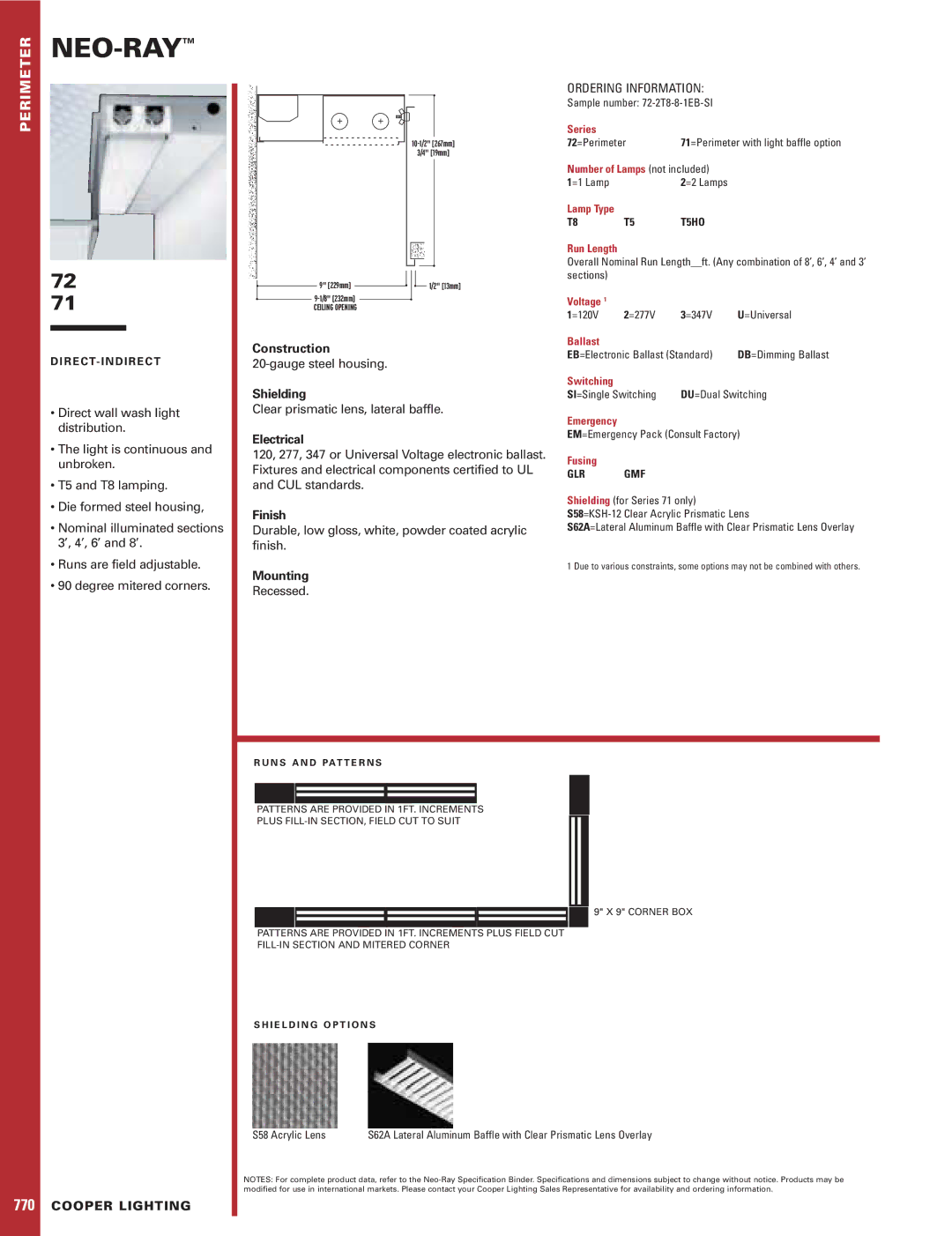

PERIMETER |
|
|
72
71
D I R E C T- I N D I R E C T
•Direct wall wash light distribution.
•The light is continuous and unbroken.
•T5 and T8 lamping.
•Die formed steel housing,
•Nominal illuminated sections 3’, 4’, 6’ and 8’.
•Runs are field adjustable.
•90 degree mitered corners.
3/4" [19mm]
9" [229mm] 1/2" [13mm]
CEILING OPENING
Construction
Shielding
Clear prismatic lens, lateral baffle.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
Recessed.
ORDERING INFORMATION:
Sample number:
Series |
|
|
72=Perimeter | 71=Perimeter with light baffle option | |
Number of Lamps (not included) | ||
1=1 Lamp |
| 2=2 Lamps |
Lamp Type |
|
|
T8 | T5 | T5HO |
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching |
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding (for Series 71 only)
S62A=Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
1 Due to various constraints, some options may not be combined with others.
770 COOPER LIGHTING
R U N S A N D PAT T E R N S
PATTERNS ARE PROVIDED IN 1FT. INCREMENTS
PLUS
9" X 9" CORNER BOX
PATTERNS ARE PROVIDED IN 1FT. INCREMENTS PLUS FIELD CUT
S H I E L D I N G O P T I O N S
S58 Acrylic Lens | S62A Lateral Aluminum Baffle with Clear Prismatic Lens Overlay |
NOTES: For complete product data, refer to the
