89DIW



83DW













6-1/4"

[159mm]

80IW

1/2" [13mm]







6" [153mm]





Construction

20-gauge steel housing. Nominal 3’, 4’, 6’ or 8’ illuminated sections.

End Caps

20-gauge steel construction.

ORDERING INFORMATION:

Sample number: 83DW-2T8-36-2EB-SI-S79

Series







89DI=Direct/Indirect

83D=Direct

80I=Indirect

Mounting







W=Wall







Number of Lamps (per cross section) (not included)

1=1 Lamp (T8, T5, T5HO)



2=2 Lamps (T8, T5, T5HO)

Lamp Type







T8

T5

T5HO



Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

NEO-RAY

WALL



GEO 89-DIW83-DW80-IW

Shielding

White bold baffle louver. White acrylic diffuser. Prismatic acrylic lens. Parabolic baffle.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Wall mounted.

Switching

SI=Single Switching DU=Dual Switching (2 Lamps)

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding (Available for 83 and 89 only)

S22=White Acrylic Diffuser with Mullion

S72=White Bold Baffle

S58=KSH-12 Clear Acrylic Prismatic Lens with Mullion S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others.

D I R E C T- I N D I R E C T

GEO 89 DIW FEATURES

• Direct – indirect light

distribution.

• The light is continuous and

unbroken.

• Die formed steel housing,

nominal illuminated sections

3’, 4’, 6’ and 8’.

• Runs provided to the nearest

foot.

• Patterns are formed by

butting standard sections.

• Selection of 4 light diffuser

options.

• Rigid ‘U’ shaped double

formed trim with 3/8”

S T A N D A R D L U M I N A I R E L E N G T H S *

6"





6"





6"







































6"





















[152mm]













[152mm]

[152mm]



















[152mm]





















































30" [762mm]









30" [762mm]















































































































































































































































































































































































































































































36" & 48"

































72" [1829mm]















ILLUMINATED





















[914mm] & [1219mm]























































90˚ MITERED CORNER

















































































































































































ILLUMINATED PATTERNS ARE PROVIDED IN

6"



















































6"





















1 FOOT INCREMENTS PLUS 7 3/4" CONSULT



[152mm]



























[152mm]









FACTORY FOR CONTINUOUS RUN MOUNTING























42" [1067mm]













42" [1067mm]





























BOX LOCATIONS



















































































































































































































































































































































































































































































































96" [2438mm]





















































































































































































































S22 Acrylic Diffuser

S58 Acrylic Lens

S72 Bold Baffle

S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

regress soft lit edge.

• Housings may be special

ordered custom finished.

GEO 80 IW features

• Indirect light distribution.

GEO 83 DW features

• Direct light distribution.

COOPER LIGHTING 739

Page 1
Image 1

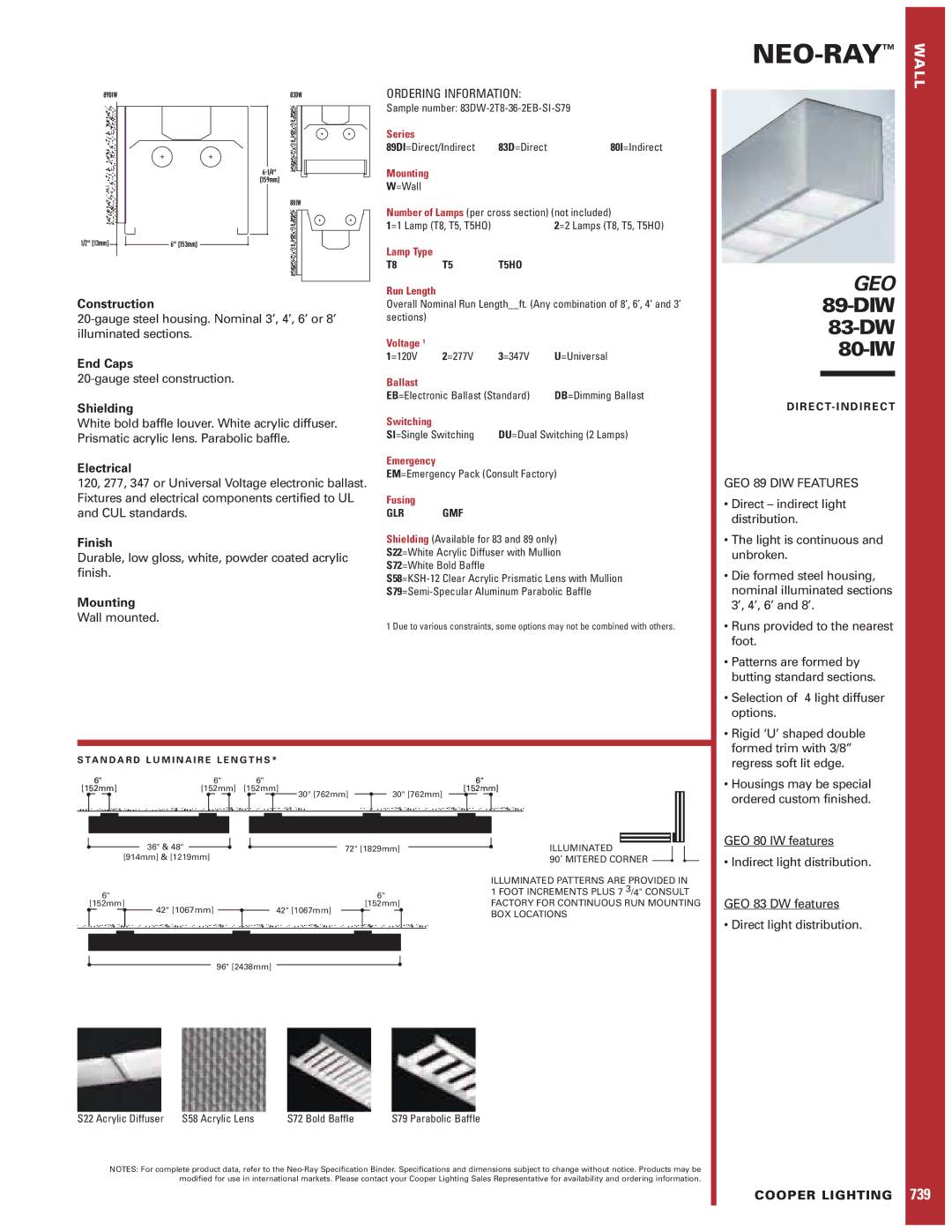

Cooper Lighting 739 specifications Construction, End Caps, Shielding, Electrical, Finish, Mounting
