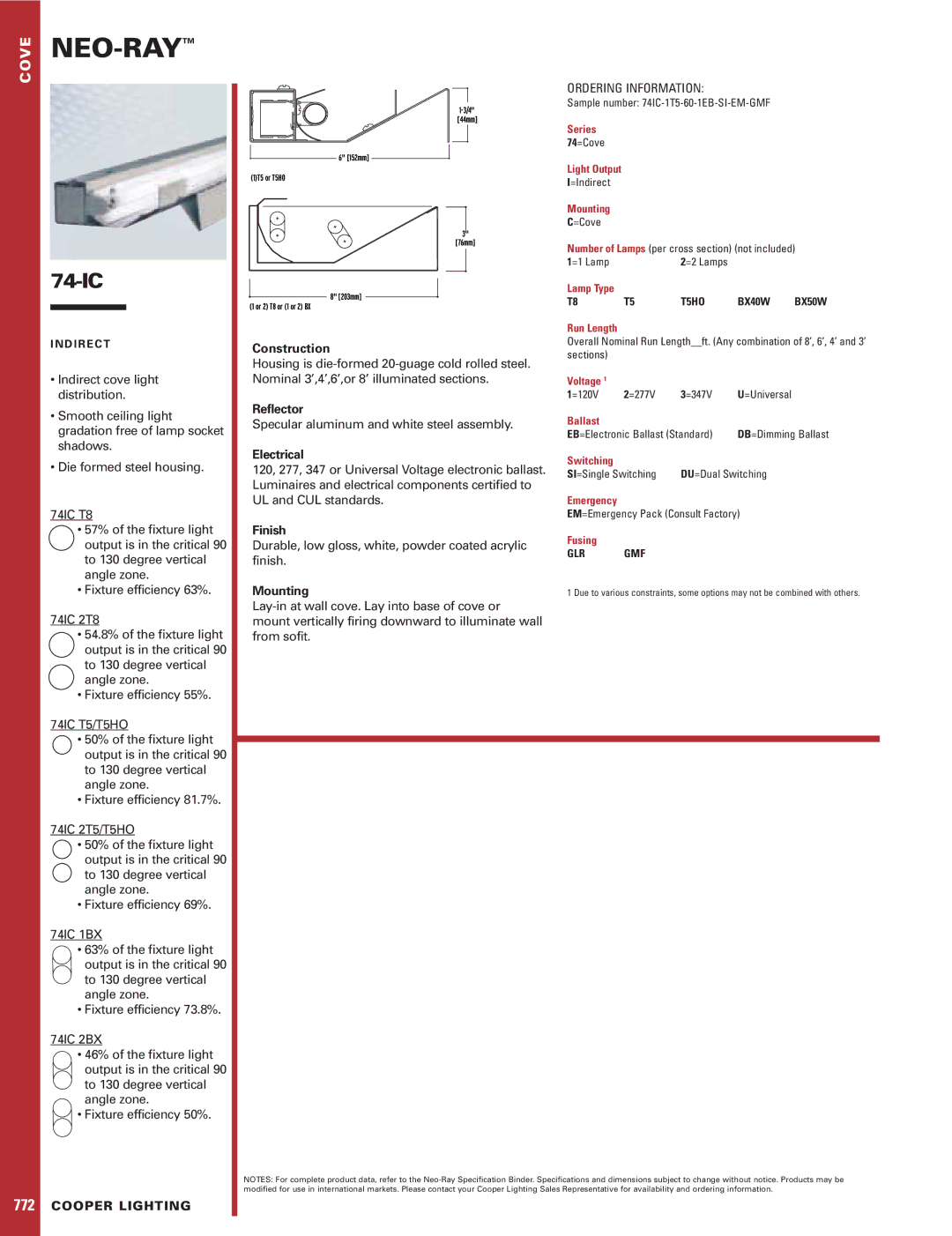

COVE |
|
|
74-IC
I N D I R E C T
•Indirect cove light distribution.
•Smooth ceiling light gradation free of lamp socket shadows.
•Die formed steel housing.
74IC T8
•57% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 63%.
74IC 2T8
•54.8% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 55%.
74IC T5/T5HO
•50% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 81.7%.
74IC 2T5/T5HO
•50% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 69%.
74IC 1BX
•63% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 73.8%.
74IC 2BX
•46% of the fixture light output is in the critical 90 to 130 degree vertical angle zone.
•Fixture efficiency 50%.
6" [152mm]
(1)T5 or T5HO
3"
[76mm]
8" [203mm] (1 or 2) T8 or (1 or 2) BX
Construction
Housing is
Reflector
Specular aluminum and white steel assembly.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Luminaires and electrical components certified to UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
ORDERING INFORMATION:
Sample number:
Series 74=Cove
Light Output
I=Indirect
Mounting
C=Cove
Number of Lamps (per cross section) (not included)
1=1 Lamp |
| 2=2 Lamps |
|
|
Lamp Type |
|
|
|
|
T8 | T5 | T5HO | BX40W | BX50W |
Run Length
Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching |
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
1 Due to various constraints, some options may not be combined with others.
772 COOPER LIGHTING
NOTES: For complete product data, refer to the
