RECESSED |
|
|
3" [76mm] |
ORDERING INFORMATION:
Sample number:
254/252
24" [610mm]
Series
152=1’X2’ 154=1’x4’ 252=2’x2’ 254=2’x4’
Options 2
A=Air ReturnT=Tannenbaum Reflector C=Chicago Plenum

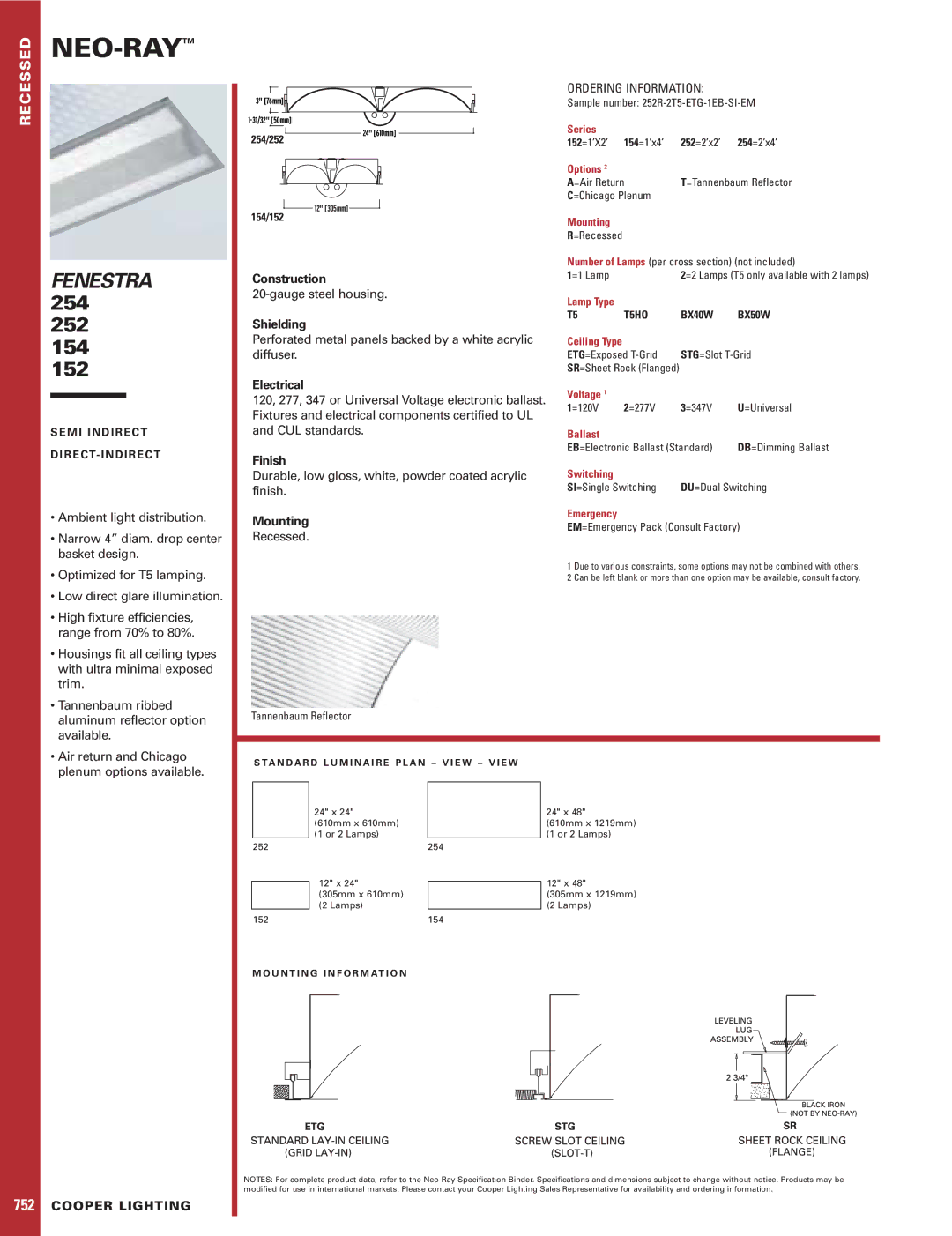

FENESTRA 254 252 154 152
S E M I I N D I R E C T
D I R E C T- I N D I R E C T
• Ambient light distribution. |
• Narrow 4” diam. drop center |
basket design. |
12" [305mm]
154/152
Construction
Shielding
Perforated metal panels backed by a white acrylic diffuser.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
Recessed.
Mounting
R=Recessed
Number of Lamps (per cross section) (not included)
1=1 Lamp |
| 2=2 Lamps (T5 only available with 2 lamps) | |
Lamp Type |
|
|
|
T5 | T5HO | BX40W | BX50W |
Ceiling Type
ETG=Exposed
SR=Sheet Rock (Flanged)
Voltage 1 |
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
Ballast |
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | ||
Switching |
|
|
|
SI=Single Switching | DU=Dual Switching |
Emergency
EM=Emergency Pack (Consult Factory)
• Optimized for T5 lamping. |
• Low direct glare illumination. |
• High fixture efficiencies, |
range from 70% to 80%. |
• Housings fit all ceiling types |
with ultra minimal exposed |
trim. |
• Tannenbaum ribbed |
aluminum reflector option |
available. |
• Air return and Chicago |
1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.
Tannenbaum Reflector
plenum options available. |
S T A N D A R D L U M I N A I R E P L A N – V I E W – V I E W
| 24" x 24" |
|
| (610mm x 610mm) |
|
| (1 or 2 Lamps) |
|
252 | 254 | |
| 12" x 24" |
|
|
| |
| (305mm x 610mm) |
|
| (2 Lamps) |
|
152 | 154 |
24" x 48"
(610mm x 1219mm) (1 or 2 Lamps)
12" x 48"
(305mm x 1219mm) (2 Lamps)
752 COOPER LIGHTING
M O U N T I N G I N F O R M AT I O N
NOTES: For complete product data, refer to the
