[168mm] | 6" |
[152mm] | |
| 12" [305mm] |
OAL | ||
48" | CL to CL |
|
[1216mm] |
| |
Construction
Shielding
.75” high blade baffle 3” oc. with prismatic clear acrylic overlay.
Electrical
120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.
Finish
Durable, low gloss, white, powder coated acrylic finish.
Mounting
Recessed.
ORDERING INFORMATION:
Sample number:
Series
7VC=Specialty
Mounting
R=Recessed
Fixture Size |
|
|
|
|
12=1’x2’’ | 14=1’x4’ | 22=2’x2 |
|
|
Number of Lamps (per cross section) (not included) | ||||
1=1 Lamp |
| 2=2 Lamps (T5, T5HO) |
| |
Lamp Type |
|
|
|
|
T5 | T5HO | BX40W | BX50W |
|
Ceiling Type |
|
|
|
|
ETG=Exposed | STG=Slot | SR=Sheet Rock | ||
Voltage 1 |
|
|
|
|
1=120V | 2=277V | 3=347V | U=Universal |
|
Ballast |
|
|
|
|
EB=Electronic Ballast (Standard) | DB=Dimming Ballast | |||
Switching |
|
|
|
|
SI=Single Switching | DU=Dual Switching |
| ||
Emergency
EM=Emergency Pack (Consult Factory)
Fusing
GLR GMF
Shielding
S62A=Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
1 Due to various constraints, some options may not be combined with others.
| SPECIALTY |
|

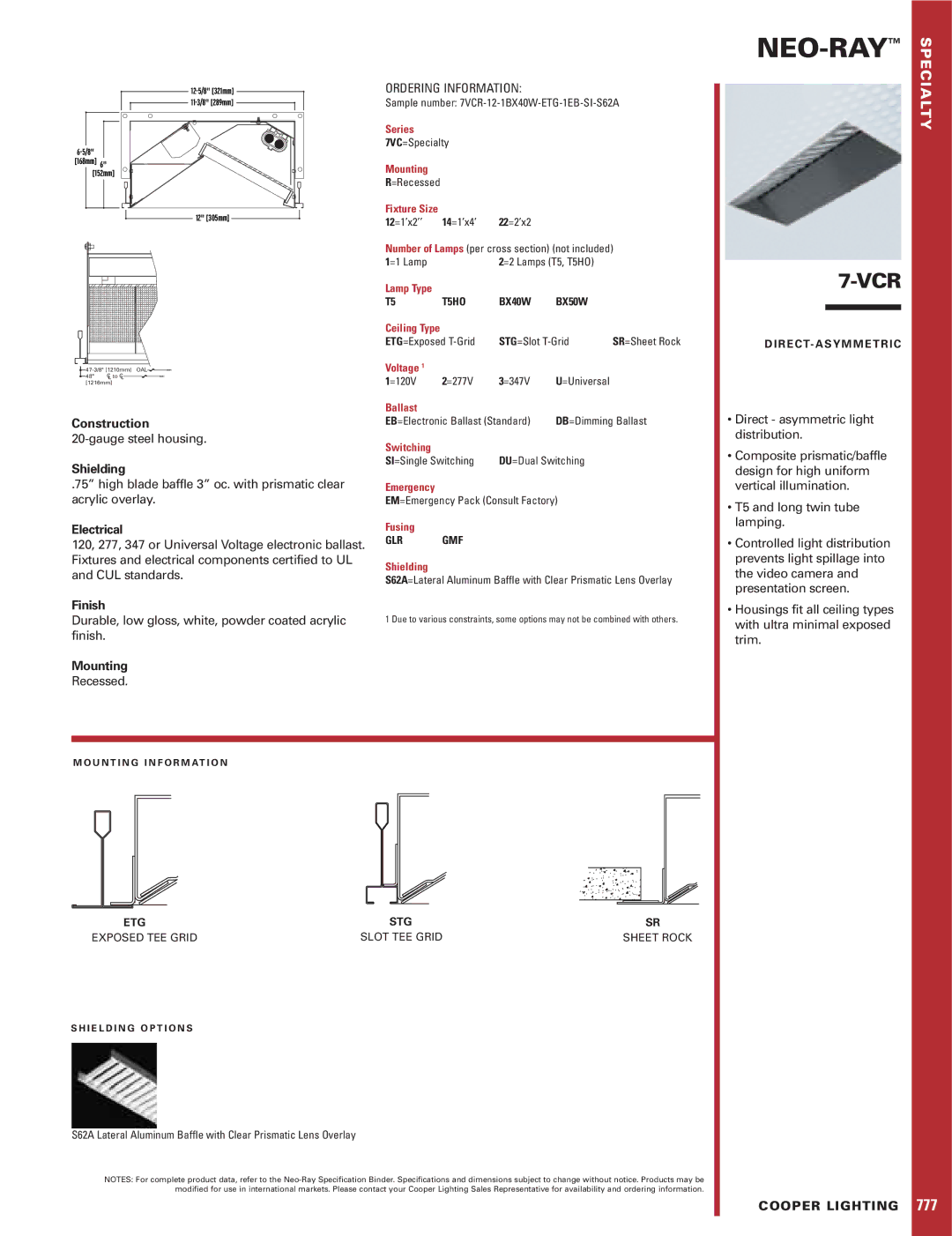

7-VCR
D I R E C T- A S Y M M E T R I C
•Direct - asymmetric light distribution.
•Composite prismatic/baffle design for high uniform vertical illumination.
•T5 and long twin tube lamping.
•Controlled light distribution prevents light spillage into the video camera and presentation screen.
•Housings fit all ceiling types with ultra minimal exposed trim.
M O U N T I N G I N F O R M AT I O N
ETG | STG | SR |
EXPOSED TEE GRID | SLOT TEE GRID | SHEET ROCK |
S H I E L D I N G O P T I O N S
S62A Lateral Aluminum Baffle with Clear Prismatic Lens Overlay
NOTES: For complete product data, refer to the
