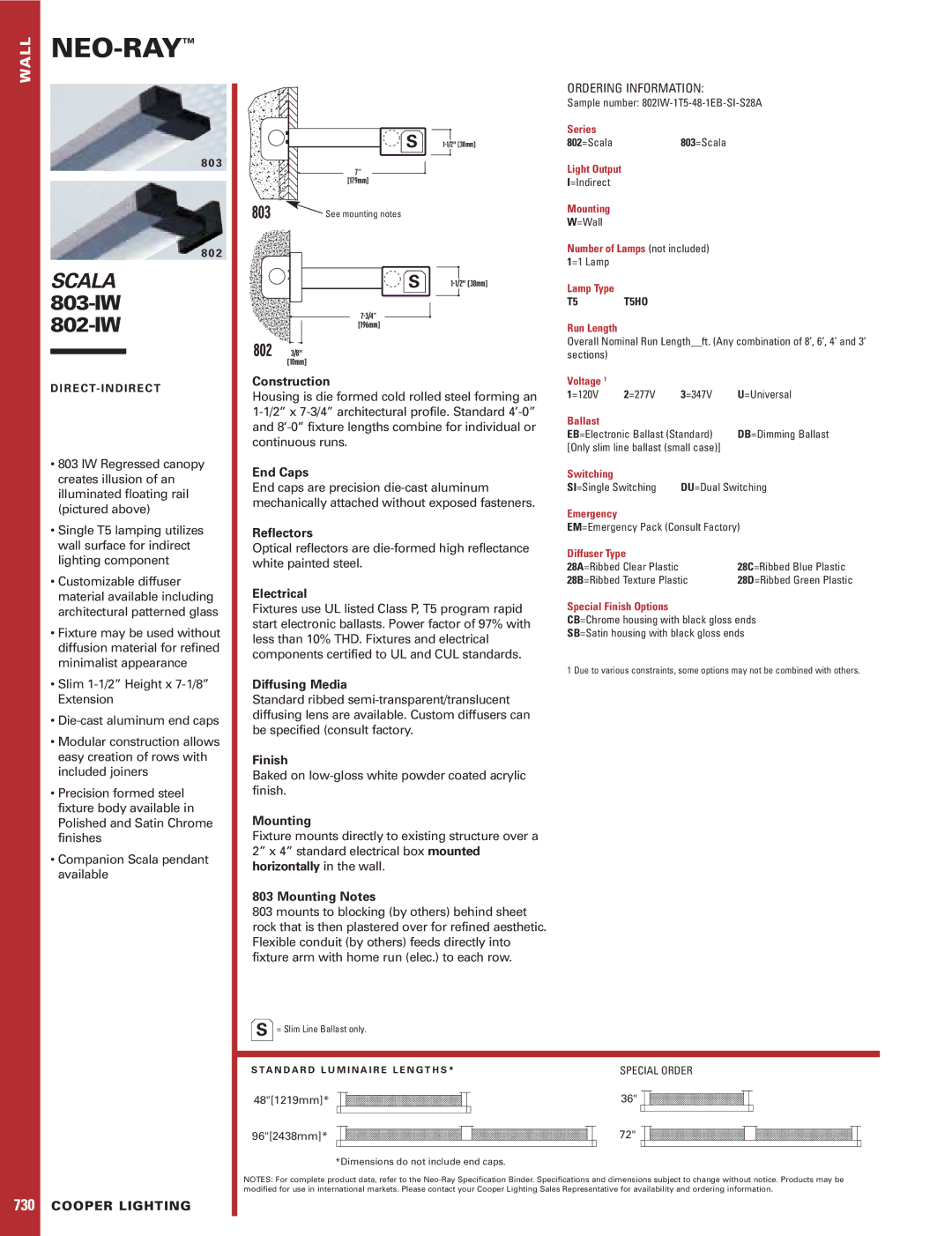

Cooper Lighting 730 specifications Neo-Ray, SCALA 803-IW 802-IW, Wall

WALL NEO-RAY™

8 0 3

S

7”

[179mm]

803 See mounting notes

	ORDERING INFORMATION:
	Sample number: 802IW-1T5-48-1EB-SI-S28A
	Series
1-1/2" [38mm]	802=Scala	803=Scala

Light Output

I=Indirect

Mounting

W=Wall

8 0 2

SCALA 803-IW802-IW

D I R E C T- I N D I R E C T

• 803 IW Regressed canopy

creates illusion of an

illuminated floating rail

(pictured above)

• Single T5 lamping utilizes

wall surface for indirect

lighting component

• Customizable diffuser

material available including

architectural patterned glass

• Fixture may be used without

diffusion material for refined

minimalist appearance

S
	1-1/2" [38mm]

7-3/4” [196mm]

802 3/8" [10mm]

Construction

Housing is die formed cold rolled steel forming an 1-1/2” x 7-3/4” architectural profile. Standard 4’-0” and 8’-0” fixture lengths combine for individual or continuous runs.

End Caps

End caps are precision die-cast aluminum mechanically attached without exposed fasteners.

Reflectors

Optical reflectors are die-formed high reflectance white painted steel.

Electrical

Fixtures use UL listed Class P, T5 program rapid start electronic ballasts. Power factor of 97% with less than 10% THD. Fixtures and electrical components certified to UL and CUL standards.

Number of Lamps (not included) 1=1 Lamp

Lamp Type

T5T5HO

Run Length

Overall Nominal Run Length__ft. (Any combination of 8’, 6’, 4’ and 3’ sections)

Voltage 1

1=120V 2=277V 3=347V U=Universal

Ballast

EB=Electronic Ballast (Standard) DB=Dimming Ballast [Only slim line ballast (small case)]

Switching
SI=Single Switching	DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Diffuser Type
28A=Ribbed Clear Plastic	28C=Ribbed Blue Plastic
28B=Ribbed Texture Plastic	28D=Ribbed Green Plastic

Special Finish Options

CB=Chrome housing with black gloss ends

SB=Satin housing with black gloss ends

1 Due to various constraints, some options may not be combined with others.

• Slim 1-1/2” Height x 7-1/8”

Extension

• Die-cast aluminum end caps

• Modular construction allows

easy creation of rows with

included joiners

• Precision formed steel

fixture body available in

Polished and Satin Chrome

finishes

• Companion Scala pendant

available

730 COOPER LIGHTING

Diffusing Media

Standard ribbed semi-transparent/translucent diffusing lens are available. Custom diffusers can be specified (consult factory.

Finish

Baked on low-gloss white powder coated acrylic finish.

Mounting

Fixture mounts directly to existing structure over a 2” x 4” standard electrical box mounted horizontally in the wall.

803 Mounting Notes

803 mounts to blocking (by others) behind sheet rock that is then plastered over for refined aesthetic. Flexible conduit (by others) feeds directly into fixture arm with home run (elec.) to each row.

S = Slim Line Ballast only.

S T A N D A R D L U M I N A I R E L E N G T H S *	SPECIAL ORDER
48"[1219mm]*	36"
96"[2438mm]*	72"

*Dimensions do not include end caps.

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.
