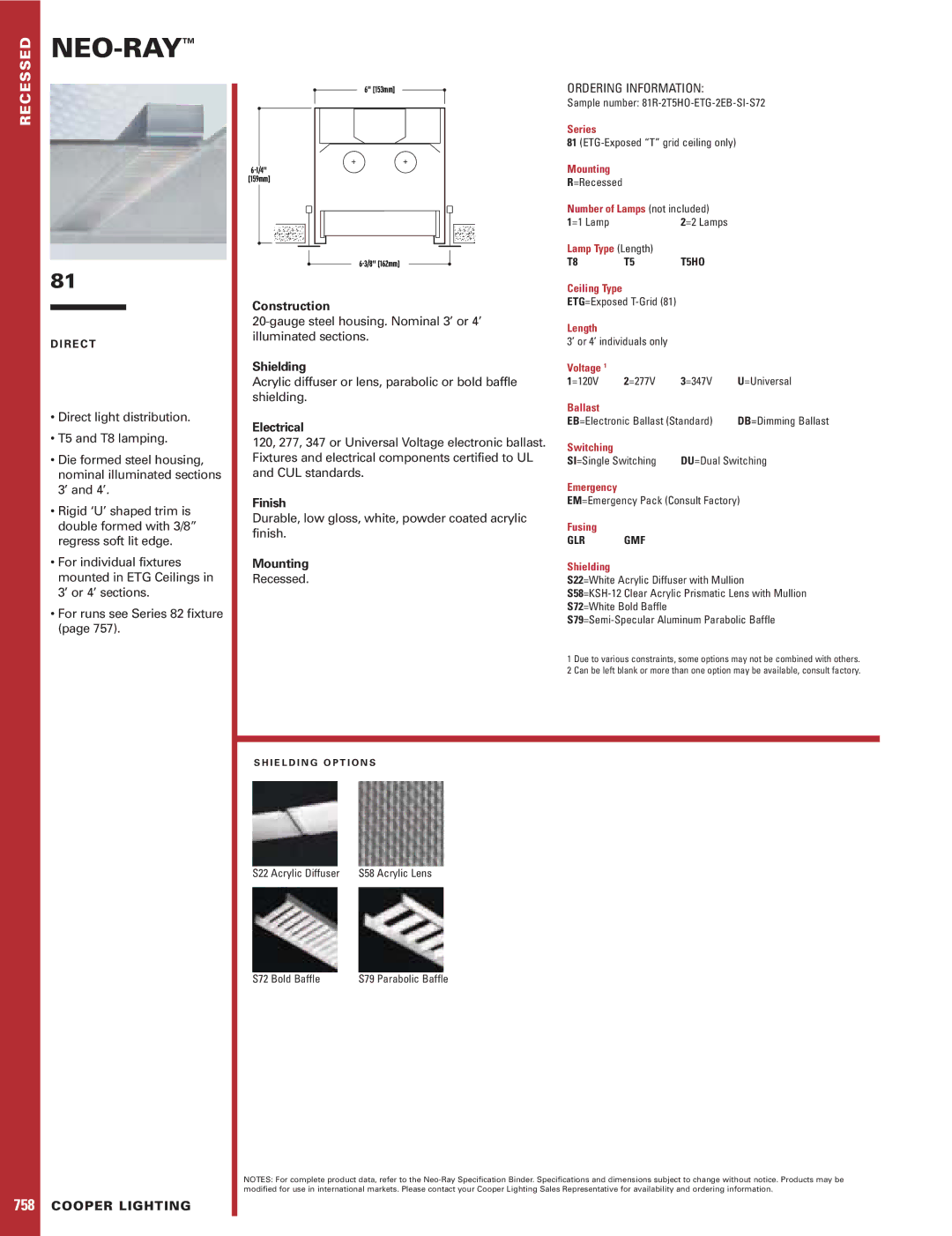

RECESSED

NEO-RAY

81

D I R E C T

Direct light distribution.

T5 and T8 lamping.

Die formed steel housing, nominal illuminated sections 3’ and 4’.

Rigid ‘U’ shaped trim is double formed with 3/8” regress soft lit edge.

For individual fixtures mounted in ETG Ceilings in 3’ or 4’ sections.

For runs see Series 82 fixture (page 757).

6" [153mm]

6-1/4" [159mm]

6-3/8" [162mm]

Construction

20-gauge steel housing. Nominal 3’ or 4’ illuminated sections.

Shielding

Acrylic diffuser or lens, parabolic or bold baffle shielding.

Electrical

120, 277, 347 or Universal Voltage electronic ballast. Fixtures and electrical components certified to UL and CUL standards.

Finish

Durable, low gloss, white, powder coated acrylic finish.

Mounting

Recessed.

ORDERING INFORMATION:

Sample number: 81R-2T5HO-ETG-2EB-SI-S72

Series

81 (ETG-Exposed “T” grid ceiling only)

Mounting

R=Recessed

Number of Lamps (not included)

1=1 Lamp



2=2 Lamps

Lamp Type (Length)



T8

T5

T5HO

Ceiling Type

ETG=Exposed T-Grid (81)

Length

3’ or 4’ individuals only

Voltage 1







1=120V

2=277V

3=347V

U=Universal

Ballast







EB=Electronic Ballast (Standard)

DB=Dimming Ballast

Switching







SI=Single Switching

DU=Dual Switching

Emergency

EM=Emergency Pack (Consult Factory)

Fusing

GLR GMF

Shielding

S22=White Acrylic Diffuser with Mullion

S58=KSH-12 Clear Acrylic Prismatic Lens with Mullion S72=White Bold Baffle

S79=Semi-Specular Aluminum Parabolic Baffle

1 Due to various constraints, some options may not be combined with others. 2 Can be left blank or more than one option may be available, consult factory.

758

COOPER LIGHTING

S H I E L D I N G O P T I O N S

S22 Acrylic Diffuser

S58 Acrylic Lens

S72 Bold Baffle

S79 Parabolic Baffle

NOTES: For complete product data, refer to the Neo-Ray Specification Binder. Specifications and dimensions subject to change without notice. Products may be modified for use in international markets. Please contact your Cooper Lighting Sales Representative for availability and ordering information.

Page 1
